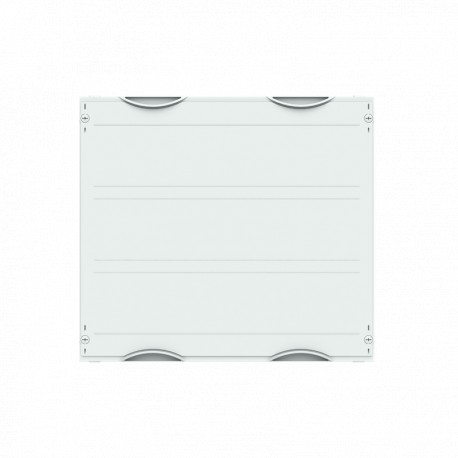

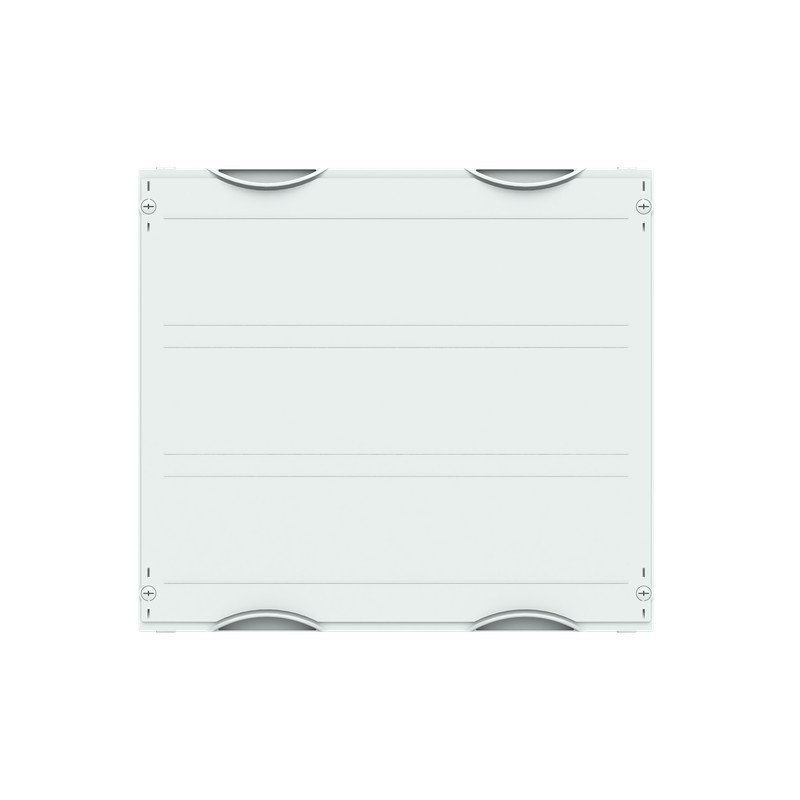

2CPX041649R9999 ABB MBS228 Emb. 440A, vert. H450xA500, 3Hx2A
2CPX041649R9999
ABB
MBS228 Emb. 440A, vert. H450xA500, 3Hx2A
Busbar system vertical 450 mm x 500 mm x 200 mm , 00 , 2
Energy distribution systems > Distributor assembly busbars
Boxes and cabinets
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Technical | |
|---|---|
| Rated Service Short-Circuit Breaking Capacity (Ics) | 20 kA |
| Busbar Position | Center Central |
| Number of Poles | 4P |
| Enclosure Module Equipment | Excludes Devices |
| Enclosure Mounting Frame | WR or EDF |
| Enclosure Type | Interior fitting module |
| Enclosure Type of Height | 00 |
| Meter Type | " |
| DIN Place Units | 72 |
| Meter Boards | 0 |
| Module Function | Busbar system vertical |
| Electrical | |
| Rated Operational Voltage | Maximum 400 V |
| Operational Voltage | 400 V |
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Current (In) | 440 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Design | |
| Color | Light grey |
| Number of Modules | 72 |
| Material Compliance | |
| RoHS Declaration | 2CPC100019X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20250916 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Dimensions | |
| Product Net Width | 500 mm |
| Product Net Height | 450 mm |
| Product Net Depth / Length | 200 mm |
| Product Net Weight | 4.59 kg |
| Section Width | 2 |
| Built-In Depth (t2) | 200 mm |
| Engineering | |
| EPLAN Data | 9AAF623203_EPLAN |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 4.59 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100019X0201 |
| Installation | |
| Instructions and Manuals | 2CPC112316M5601 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC001896 - Distributor assembly busbars |
| ETIM 10 | EC001896 - Distributor assembly busbars |
| eClass | V11.0 : 27400610 |
| Object Classification Code | U |
| Standards | DIN EN 61439-3 |
| DIN EN 61439-2 | |
| DIN 43673-1 | |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 450 mm |
| Width (EF000008) | 500 mm |
| Depth (EF000049) | 200 mm |
| With cover (EF000361) | Yes |
| Number of poles (EF001391) | 4 |
| Busbar distance (EF002638) | 40 mm |
| Rail height (EF002639) | 30 mm |
| Busbar thickness (EF002640) | 5 mm |
| Max. rated current (EF007926) | 440 A |
| Short-circuit breaking capacity (Icw) (EF002562) | 20 kA |
| Busbar position (EF009592) | Centre central |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB ELECTRICAL CONSUMER EN.pdf | 14 Mbytes |
|
| 2CPX041649R9999 2CPX041649R9999 EN_2CPX041649R9999.pdf | 262 Kbytes |
|
