ABBBoxes and cabinets2CPX041648R9999 ABB MBS128 Emb. 440A, vert. H300xA250, 2Hx1A

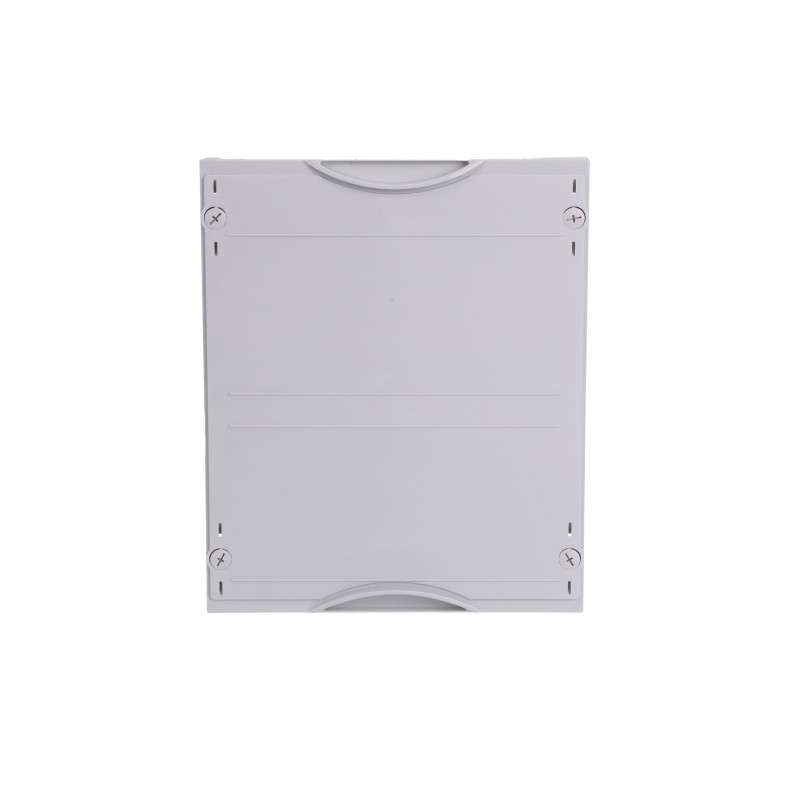

ABB 2CPX041648R9999 2CPX041648R9999 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2CPX041648R9999 ABB MBS128 Emb. 440A, vert. H300xA250, 2Hx1A

Reference: 2CPX041648R9999

Manufacturer: ABB

Description:

MBS128 Emb. 440A, vert. H300xA250, 2Hx1A
Busbar system vertical 300 mm x 250 mm x 200 mm , 000 , 1

Categories:

  • Energy distribution systems > Distributor assembly busbars
  • ABB > Boxes and cabinets

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 151,94 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 7-8 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Technical
Rated Service Short-Circuit Breaking Capacity (Ics)20 kA
Busbar PositionCenter Central
Number of Poles4P
Enclosure Module EquipmentExcludes Devices
Enclosure Mounting FrameWR or EDF
Enclosure TypeInterior fitting module
Enclosure Type of Height000
Meter Type"
DIN Place Units24
Meter Boards0
Module FunctionBusbar system vertical
Electrical
Rated Operational VoltageMaximum 400 V
Operational Voltage400 V
Rated Insulation Voltage (Ui)690 V
Rated Impulse Withstand Voltage (Uimp)6 kV
Rated Current (In)440 A
Rated Short-time Withstand Current Low Voltage (Icw)20 kA
Design
ColorLight grey
Number of Modules24
Material Compliance
RoHS Declaration2CPC100019X0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20250916
REACH Declaration2CPC100005X0201
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240902
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Dimensions
Product Net Width250 mm
Product Net Height300 mm
Product Net Depth / Length200 mm
Product Net Weight2.492 kg
Section Width1
Built-In Depth (t2)200 mm
Engineering
EPLAN Data9AAF623203_EPLAN
Ordering
Package Level 1 Unitspack 1 piece
Package Level 1 Gross Weight2.6 kg
Certificates and Declarations
Declaration of Conformity - CE2CPC100019X0201
Installation
Instructions and Manuals2CPC112316M5601
Popular Downloads
Data Sheet, Technical Information2CPC000001C0101
2CPC000002C0101
External Classifications and Standards
ETIM 9EC001896 - Distributor assembly busbars
ETIM 10EC001896 - Distributor assembly busbars
eClassV11.0 : 27400610
Object Classification CodeU
StandardsDIN EN 61439-3
DIN EN 61439-2
DIN 43673-1

ETIM for 2CPX041648R9999 Power distribution systems (EC001896)

Feature nameHeight (EF000040)
Feature value300 mm
Feature nameWidth (EF000008)
Feature value250 mm
Feature nameDepth (EF000049)
Feature value200 mm
Feature nameWith cover (EF000361)
Feature valueYes
Feature nameNumber of poles (EF001391)
Feature value4
Feature nameBusbar distance (EF002638)
Feature value40 mm
Feature nameRail height (EF002639)
Feature value30 mm
Feature nameBusbar thickness (EF002640)
Feature value5 mm
Feature nameMax. rated current (EF007926)
Feature value440 A
Feature nameShort-circuit breaking capacity (Icw) (EF002562)
Feature value20 kA
Feature nameBusbar position (EF009592)
Feature valueCentre central
