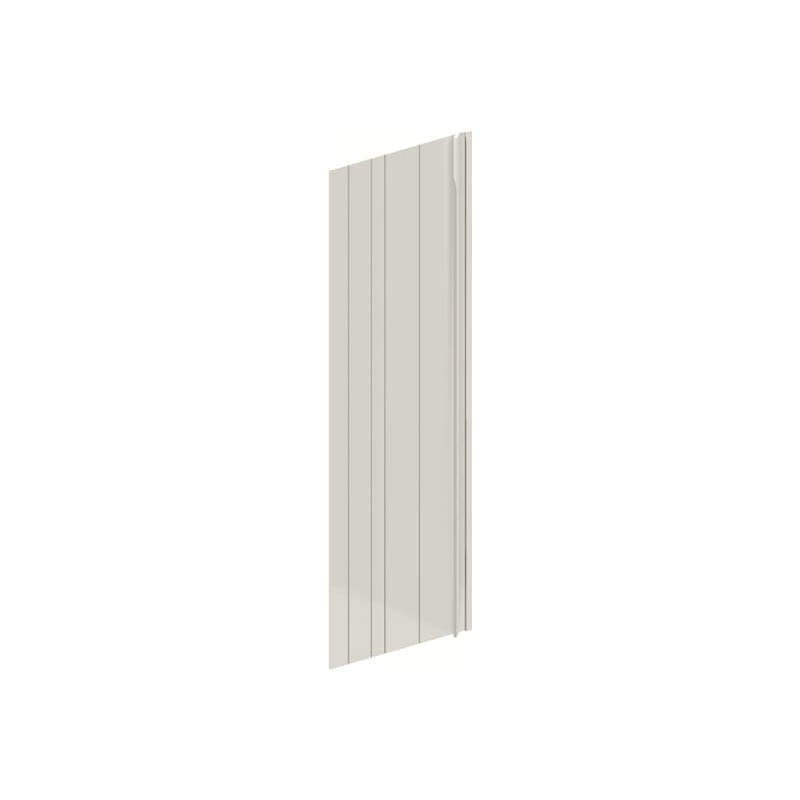

2CPX039073R9999 ABB ZX73 Vertical Plastic Separation 7H (1050)
2CPX039073R9999
ABB
ZX73 Vertical Plastic Separation 7H (1050)
Interior fitting system, 1050 mm x 114.5 mm x 1000 mm
Distribution boards > Separation plate for meter-/distribution boards
Boxes and cabinets
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Technical | |
|---|---|
| Suitable For | 1/3A 1/3B 1/3U 2/3A 2/3B 2/3U 3/3A 3/3B 3/3U 4/3A 4/3B 4/3U 5/3A 5/3B 5/3U AT72K AT73K AT73R6 AT73TR6 U72K U73K U73R6 U73TR6 |
| Enclosure Type | Interior fitting system |
| DIN Place Units | 0 |
| Meter Boards | 1 |
| Design | |
| Surface Finishing | Untreated |
| Material | Plastic |
| RAL Number | RAL 7035 - Light Grey |
| Color | Light grey |
| Material Compliance | |
| RoHS Declaration | 2CPC100019X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20240903 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Dimensions | |
| Product Net Width | 114.5 mm |
| Product Net Height | 1050 mm |
| Product Net Depth / Length | 1000 mm |
| Product Net Weight | 0.27 kg |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 0.281 kg |
| E-Number (Norway) | 2438825 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100019X0201 |
| Installation | |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC000770 - Separation plate for meter-/distribution boards |
| ETIM 10 | EC000770 - Separation plate for meter-/distribution boards |
| eClass | V11.0 : 27142412 |
| Object Classification Code | U |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 1050 mm |
| Width (EF000008) | 114.5 mm |
| Material (EF002169) | Plastic |
| Surface protection (EF000139) | Untreated |
| With connector openings (EF001132) | No |
| Arc-proof (EF009409) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB ELECTRICAL CONSUMER EN.pdf | 14 Mbytes |
|
| 2CPX039073R9999 2CPX039073R9999 EN_2CPX039073R9999.pdf | 74 Kbytes |
|
