ABBBoxes and cabinets2CPX039071R9999 ABB ZX71 Plastic Vertical Separation 5H (750)

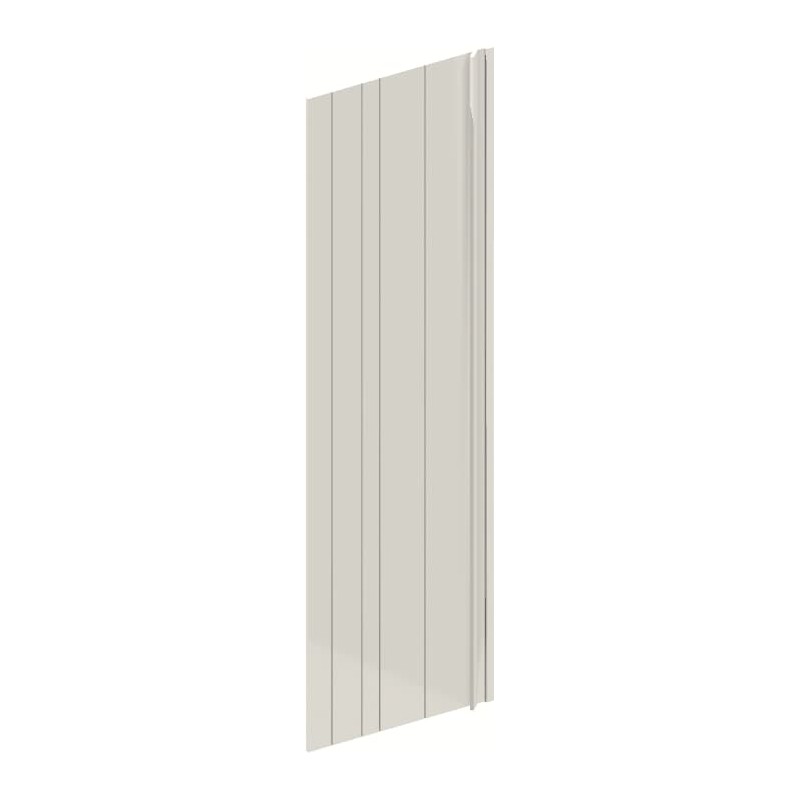

ABB 2CPX039071R9999 2CPX039071R9999 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2CPX039071R9999 ABB ZX71 Plastic Vertical Separation 5H (750)

Reference: 2CPX039071R9999

Manufacturer: ABB

Description:

ZX71 Plastic Vertical Separation 5H (750)
Interior fitting system, 750 mm x 114.5 mm x 750 mm

Categories:

  • Distribution boards > Separation plate for meter-/distribution boards
  • ABB > Boxes and cabinets

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 5,62 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Technical
Suitable For1/1A 1/1B 1/1U 2/1A 2/1B 2/1U 3/1A 3/1B 3/1U 4/1A 4/1B 4/1U 5/1A 5/1B AL52 AL53 AL54 AT52/2 AT52K AT53 AT53K AT53M AT53R4 AT53TR4 AT54E AT54K AT54R4 AT54TR4 TA52 TA53 TA54 TU52 TU53 TU54 U52/2 U52K U53K U53M U53R4 U53TR4 U54E U54K U54R4 U54TR4 UL52 UL53 U_x0013_Ǜ粑
Enclosure TypeInterior fitting system
Meter Type"
DIN Place Units0
Meter Boards1
Design
Surface FinishingUntreated
MaterialPlastic
RAL NumberRAL 7035 - Light Grey
ColorLight grey
Material Compliance
RoHS Declaration2CPC100019X0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20250916
REACH Declaration2CPC100005X0201
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240902
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
Dimensions
Product Net Width114.5 mm
Product Net Height750 mm
Product Net Depth / Length750 mm
Product Net Weight0.18 kg
Ordering
Package Level 1 Unitspack 1 piece
Package Level 1 Gross Weight0.187 kg
E-Number (Norway)2438795
Certificates and Declarations
Declaration of Conformity - CE2CPC100019X0201
Installation
Popular Downloads
Data Sheet, Technical Information2CPC000001C0101
2CPC000002C0101
External Classifications and Standards
ETIM 9EC000770 - Separation plate for meter-/distribution boards
ETIM 10EC000770 - Separation plate for meter-/distribution boards
eClassV11.0 : 27142412
Object Classification CodeU

ETIM for 2CPX039071R9999 Distribution boards (EC000770)

Feature nameHeight (EF000040)
Feature value750 mm
Feature nameWidth (EF000008)
Feature value114.5 mm
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameWith connector openings (EF001132)
Feature valueNo
Feature nameArc-proof (EF009409)
Feature valueNo

DATASHEET - PDF

Title
Size
Type
2CPX039071R9999 2CPX039071R9999 EN_2CPX039071R9999.pdf
199 Kbytes
PDF CATALOG ABB ELECTRICAL CONSUMER EN
14 Mbytes
