ABBAutomation and Control enclosures2CPX038228R9999 ABB ZA5 Circuit Diagram Pocket A5

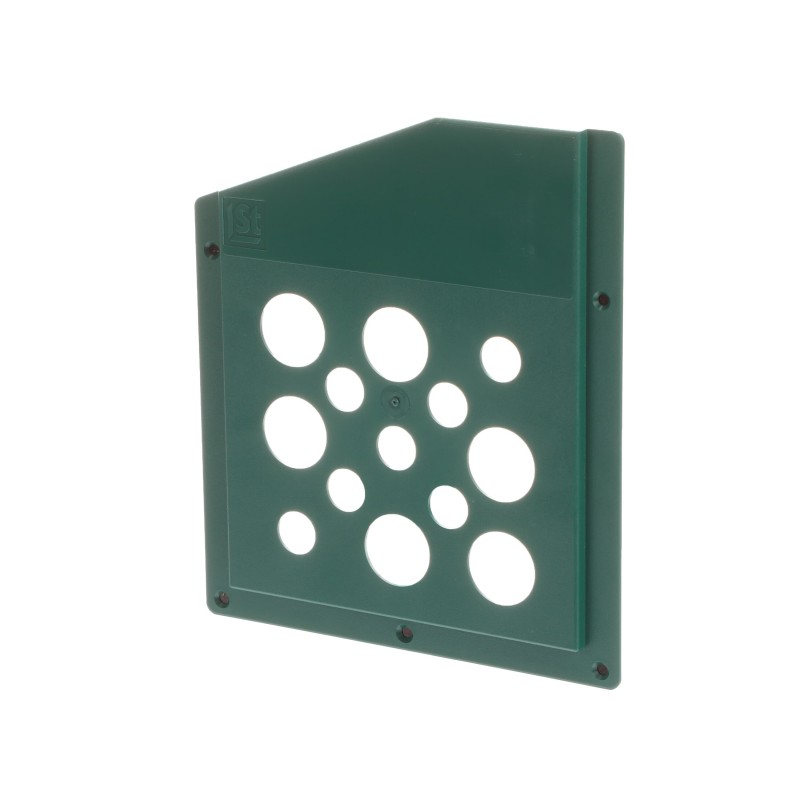

ABB 2CPX038228R9999 2CPX038228R9999 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2CPX038228R9999 ABB ZA5 Circuit Diagram Pocket A5

Reference: 2CPX038228R9999

Manufacturer: ABB

Description:

ZA5 Circuit Diagram Pocket A5
ZA5 Self-adhesive Plane Holder A5
Enclosure accessories, 222 mm x 192.5 mm x 8 mm

Categories:

  • Cabinet enclosures > Document holder (switchgear cabinet)
  • ABB > Automation and Control enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 22,48 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 7-8 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Technical
Suitable For1/00A 1/00B 1/0A 1/0B 1/10R3 1/10R4 1/10R6 1/10RG3 1/10RG4 1/10RG6 1/1A 1/1B 1/1U 1/2A 1/2B 1/2FS 1/2U 1/3A 1/3B 1/3FS 1/3U 1/4A 1/4B 1/4U 1/5A 1/5B 1/5U 1/81C 1/82C 1/8C 1/8FS 1/8HS 1/8R3 1/8R4 1/8R6 1/8RG3 1/8RG4 1/8RG6 1/8W 1/8WS 1/8WSO 2/00A 2/00B 2/0_x0013_Ǜ粑_xDC84__x0013_粐Ȩ粑_xFFFF__xFFFF_Ȣ粑ƛ粑Ǜ粑_xDD50__x0013_඘༁
Model NumberWiring diagram pocket
Enclosure TypeEnclosure accessories
Meter Type"
Accessories AvailableNo
DIN Place Units0
Meter Boards1
Number of Batteries0
Design
MaterialPlastic
RAL NumberRAL 6005 - Moss Green
Material Compliance
RoHS Declaration2CPC100021X0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20250919
REACH Declaration2CPC100005X0201
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240902
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
Dimensions
Product Net Width192.5 mm
Product Net Height222 mm
Product Net Depth / Length8 mm
Product Net Weight0.08 kg
Ordering
Package Level 1 Unitspack 1 piece
Package Level 1 Gross Weight0.083 kg
Certificates and Declarations
Declaration of Conformity - CE2CPC100021X0201
Installation
Popular Downloads
Data Sheet, Technical Information2CPC000001C0101
2CPC000002C0101
2CPC000377C0101
External Classifications and Standards
ETIM 9EC000317 - Document holder (enclosure/cabinet)
ETIM 10EC000317 - Document holder (enclosure/cabinet)
eClassV11.0 : 27182801
Object Classification CodeU
