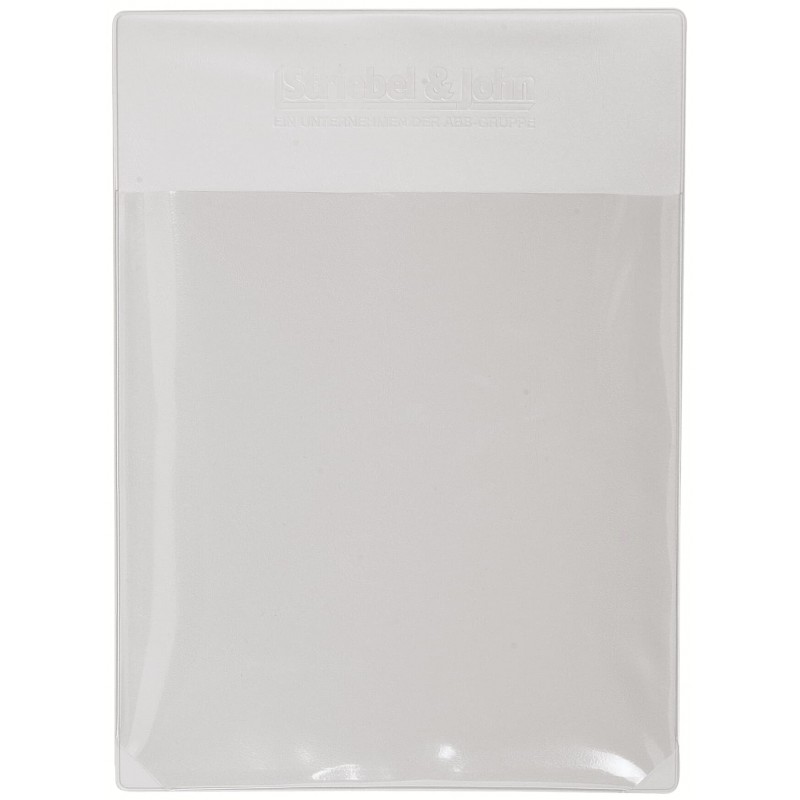

ABB 2CPX038227R9999 2CPX038227R9999 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2CPX038227R9999 ABB ZA6 Circuit Diagram Pocket A4

Reference: 2CPX038227R9999

Manufacturer: ABB

Description:

ZA6 Circuit Diagram Pocket A4

ZA6 A4 Plane Holder for U/AT, E Energy43

Enclosure accessories, 297 mm x 210 mm x 3 mm

Categories:

Cabinet enclosures > Document holder (switchgear cabinet)
ABB > Automation and Control enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

More Info
Reviews

Guarantee, repair and return.

Unit Price: 13,32 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 7-8 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

Technical
Suitable For	1/10R3 1/10R4 1/10R6 1/10RG3 1/10RG4 1/10RG6 1/2FS 1/2G 1/3FS 1/81C 1/81G 1/82C 1/8C 1/8FS 1/8G 1/8H 1/8HS 1/8R3 1/8R4 1/8R6 1/8RG3 1/8RG4 1/8RG6 1/8W 1/8WS 1/8WSO 2/00A 2/00B 2/0A 2/0B 2/0C 2/0FS 2/0G 2/10R3 2/10R4 2/10R6 2/10R8 2/10RG3 2/10RG4 2/10RG6 2_x0013_Ǜ粑_xDC84__x0013_粐Ȩ粑_xFFFF__xFFFF_Ȣ粑ƛ粑Ǜ粑_xDD50__x0013_඘༁
Model Number	Wiring diagram pocket
Enclosure Type	Enclosure accessories
Meter Type	"
Accessories Available	No
DIN Place Units	0
Meter Boards	1
Number of Batteries	0
Design
Material	Plastic
RAL Number	RAL 7035 - Light Grey
Material Compliance
RoHS Declaration	2CPC100021X0201
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date	20250919
REACH Declaration	2CPC100005X0201
REACH Information	False - does not contain substances > 0.1 mass percentage
REACH Date	20240902
Conflict Minerals Reporting Template (CMRT)	9AKK108468A3363
WEEE Category	Product Not in WEEE Scope
Dimensions
Product Net Width	210 mm
Product Net Height	297 mm
Product Net Depth / Length	3 mm
Product Net Weight	0.19 kg
Ordering
Package Level 1 Units	pack 1 piece
Package Level 1 Gross Weight	0.198 kg
E-Number (Norway)	2405806
Certificates and Declarations
Declaration of Conformity - CE	2CPC100021X0201
Installation
Popular Downloads
Data Sheet, Technical Information	2CPC000001C0101
	2CPC000002C0101
	2CPC000377C0101
External Classifications and Standards
ETIM 9	EC000317 - Document holder (enclosure/cabinet)
ETIM 10	EC000317 - Document holder (enclosure/cabinet)
eClass	V11.0 : 27182801
Object Classification Code	U

DATASHEET - PDF

Title

Size

Type

PDF CATALOGUE ABB GENERAL ENCLOSURES 2024 EN

138 Mbytes

PDF CATALOGUE ABB IS2 ENCLOSURES 2024 EN

45 Mbytes

PDF CATALOGUE ABB IS2 ENCLOSURES EN

32 Mbytes
