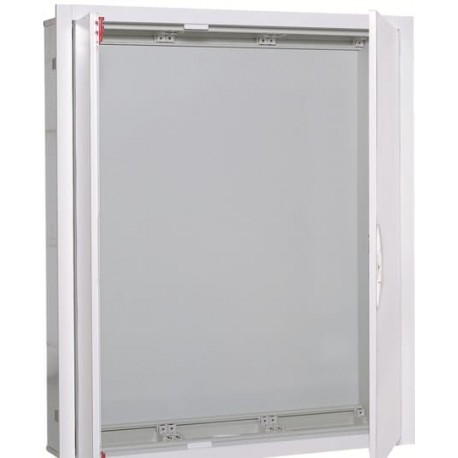

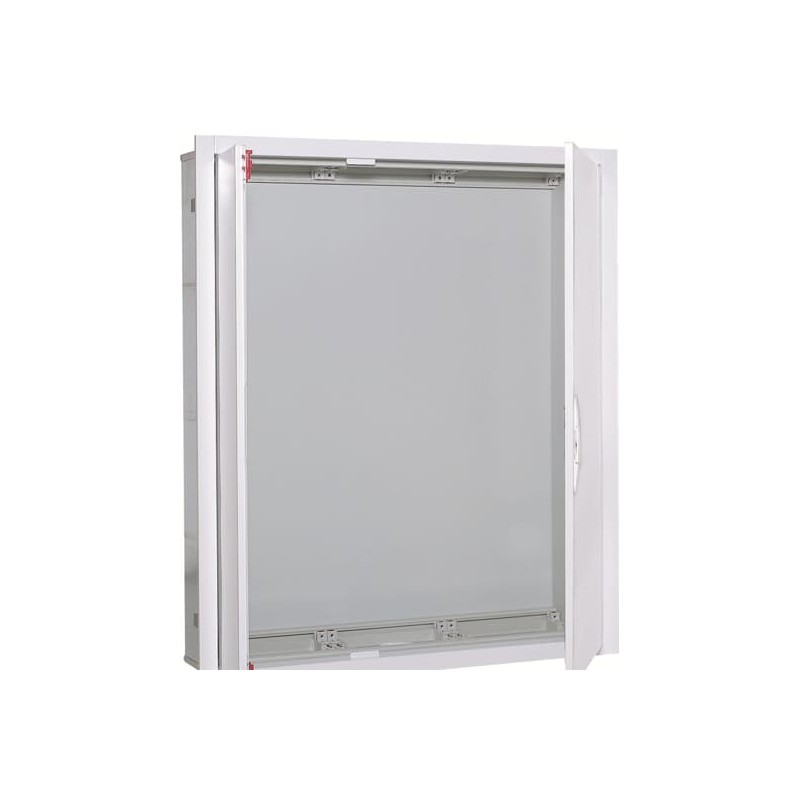

2CPX036233R9999 ABB 3/3U Arm.IP31,1115x815x200(21RU),pta.met
2CPX036233R9999
ABB
3/3U Arm.IP31,1115x815x200(21RU),pta.met
3/3U Wall Cabinet IP30
Boxes and cabinets
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲- Extended Product Type:
- 3/3U
- Product ID:
- 2CPX036233R9999
- EAN:
- 4011617362333
- Catalog Description:
- 3/3U Wall Cabinet IP30
- Long Description:
- Meter board, series U, empty cabinet, for the internal use, with closed doorframe and door, class of protection II (double insulated), degree of protection IP30, IK code 07, powder-coated, in RAL 9016, enclosure out of sheet steel, double door, door out of sheet steel, with Standard locking mechanism ZB113, door opening angle 130 degree, rear wall out of Plastic, cable entry on top via flange opening pre-cut, nippel flange included, on bottom via flange opening pre-cut, nippel flange included, dimensions in mm (H x W x D): 1115 x 815 x 200, Shutter frame dimensions in mm (H x W x D): 1141 x 841 x 11, 11 mm, possible plaster compensation up to 35 mm, Ratchet unit 7 GU, Overall height 3, panel width 3, Space units 252, pre-assembled for installation of metering-, modules, Combi-Sets, CombiLine-Module on EDF-mounting frame
Ordering
- EAN:
- 4011617362333
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85381000
Dimensions
- Product Net Width:
- 815mm
- Product Net Height:
- 1115mm
- Product Net Depth / Length:
- 200mm
- Product Net Weight:
- 32.4kg
Container Information
- Package Level 1 Units:
- pack 1 piece
- Package Level 1 Width:
- 850.000 mm
- Package Level 1 Height:
- 1160.000 mm
- Package Level 1 Depth / Length:
- 233.000 mm
- Package Level 1 Gross Weight:
- 33.696 kg
- Package Level 1 EAN:
- 4011617362333
- Package Level 2 Units:
- pallet (lift) 7 piece
- Package Level 2 Width:
- 845.000 mm
- Package Level 2 Height:
- 1820.000 mm
- Package Level 2 Depth / Length:
- 1200.000 mm
- Package Level 2 Gross Weight:
- 247 kg
Additional Information
- Color:
- 9016
- Degree of Protection:
- IP30
- Design:
- Wall cabinet flush-mount
- DIN Place Units:
- 252
- Enclosure Type:
- Meter board
- Enclosure Type of Height:
- 3
- Field Width:
- 3
- Housing Material:
- Steel plate/plastic
- Interior Depth:
- 200 mm
- Material:
- Steel plate
- Meter Boards:
- 1
- Mounting Position:
- Wall cabinet flush-mount
- Mounting Type:
- Wall cabinet flush-mount
- Niche Depth:
- 200 mm
- Niche Height:
- 1115 mm
- Niche Width:
- 815 mm
- Power Loss:
- Δt = 20K 55.3 W
Δt = 25K 73 W
Δt = 30K 91.6 W
- Product Main Type:
- U
- Product Name:
- 3/3U Wall Cabinet IP30
- Protection Class:
- Isolated
- Rated Current (In):
- 355 A
- Surface Finishing:
- powder-coated
Certificates and Declarations (Document Number)
- Data Sheet, Technical Information:
- 2CPC000001C0101
2CPC000002C0101
2CPC000031C0101
2CPC000187C0101
2CPC000188C0101
- Declaration of Conformity - CE:
- No declaration needed
- Environmental Information:
- 2CPC100001X0201
- Instructions and Manuals:
- 2CPC016967M5601
Classifications
- ETIM 4:
- EC000058 - Empty cabinet
- ETIM 5:
- EC000058 - Empty cabinet
- ETIM 6:
- EC000248 - Unequipped meter cabinet
- ETIM 7:
- EC000248 - Unequipped meter cabinet
- Object Classification Code:
- U
- WEEE Category:
- Product Not in WEEE Scope
