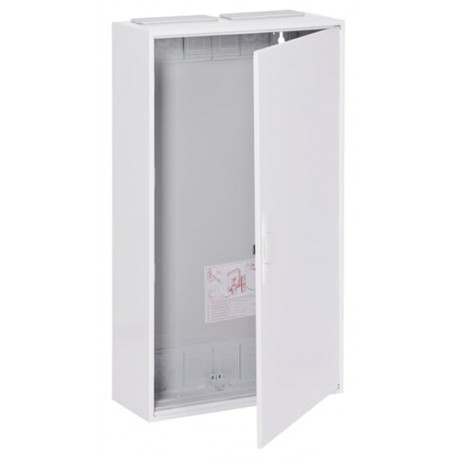

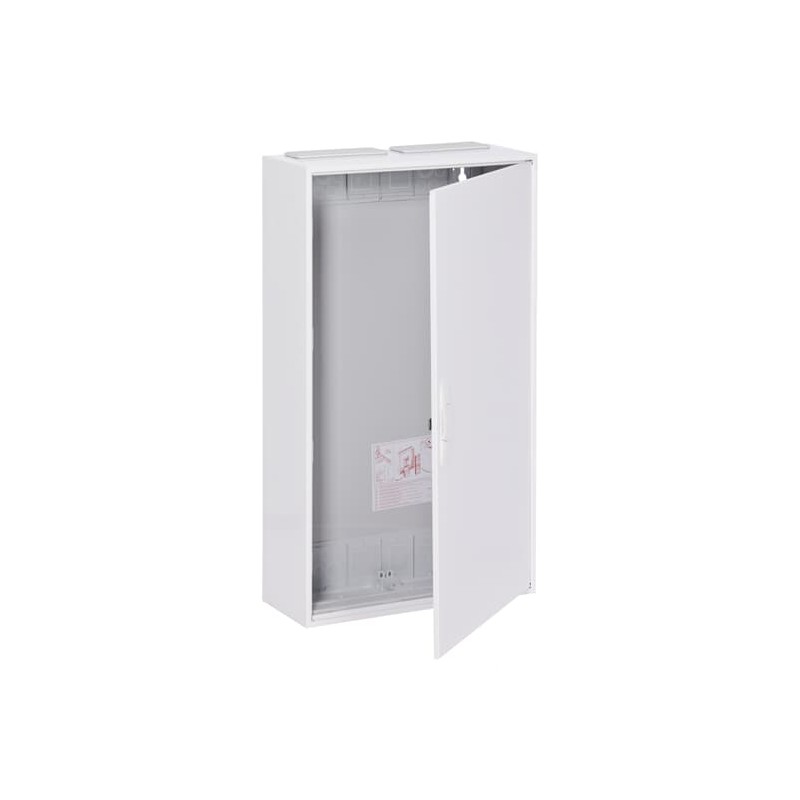

2CPX036061R9999 ABB 1/00A Arm.IP43,500x300x215(3RU),pta.met.
2CPX036061R9999
ABB
1/00A Arm.IP43,500x300x215(3RU),pta.met.
1/00A Wall Cabinet IP43
Boxes and cabinets
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲- Extended Product Type:
- 1/00A
- Product ID:
- 2CPX036061R9999
- EAN:
- 4011617360612
- Catalog Description:
- 1/00A Wall Cabinet IP43
- Long Description:
- Wall-mounting cabinet, series A, empty cabinet, for the internal use, with Door, class of protection II (double insulated), degree of protection IP43, applicable standards: EN 61439-1, IK code 07, powder-coated, in RAL 9016, enclosure out of sheet steel, single-leaf door, door out of sheet steel, with Standard locking mechanism ZB113, door opening angle 130 degree, cable entry on top via membrane flange mounted, on bottom via flange opening pre-cut, one nippel flange included, on side via flange opening pre-punched, dimensions in mm (H x W x D): 500 x 300 x 215, Ratchet unit 3 GU, Overall height 00, panel width 1, Space units 36, pre-assembled for installation of metering-, modules, Combi-Sets, CombiLine-Module on EDF-mounting frame
Ordering
- EAN:
- 4011617360612
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85381000
- Replacement Product ID (NEW):
- 2CPX052010R9999
Dimensions
- Product Net Width:
- 300mm
- Product Net Height:
- 500mm
- Product Net Depth / Length:
- 215mm
- Product Net Weight:
- 7.2kg
Container Information
- Package Level 1 Units:
- pack 1 piece
- Package Level 1 Width:
- 300.000 mm
- Package Level 1 Height:
- 500.000 mm
- Package Level 1 Depth / Length:
- 233.000 mm
- Package Level 1 Gross Weight:
- 7.2 kg
- Package Level 1 EAN:
- 4011617360612
- Package Level 2 Units:
- pallet (lift) 35 piece
- Package Level 2 Width:
- 800.000 mm
- Package Level 2 Height:
- 1770.000 mm
- Package Level 2 Depth / Length:
- 1200.000 mm
- Package Level 2 Gross Weight:
- 272 kg
Additional Information
- Color:
- Traffic white
- Cover Plate Type:
- Door
- Degree of Protection:
- IP43
- Design:
- Wall cabinet top-mount
- DIN Place Units:
- 36
- Enclosure Type:
- Wall-mounting cabinet
- Enclosure Type of Height:
- 0
- Field Width:
- 1
- Housing Material:
- Steel plate/plastic
- Interior Depth:
- 215 mm
- Meter Boards:
- 1
- Mounting Position:
- Wall cabinet top-mount
- Mounting Type:
- Wall cabinet top-mount
- Number of Rows:
- 3
- Power Loss:
- Δt = 20K 28.8 W
Δt = 25K 38 W
Δt = 30K 47.4 W
- Product Main Type:
- A
- Product Name:
- 1/00A Wall Cabinet IP43
- Protection Class:
- Isolated
- Rated Current (In):
- 250 A
- Surface Finishing:
- Powder coating
Certificates and Declarations (Document Number)
- Data Sheet, Technical Information:
- 2CPC000001C0101
2CPC000002C0101
2CPC000031C0101
2CPC000187C0101
2CPC000188C0101
- Declaration of Conformity - CE:
- No declaration needed
- Environmental Information:
- 2CPC100001X0201
- Instructions and Manuals:
- 2CPC131021M5601
2CPC133150M5601
2CPC016446M5601
Classifications
- ETIM 4:
- EC000058 - Empty cabinet
- ETIM 5:
- EC000058 - Empty cabinet
- ETIM 6:
- EC000058 - Empty cabinet
- ETIM 7:
- EC000058 - Empty cabinet
- Object Classification Code:
- U
- WEEE Category:
- Product Not in WEEE Scope
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB ELECTRICAL CONSUMER EN.pdf | 14 Mbytes |
|
| 2CPX036061R9999 EN_2CPX036061R9999.pdf | 202 Kbytes |
|
