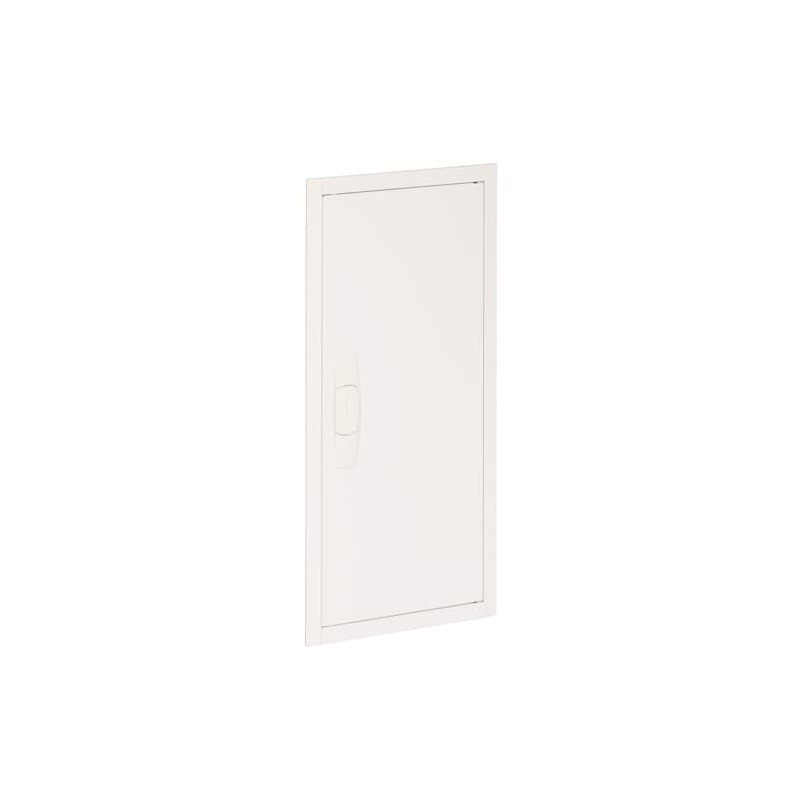

2CPX031501R9999 ABB BLU41 Trim Frame with Door for U41
2CPX031501R9999
ABB
BLU41 Trim Frame with Door for U41
Boxes and cabinets
* Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲- Extended Product Type:
- BLU41
- Product ID:
- 2CPX031501R9999
- EAN:
- 4011617315018
- Catalog Description:
- BLU41 Trim Frame with Door for U41
- Long Description:
- Panel frame with steel sheet door, with standard lock ZB113 for the UL small distributor UL41, powder-coated, color: white, RAL 9016.
Ordering
- EAN:
- 4011617315018
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85389099
Dimensions
- Product Net Width:
- 354mm
- Product Net Height:
- 694mm
- Product Net Depth / Length:
- 27mm
- Product Net Weight:
- 3.4kg
Container Information
- Package Level 1 Units:
- pack 1 piece
- Package Level 1 Width:
- 370.000 mm
- Package Level 1 Height:
- 705.000 mm
- Package Level 1 Depth / Length:
- 56.000 mm
- Package Level 1 Gross Weight:
- 3.536 kg
- Package Level 1 EAN:
- 4011617315018
- Package Level 2 Units:
- 12 piece
- Package Level 2 Width:
- 830 mm
- Package Level 2 Height:
- 1710 mm
- Package Level 2 Depth / Length:
- 1210 mm
Additional Information
- Color:
- White
- Degree of Protection:
- IP31
- DIN Place Units:
- 48
- Enclosure Type:
- Closed cover with door
- Field Width:
- 1
- Material:
- Steel
- Meter Boards:
- 0
- Product Main Type:
- BLU
- Product Name:
- BLU41 Trim Frame with Door for U41
- Suitable For:
- UL41
- Surface Finishing:
- Powder coating
Certificates and Declarations (Document Number)
- Data Sheet, Technical Information:
- 2CPC000001C0101
2CPC000002C0101
2CPC000031C0101
2CPC000187C0101
2CPC000188C0101
- Declaration of Conformity - CE:
- No declaration needed
- Environmental Information:
- 2CPC100001X0201
- Instructions and Manuals:
- 2CPC115213M5601
Classifications
- ETIM 4:
- EC000747 - Door/operating panel (switchgear cabinet)
- ETIM 5:
- EC000747 - Door/operating panel (switchgear cabinet)
- ETIM 6:
- EC000747 - Door/operating panel (switchgear cabinet)
- ETIM 7:
- EC000747 - Door/operating panel (switchgear cabinet)
- Object Classification Code:
- U
- WEEE Category:
- Product Not in WEEE Scope
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB ELECTRICAL CONSUMER EN.pdf | 59 Mbytes |
|
| 2CPX031501R9999 2CPX031501R9999 EN_2CPX031501R9999.pdf | 73 Kbytes |
|
