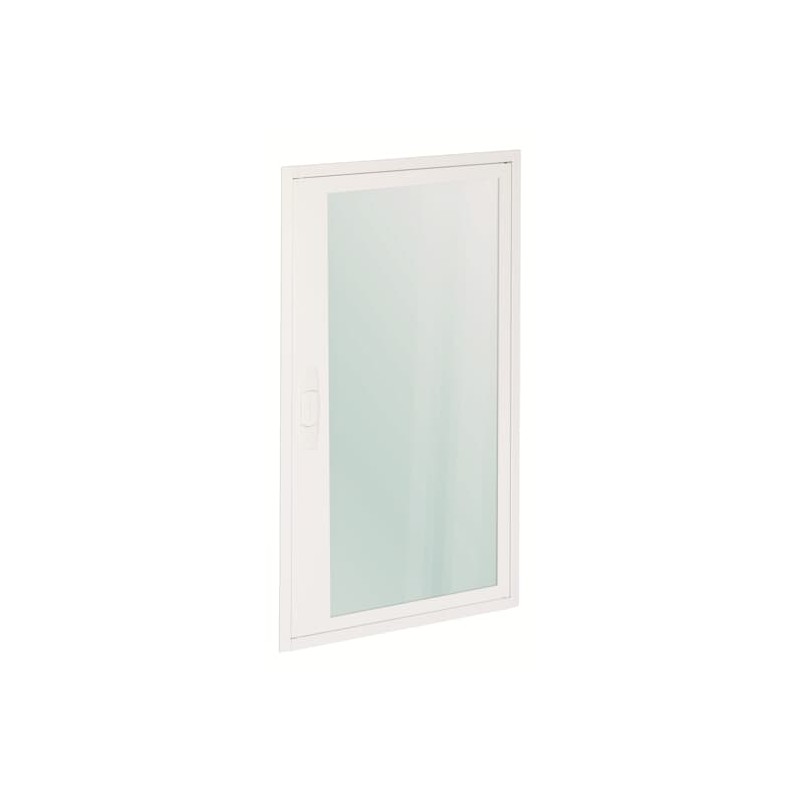

2CPX030794R9999 ABB BLT62 lid with transparent door
2CPX030794R9999
ABB
BLT62 lid with transparent door
BLT62 U Trim frame with door, 144 SU, IP30, Field Width: 2, 994 mm x 604 mm x 27 mm
Boxes and cabinets
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲- Extended Product Type:
- BLT62
- Product ID:
- 2CPX030794R9999
- EAN:
- 4011617307945
- Catalog Description:
- BLT62 U Trim frame with door, 144 SU, IP30, Field Width: 2, 994 mm x 604 mm x 27 mm
- Long Description:
- Panel frame with transparent door, with standard lock ZB113 for the UL small distributor UL62, powder-coated, color: white, RAL 9016.
Technical
- Suitable For:
- UL62
- Enclosure Type:
- Closed cover with door
- Surface Finishing:
- Powder coating
- Material:
- Other
- DIN Place Units:
- 144
- Meter Boards:
- 0
- Model Number:
- Protective door
- Color:
- White
- Thickness:
- "
Environmental
- Degree of Protection:
- IP30
- RoHS Status:
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Dimensions
- Product Net Width:
- 604mm
- Product Net Height:
- 994mm
- Product Net Depth / Length:
- 27mm
- Product Net Weight:
- 3.422kg
Container Information
- Package Level 1 Units:
- pack 1 piece
- Package Level 1 Width:
- 620 mm
- Package Level 1 Height:
- 1005 mm
- Package Level 1 Depth / Length:
- 56 mm
- Package Level 1 Gross Weight:
- 3.559 kg
- Package Level 1 EAN:
- 4011617307945
Ordering
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85389099
- Country of Origin:
- Germany (DE)
Certificates and Declarations (Document Number)
- Declaration of Conformity - CE:
- 9AKK107992A8144
- Instructions and Manuals:
- No document needed
- REACH Declaration:
- 2CPC100005X0201
- RoHS Information:
- 9AKK107992A8144
Popular Downloads
- Data Sheet, Technical Information:
- 2CPC000001C0101
2CPC000002C0101
2CPC000377C0101
- Instructions and Manuals:
- No document needed
Classifications
- ETIM 7:
- EC000747 - Door/operating panel (switchgear cabinet)
- ETIM 8:
- EC000747 - Door/operating panel (enclosure/cabinet)
- EPLAN Catalog Tree:
- Mechanics / Housings / Door
- WEEE Category:
- Product Not in WEEE Scope
- CN8:
- 85389099
- eClass:
- V11.0 : 27182204
- Object Classification Code:
- U
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB ELECTRICAL CONSUMER EN.pdf | 14 Mbytes |
|
| 2CPX030794R9999 2CPX030794R9999 EN_2CPX030794R9999.pdf | 89 Kbytes |
|
