> ABB>Boxes and cabinets>2CPX030102R9999 ABB U42 Dist. Board FM 4R. IP31
Previous Product Next Product

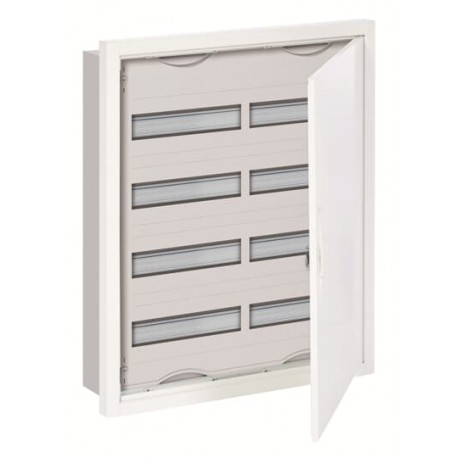

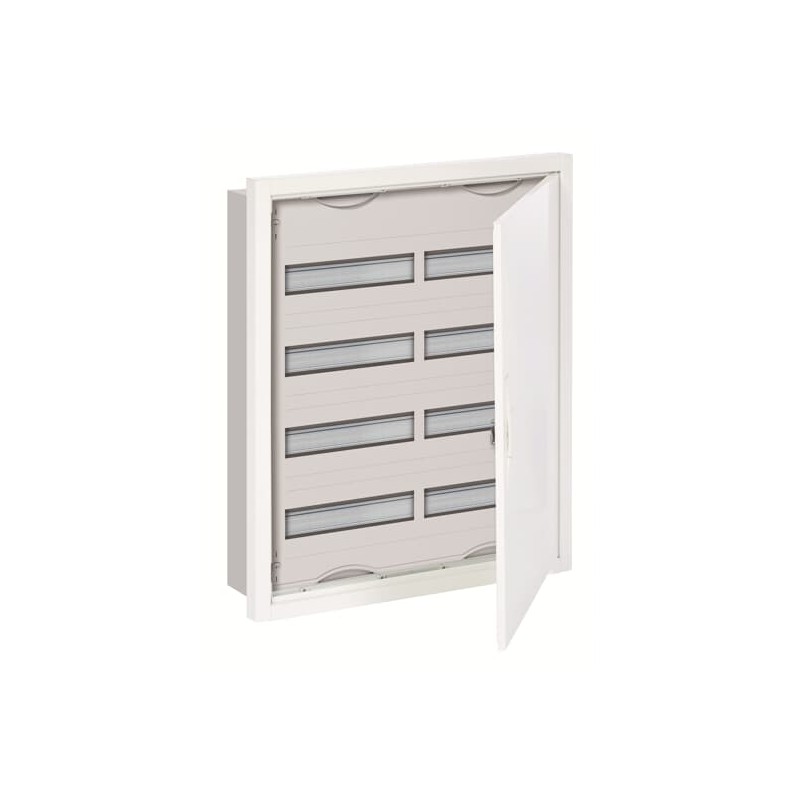

2CPX030102R9999 ABB U42 Dist. Board FM 4R. IP31 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

2CPX030102R9999 ABB U42 Dist. Board FM 4R. IP31

2CPX030102R9999

ABB

U42 Dist. Board FM 4R. IP31

More details


Boxes and cabinets

* Brand new product in its original packaging covered by the warranties and certifications provided by ABB

Total price: $285.69
Unit price: $285.69

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


  • Extended Product Type:
    U42
  • Product ID:
    2CPX030102R9999
  • EAN:
    4011617301028
  • Catalog Description:
    U42 Dist. Board FM 4R. IP31
  • Long Description:
    compact distribution boards, series U, partly assembled cabinet, for the internal use, with closed doorframe and door, class of protection II (double insulated), in combination with earthing set (accessory) we can achieve protection class 1, degree of protection IP31, applicable standards: EN 61439-1, EN 61439-3, Rated operational voltage 400V AC 50/60 Hz, rated current 125 A, powder-coated, in RAL 9016, enclosure out of sheet steel, metal door , door out of sheet steel, in RAL 9016, with Standard closure, door opening angle 130 degree, door hinge right or left, cable entry on top via nippel flange included, on bottom via flange opening pre-punched, dimensions in mm (H x W x D): 684 x 560 x 120, Shutter frame dimensions in mm (H x W x D): 694 x 604 x 27, Ratchet unit 4 GU, panel width 2, 4-rows, Space units 96, Row distance in mm: 125, covers out of Plastic, 90 degree press and turn closure, RAL 7035, with N/PE Quick-terminal, cable fastening rail integrated, expanded with distributor fields, device support removable

Ordering

  • EAN:
    4011617301028
  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85381000

Dimensions

  • Product Net Width:
    560mm
  • Product Net Height:
    684mm
  • Product Net Depth / Length:
    120mm
  • Product Net Weight:
    16.124kg

Container Information

  • Package Level 1 Units:
    pack 1 piece
  • Package Level 1 Width:
    630.000 mm
  • Package Level 1 Height:
    720.000 mm
  • Package Level 1 Depth / Length:
    165.000 mm
  • Package Level 1 Gross Weight:
    16.848 kg
  • Package Level 1 EAN:
    4011617301028
  • Package Level 2 Units:
    pallet (lift) 14 piece
  • Package Level 2 Width:
    800.000 mm
  • Package Level 2 Height:
    1500.000 mm
  • Package Level 2 Depth / Length:
    1200.000 mm
  • Package Level 2 Gross Weight:
    247 kg

Additional Information

  • Color:
    Traffic white
  • Cover Plate Type:
    Door
  • Degree of Protection:
    IP31
  • Design:
    Wall cabinet flush-mount
  • DIN Place Units:
    96
  • Enclosure Type:
    compact distribution boards
  • Field Width:
    2
  • Housing Material:
    Steel
  • Interior Depth:
    120 mm
  • Meter Boards:
    0
  • Mounting Position:
    Wall cabinet flush-mount
  • Mounting Type:
    Wall cabinet flush-mount
  • Niche Depth:
    120 mm
  • Niche Height:
    700 mm
  • Niche Width:
    575 mm
  • Number of Rows:
    4
  • Power Loss:
    Δt = 20K 40.1 W
    Δt = 25K 53 W
    Δt = 30K 66.5 W
  • Product Main Type:
    U
  • Product Name:
    U42 Dist. Board FM 4R. IP31
  • Protection Class:
    Isolated
  • Rated Current (In):
    125 A
  • Rated Operational Voltage:
    Maximum 400 V

Certificates and Declarations (Document Number)

Classifications

  • ETIM 4:
    EC000214 - Small distribution board
  • ETIM 5:
    EC000214 - Small distribution board
  • ETIM 6:
    EC000214 - Small distribution board
  • ETIM 7:
    EC000214 - Small distribution board
  • Object Classification Code:
    U
  • WEEE Category:
    4. Large Equipment (Any External Dimension More Than 50 cm)

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG ABB ELECTRICAL CONSUMER EN.pdf 59 Mbytes
2CPX030102R9999 2CPX030102R9999 EN_2CPX030102R9999.pdf 209 Kbytes 2CPX030102R9999 2CPX030102R9999 EN_2CPX030102R9999.pdf
