ABBAutomation and Control enclosures2CPX010778R9999 ABB TZ626 Protection frame cab. con.

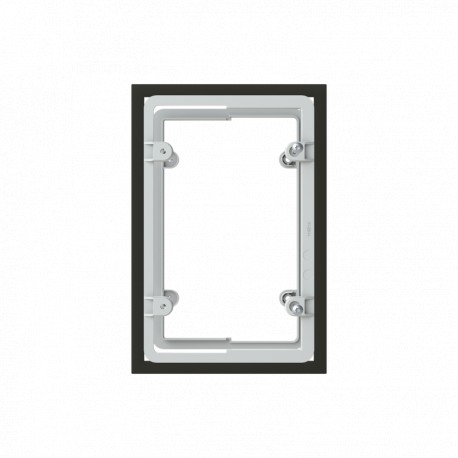

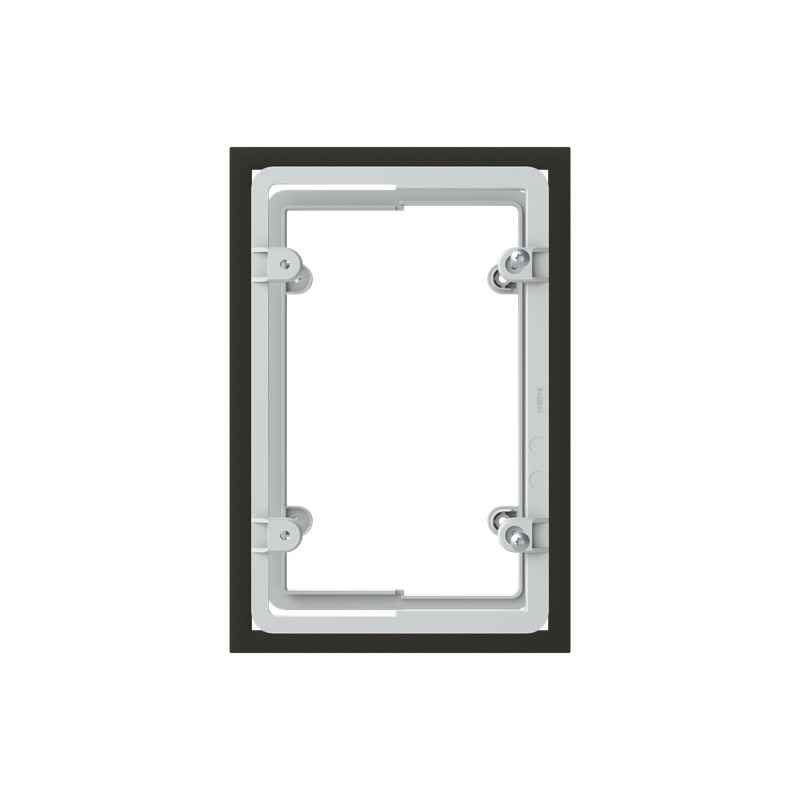

ABB 2CPX010778R9999 2CPX010778R9999 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2CPX010778R9999 ABB TZ626 Protection frame cab. con.

Reference: 2CPX010778R9999

Manufacturer: ABB

Description:

TZ626 Protection frame cab. con.
TZ626 Vertical Union Frame, E Energy S 43
Cabinet connection, 55 mm x 160 mm x 260 mm

Categories:

  • Cabinet enclosures > Component for arrangement / baying system (switchgear cabinet)
  • ABB > Automation and Control enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 28,18 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Technical
Model NumberCoupling piece, side
Enclosure TypeCabinet connection
Meter Type"
Accessories AvailableNo
Design
MaterialPlastic
Colorgrey
Material Compliance
RoHS Declaration2CPC100021X0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20250919
REACH Declaration2CPC100005X0201
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240902
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
Dimensions
Product Net Width160 mm
Product Net Height55 mm
Product Net Depth / Length260 mm
Product Net Weight0.14 kg
Ordering
Package Level 1 Unitspack 1 piece
Package Level 1 Gross Weight0.146 kg
E-Number (Norway)2437650
Certificates and Declarations
Declaration of Conformity - CE2CPC100021X0201
Installation
Instructions and Manuals2CPC119734M5601
Popular Downloads
Data Sheet, Technical Information2CPC000001C0101
2CPC000002C0101
External Classifications and Standards
ETIM 9EC002622 - Components for arrangement/baying system (enclosure/cabinet)
ETIM 10EC002622 - Components for arrangement/baying system (enclosure/cabinet)
eClassV11.0 : 27182813
Object Classification CodeU

ETIM for 2CPX010778R9999 Cabinets and enclosures (EC002622)

Feature nameModel (EF000010)
Feature valueCoupling piece, side
Feature nameWidth (EF000008)
Feature value160 mm
Feature nameHeight (EF000040)
Feature value55 mm
Feature nameDepth (EF000049)
Feature value260 mm
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameColour (EF000007)
Feature valueGrey

DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE ABB GENERAL ENCLOSURES 2024 EN
138 Mbytes
PDF CATALOGUE ABB IS2 ENCLOSURES 2024 EN
45 Mbytes
PDF CATALOGUE ABB IS2 ENCLOSURES EN
32 Mbytes
