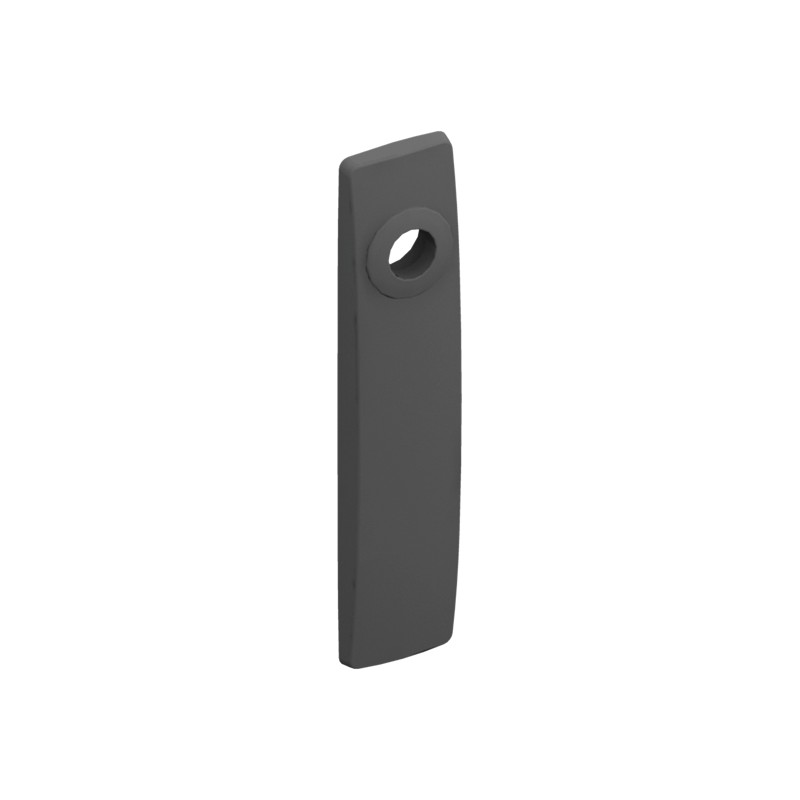

2CPX010492R9999 ABB TZ508 Plate triangle and square locks View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

2CPX010492R9999 ABB TZ508 Plate triangle and square locks

2CPX010492R9999

ABB

TZ508 Plate triangle and square locks

TZ508 Enclosure accessories, 25 mm x 100 mm x 170 mm

More details


Boxes and cabinets

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

Best sellers

More info



  • Extended Product Type:
    TZ508
  • Product ID:
    2CPX010492R9999
  • EAN:
    4011617104926
  • Catalog Description:
    TZ508 Enclosure accessories, 25 mm x 100 mm x 170 mm
  • Long Description:
    Key plate for triangular and rectangular actuating rod, as well as for Daimler-Benz insert, color similar to RAL 9005, suitable for TwinLine wall and standing cabinets as well as ComfortLine wall cabinets and compact distribution boards.
+

Accessories

IdentifierDescriptionTypeQtyUnit Of Measure
2CPX052414R9999
CZT60 ComfortLine Accessory door, 54 mm x 56 mm x 28 mmCZT601piece
2CPX052416R9999
CZT23H ComfortLine Enclosure accessories, 275.5 mm x 29.5 mm x 5 mmCZT23H1piece
2CPX052417R9999
CZT24H ComfortLine Enclosure accessories, 350.5 mm x 29.5 mm x 5 mmCZT24H1piece
2CPX052418R9999
CZT25H ComfortLine Enclosure accessories, 425.5 mm x 29.5 mm x 5 mmCZT25H1piece
2CPX052419R9999
CZT26H ComfortLine Enclosure accessories, 500.5 mm x 29.5 mm x 5 mmCZT26H1piece
2CPX052420R9999
CZT27H ComfortLine Enclosure accessories, 575.5 mm x 29.5 mm x 5 mmCZT27H1piece
2CPX052421R9999
CZT28H ComfortLine Enclosure accessories, 650.5 mm x 29.5 mm x 5 mmCZT28H1piece
2CPX052422R9999
CZT29H ComfortLine Enclosure accessories, 725.5 mm x 29.5 mm x 5 mmCZT29H1piece

Technical

  • Enclosure Type:
    Enclosure accessories
  • Handle Type:
    Other

Environmental

Dimensions

  • Product Net Width:
    100mm
  • Product Net Height:
    25mm
  • Product Net Depth / Length:
    170mm
  • Product Net Weight:
    0.076kg

Container Information

  • Package Level 1 Units:
    pack 1 piece
  • Package Level 1 Width:
    100 mm
  • Package Level 1 Height:
    25 mm
  • Package Level 1 Depth / Length:
    170 mm
  • Package Level 1 Gross Weight:
    0.094 kg
  • Package Level 1 EAN:
    4011617104926

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    39263000
  • Country of Origin:
    Germany (DE)

Certificates and Declarations (Document Number)

Popular Downloads

Classifications

  • ETIM 7:
    EC000327 - Lock system for switchgear cabinet systems
  • ETIM 8:
    EC000327 - Lock system for enclosure/cabinet
  • EPLAN Catalog Tree:
    Mechanics / Housings / Accessories
  • WEEE Category:
    Product Not in WEEE Scope
  • CN8:
    39263000
  • Object Classification Code:
    U

Datasheet - PDF
