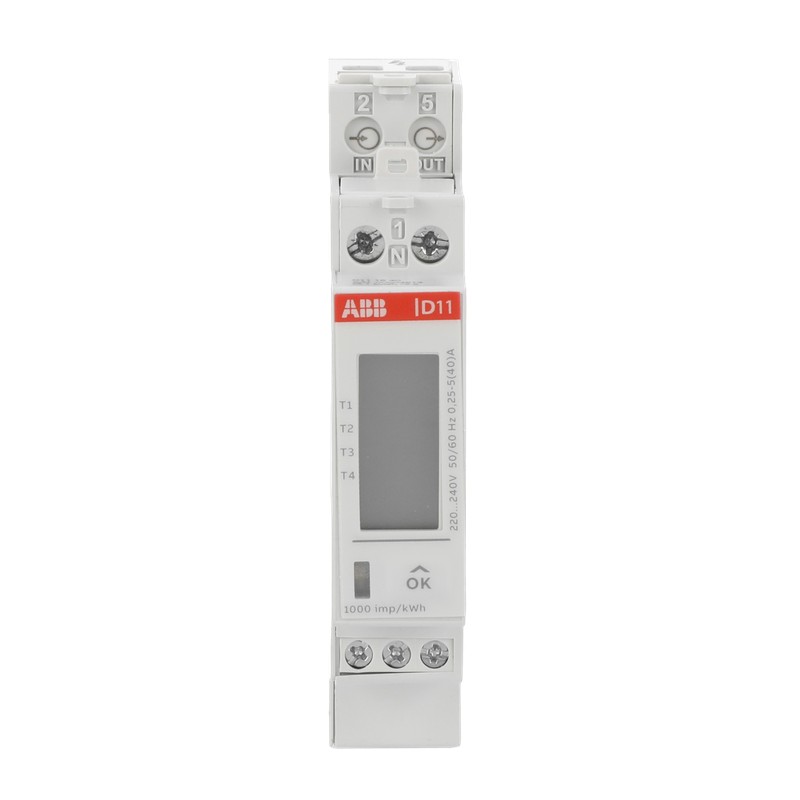

2CMA241655R1000 ABB Ener counter. D11 15 40A
2CMA241655R1000
ABB
Ener counter. D11 15 40A
Energy meter '15', Other, 1-phase, 40 A
Meters > Kilowatt-hour meter
Other modular devices
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| EcoSolutions Profile | 9AKK108469A7385 |
| Material Resource Reduction (wt. %) | Design for Reduced Resource Consumption - 49.4 % |
| Sustainable Material Content in Product (wt. %) | Recycled Metal - 26 % |
| Mechanically Recycled Polymer - 70 % | |
| Recycled Metal - 76 % | |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| Sustainable Material Content in Packaging (wt. %) | FSC Recycled Paperboard - 82 % |
| Improved Energy Efficiency for Customers | Product Efficiency - Product requires less energy to operate compared to similar product on market or older products from the same line |
| Offered with Takeback Services | Take Back for Recycling |
| End Of Life Disassembling Instructions | 9AKK108469A6369 |
| Environmental Product Declaration - EPD | 9AKK108469A4516 |
| Technical | |
| Application | Purchase/supply |
| Function | Electricity meter |
| Sub-Function | 15 |
| Current Rating | 40 A |
| Communication Interface | Other |
| Accuracy | Active Energy Class ±1% |
| Measuring Instrument Conformity | IEC 62053-22 |
| Meter Tariff Control | Internal |
| External | |
| Meter Tariff Rating | Two-Tariff |
| Pulse Output Rate | 1-999999 |
| Model Number | Direct measurement |
| Number of Poles | 1P |
| Number of Phases | 1-phase |
| Number of Counter Positions | 6 |
| Number of Digital In/Outputs | 1 Digital Input, 1 Digital Output |
| Meter Type | Direct connected |
| Pulse Output Type | Electrical |
| Type of Indicator | Digital |
| Number of Batteries | 0 |
| Connecting Capacity Main Circuit | 1 ... 10 mm² |
| Electrical | |
| Rated Voltage (Ur) | 220 ... 240 V |
| Voltage Range | 176...288 V |
| Rated Current (In) | 5 A |
| Maximum 40 A | |
| Frequency (f) | 50 / 60 Hz |
| Rated Frequency (f) | 50 … 60 Hz |
| Power Consumption (@Pcons) | 0.69 W |
| Design | |
| Enclosure Material | Housing and terminal covers: made with at least 70% of recycle plastic Frontal Panel: UV resistant Polyester |
| Material Compliance | |
| RoHS Declaration | 9AKK108469A1600 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20240730 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240521 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... +70 °C |
| Storage -40 ... +85 °C | |
| Degree of Protection | IP20 |
| Dimensions | |
| Width in Number of Modular Spacings | 1 |
| Product Net Width | 17.5 mm |
| Product Net Height | 92 mm |
| Product Net Depth / Length | 65 mm |
| Product Net Weight | 70 g |
| Screen Size | 1 in |
| Ordering | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Gross Weight | 0.0777 kg |
| E-Number (Norway) | 8002566 |
| Installation | |
| Instructions and Manuals | 9AKK108469A1075 |
| Mounting Type | DIN-Rail |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK108468A8828 |
| External Classifications and Standards | |
| ETIM 9 | EC001506 - Kilowatt-hour meter |
| ETIM 10 | EC001506 - Electricity meter |
| eClass | V11.0 : 27142316 |
| Standards | IEC 62052-11 |
| IEC 62052-31 | |
| IEC 62053-21 | |
| IEC 62052-23 | |
| Feature Name | Feature Value |
|---|---|
| Type of meter (EF005441) | Electronic |
| Nominal current (In) (EF008873) | 40 A |
| Max. current (Imax) (EF000877) | 40 A |
| Frequency (EF000416) | 50 Hz |
| Pole type (EF008843) | Single phase |
| Model (EF000010) | Direct measurement |
| Tariff type (EF007550) | Two-tariff |
| Tariff control (EF008834) | Internal/external |
| Pulse output (EF008838) | Electrical |
| Pulse type (EF008839) | S0 |
| Type of indication (EF000306) | Digital |
| Mounting method (EF000003) | DRA (DIN-rail adapter) |
| Width in number of modular spacings (EF002950) | 1 |
| Width (EF000008) | 17.5 mm |
| Depth (EF000049) | 65 mm |
| Height (EF000040) | 92 mm |
| Type of interface (EF006977) | Other |
| With lock code (EF008846) | Yes |
| Number of positions total (counter) (EF004442) | 6 |
| Degree of protection (IP) (EF005474) | IP20 |
