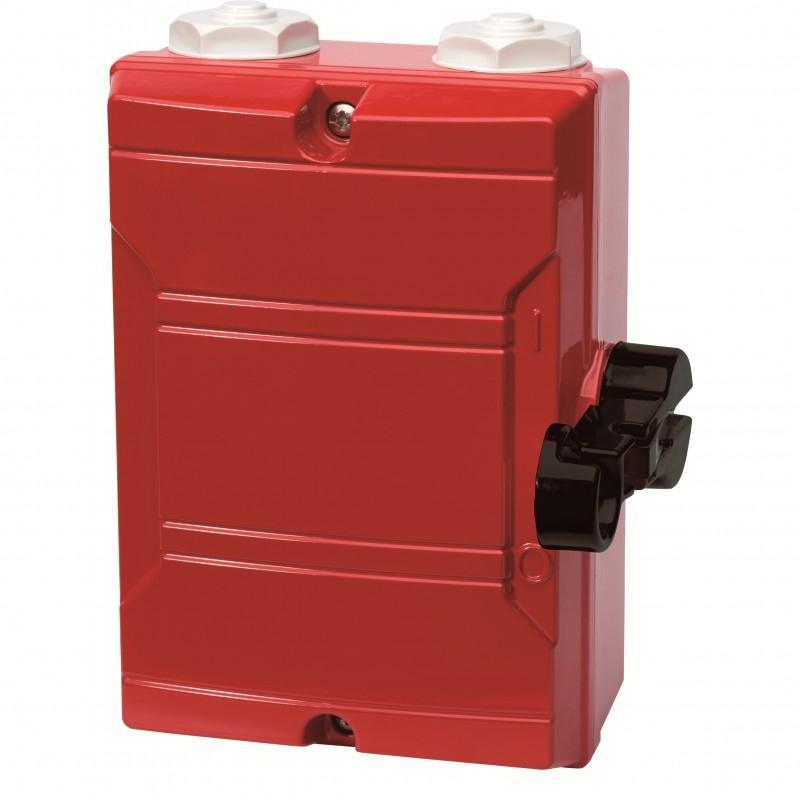

2CMA142435R1000 ABB Int. Boxed disconnector KSF225DP
2CMA142435R1000
ABB
Int. Boxed disconnector KSF225DP
KSF225DP Fireman switch
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | CMC300001D0002 |
| Instructions and Manuals | 9AKK108467A6812 |
| Mechanical Drawings | LBA1R131160DM25.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363030 |
| Country or Territory of Origin | Bulgaria |
| Dimensions | |
| Product Net Width | 111 mm |
| Product Net Height | 130 mm |
| Product Net Depth / Length | 60 mm |
| Product Net Weight | 0.57 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 112 mm |
| Package Level 1 Depth / Length | 131 mm |
| Package Level 1 Height | 62 mm |
| Package Level 1 Gross Weight | 0.57 kg |
| Package Level 1 EAN | 7392696424356 |
| Technical | |
| Cable Cross-Section | 0.75 ... 10 mm² |
| Cable Entry Position | Top and/or Bottom |
| Cable Outlets Per Side | 2xM25 / 2xM25 |
| Connecting Capacity Main Circuit | Screw Clamp 0.75 ... 10 mm² |
| Screw Clamp / PE Terminal 1pc,0.75 ... 10 mm² | |
| Conventional Free-air Thermal Current (Ith) | 25 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 25 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Aluminium |
| Handle Color | Black |
| Handle Type | Side-operated handle |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 1 NO, 0 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | No Neutral Terminal |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 2P |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 690 V |
| Rated Operational Current AC-22A (Ie) | (230 V) 25 A |
| (380 ... 415 V) 25 A | |
| Rated Operational Current AC-23A (Ie) | (230 V) 16 A |
| (380 ... 415 V) 16 A | |
| Rated Operational Power AC-23A (Pe) | (230 V) Single Phase 2.2 kW |
| Rated Operational Voltage | Main Circuit 690 V |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 1.2 N·m |
| Wire Stripping Length | 7 mm |
| Technical UL/CSA | |
| Wire Stripping Length | 7 mm |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Tightening Torque | Main Circuit 1.2 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340062D2702 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| 2CMT005069 | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3601600 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG TRANSFER SWITCHES 2023 EN.pdf | 42 Mbytes |
|
