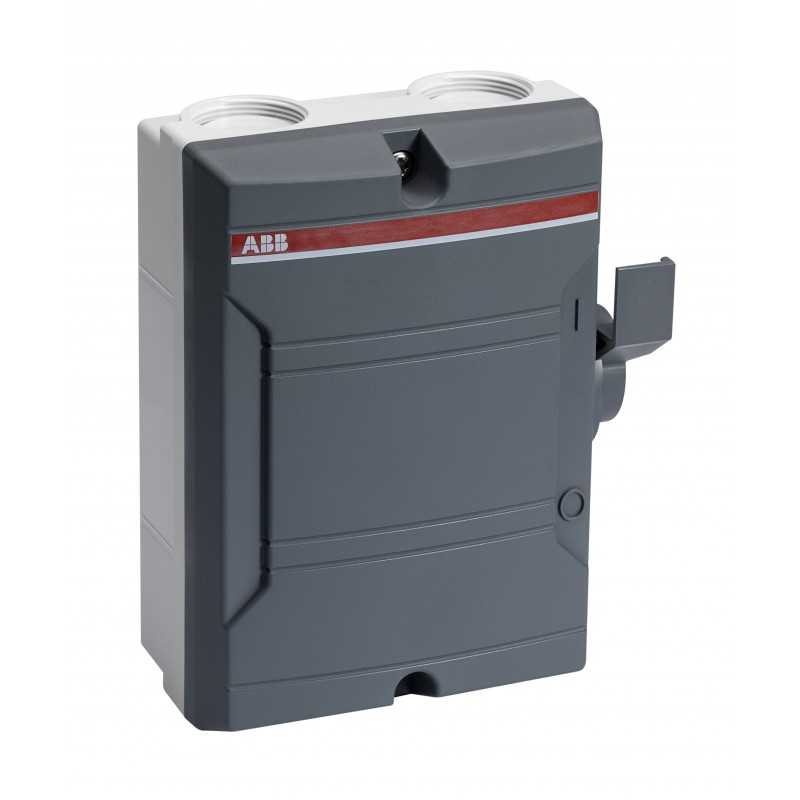

2CMA142421R1000 ABB Int. Boxed disconnector BWS425TPSN
2CMA142421R1000
ABB
Int. Boxed disconnector BWS425TPSN
BWS425TPSN Safety switch
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 9AKK108467A6812 |
| Mechanical Drawings | BAS2161368DM32.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363030 |
| Country or Territory of Origin | Bulgaria |
| Dimensions | |
| Product Net Width | 138 mm |
| Product Net Height | 168 mm |
| Product Net Depth / Length | 68 mm |
| Product Net Weight | 0.42 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 139 mm |
| Package Level 1 Depth / Length | 169 mm |
| Package Level 1 Height | 70 mm |
| Package Level 1 Gross Weight | 0.42 kg |
| Package Level 1 EAN | 7392696424219 |
| Technical | |
| Cable Cross-Section | 0.75 ... 10 mm² |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 2xM32 / 2xM32+M16 |
| Color | RAL7012 / RAL7035 |
| Connecting Capacity Main Circuit | Screw Clamp 0.75 ... 10 mm² |
| Screw Clamp / PE Terminal 1pc,0.75 ... 10 mm² | |
| Conventional Free-air Thermal Current (Ith) | 40 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 32 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Plastic |
| Handle Color | Grey |
| Handle Type | Side-operated handle |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 1 NO, 0 NC |
| Mounted Auxiliary Contacts | 1 NO, 0 NC |
| Neutral Type | Switchable Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Poles | 4P |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 690 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 40 A |
| (500 V) 32 A | |
| (690 V) 32 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 25 A |
| (500 V) 25 A | |
| (690 V) 16 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 11 kW |
| (500 V) 15 kW | |
| (690 V) 11 kW | |
| Rated Operational Voltage | Main Circuit 690 V |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 1.2 N·m |
| Wire Stripping Length | 7 mm |
| Technical UL/CSA | |
| Wire Stripping Length | 7 mm |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Tightening Torque | Main Circuit 1.2 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340062D2702 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| 2CMT005069 | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3601590 |
| E-Number (Norway) | 1428821 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG TRANSFER SWITCHES 2023 EN.pdf | 42 Mbytes |
|
| 2CMA142421R1000 EN_2CMA142421R1000.pdf | 101 Kbytes |
|
