ABBManual Switches2CMA142407R1000 ABB Int. Box Disconnector BW240DP

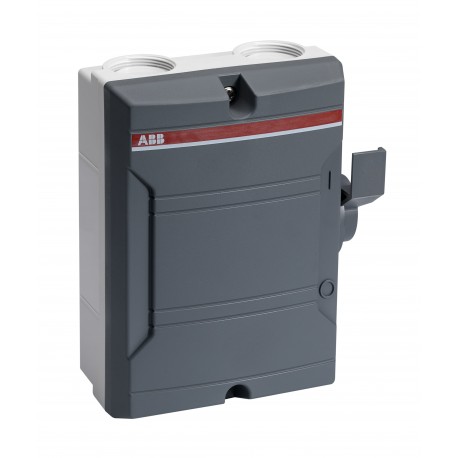

ABB 2CMA142407R1000 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2CMA142407R1000 ABB Int. Box Disconnector BW240DP

Code: 2CMA142407R1000

Manufacturer: ABB

Description:

Int. Box Disconnector BW240DP
BW240DP Enclosed Switch Disconnector

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Total: 324,58 €

Unit Price: 32,458 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC340076D0201
RoHS Declaration1SCC340075D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC340095D0201
Popular Downloads
Data Sheet, Technical Information1SCC340015C0201
Instructions and Manuals9AKK108467A6812
Mechanical DrawingsBAS2161368DM32.stp
Environmental
Degree of Protectionacc. to IEC 60529 IP65
Ordering
Minimum Order Quantity10 piece
Customs Tariff Number85363030
Country or Territory of OriginBulgaria
Dimensions
Product Net Width138 mm
Product Net Height168 mm
Product Net Depth / Length68 mm
Product Net Weight0.39 kg
Container Information
Package Level 1 Unitsten pack 1 piece
Package Level 1 Width275 mm
Package Level 1 Depth / Length350 mm
Package Level 1 Height170 mm
Package Level 1 Gross Weight4.3 kg
Package Level 1 EAN7392696424073
Technical
Cable Cross-Section0.75 ... 10 mm²
Cable Entry PositionTop/Bottom
Cable Outlets Per Side2xM32 / 2xM32+M16
ColorRAL7012 / RAL7035
Connecting Capacity Main CircuitScrew Clamp 0.75 ... 10 mm²
Screw Clamp / PE Terminal 1pc,0.75 ... 10 mm²
Conventional Free-air Thermal Current (Ith)40 A
Conventional Thermal Current (Ithe)Fully Enclosed 40 A
Degree of Protectionacc. to IEC 60529 IP65
Enclosure MaterialPlastic
Handle ColorGrey
Handle TypeSide-operated handle
Impact Resistance RatingHousing IK08
Maximum Mounted Auxiliary Contacts1 NO, 0 NC
Mounted Auxiliary Contacts0 NO, 0 NC
Neutral TypeFixed Neutral
Number of Auxiliary Contacts NC0
Number of Auxiliary Contacts NO0
Number of Poles2P
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 690 V
Rated Operational Current AC-22A (Ie)(230 V) Single Phase 40 A
Rated Operational Current AC-23A (Ie)(230 V) 32 A
Rated Operational Power AC-23A (Pe)(230 V) Single Phase 4.4 kW
Rated Operational VoltageMain Circuit 690 V
Recommended Screw DriverMain Circuit Pozidriv 2
StandardsIEC 60947-1, -3
Tightening TorqueMain Circuit 1.2 N·m
Wire Stripping Length7 mm
Technical UL/CSA
Wire Stripping Length7 mm
Recommended Screw DriverMain Circuit Pozidriv 2
Tightening TorqueMain Circuit 1.2 N·m
Certificates and Declarations
Declaration of Conformity - CE1SCC340062D2702
External Classifications and Standards
Object Classification CodeQ
2CMT005069
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122205
IDEA Granular Category Code (IGCC)5166 >> Safety switch
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

ETIM for 2CMA142407R1000 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueNo
Feature nameVersion as emergency stop installation (EF006959)
Feature valueNo
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameNumber of switches (EF005586)
Feature value1
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value690 V
Feature nameRated operating voltage (EF001435)
Feature value690 V
Feature nameRated permanent current Iu (EF001389)
Feature value40 A
Feature nameNumber of poles (EF001391)
Feature value2
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value0
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value0
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueComplete device in housing
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueYes
Feature nameColour control element (EF007167)
Feature valueGrey
Feature nameType of control element (EF006976)
Feature valueLong turning handle
Feature nameInterlockable (EF006281)
Feature valueYes
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP65
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
