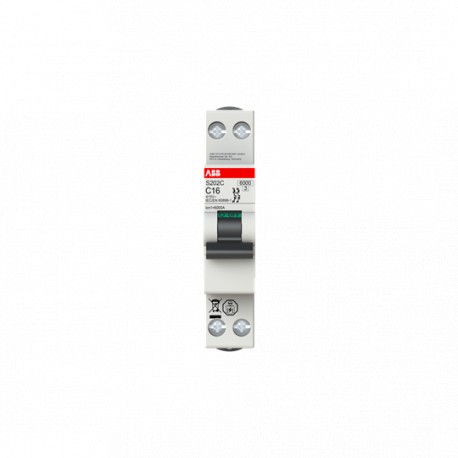

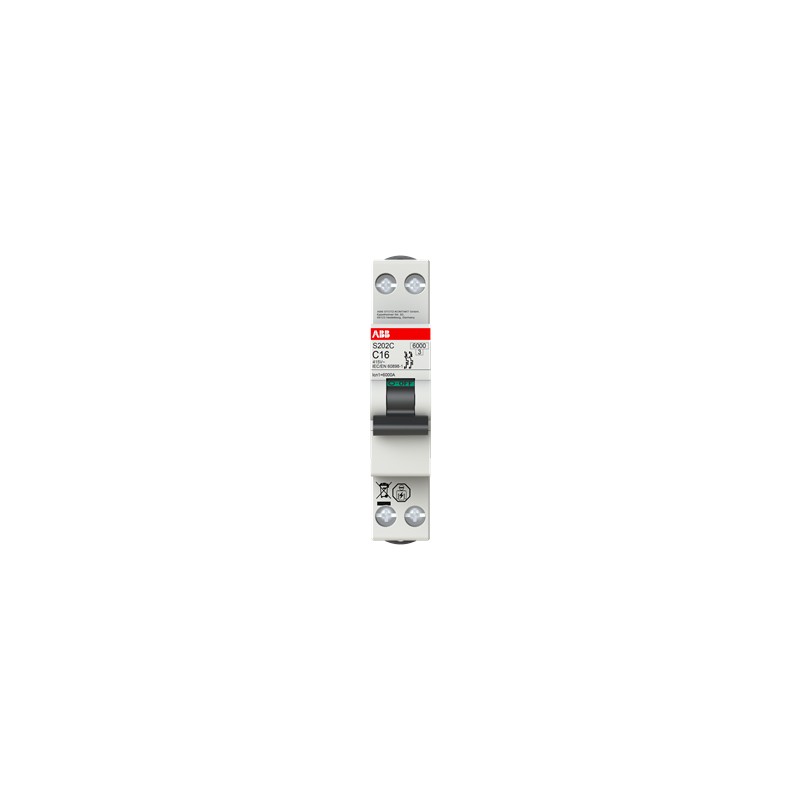

2CDS232280R0024 ABB Int.aut. S202CT-C2 2 2A C 3 kA View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

2CDS232280R0024 ABB Int.aut. S202CT-C2 2 2A C 3 kA

2CDS232280R0024

ABB

Int.aut. S202CT-C2 2 2A C 3 kA

S202CT-C2 Miniature Circuit Breaker C-char.,3kA, 2A, 2P 1M

More details


Industrial

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


b'

General Information

Extended Product Type:
S202CT-C2
Product ID:
2CDS232280R0024
EAN:
4053546042115
Catalog Description:
Miniature Circuit Breakers MCBs - S200C - 2P - C - 2 ampere
Long Description:
S202CT-C2 Miniature Circuit Breaker C-char.,3kA, 2A, 2P 1M
\n

Technical

Standards:
IEC/EN 60898-1
Number of Poles:
2
Number of Protected Poles:
2
Tripping Characteristic:
C
Rated Current (In):
2 A
Rated Operational Voltage:
415 V AC
Power Loss:
2.2 W
Rated Frequency (f):
50 Hz

60 Hz
Rated Short-Circuit Capacity (Icn):
3 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
3 kA
Electrical Endurance:
10000 cycle
Mechanical Endurance (Nendu):
20000 cycle
Connecting Capacity:
Busbar 10 mm²

Flexible 1 ... 10 mm²

Rigid 1 ... 16 mm²
Power Supply Connection:
Arbitrary

Environmental

Ambient Air Temperature:
Operation -25 ... +55 °C

Storage -40 ... +70 °C
RoHS Status:
Following EU Directive 2011/65/EU

Dimensions

Product Net Width:
18 mm
Product Net Depth / Length:
70 mm
Product Net Height:
86 mm
Product Net Weight:
0.16 kg

Container Information

Package Level 1 Units:
carton 12 piece
Package Level 1 Width:
217 mm
Package Level 1 Depth / Length:
80 mm
Package Level 1 Height:
92 mm
Package Level 1 Gross Weight:
1.97 kg
Package Level 1 EAN:
4053546042122

Ordering

Minimum Order Quantity:
12 piece
Customs Tariff Number:
85362010

Certificates and Declarations (Document Number)

Declaration of Conformity - CE:\n9AKK107492A9802
Instructions and Manuals:\nNo document needed
RoHS Information:\n9AKK107492A9802

Popular Downloads

Data Sheet, Technical Information:\n9AKK107492A9936
Instructions and Manuals:\nNo document needed

Classifications

ETIM 6:
EC000042 - Miniature circuit breaker (MCB)
ETIM 7:
EC000042 - Miniature circuit breaker (MCB)
eClass:
7.0 27141901
UNSPSC:
39121614
\n
'

Datasheet - PDF

▲
Title: Size: Type:
PDF MINIATURE CIRCUIT BREAKERS EN .pdf 37 Mbytes
2CDS232280R0024 EN_2CDS232280R0024.pdf 194 Kbytes 2CDS232280R0024 EN_2CDS232280R0024.pdf
