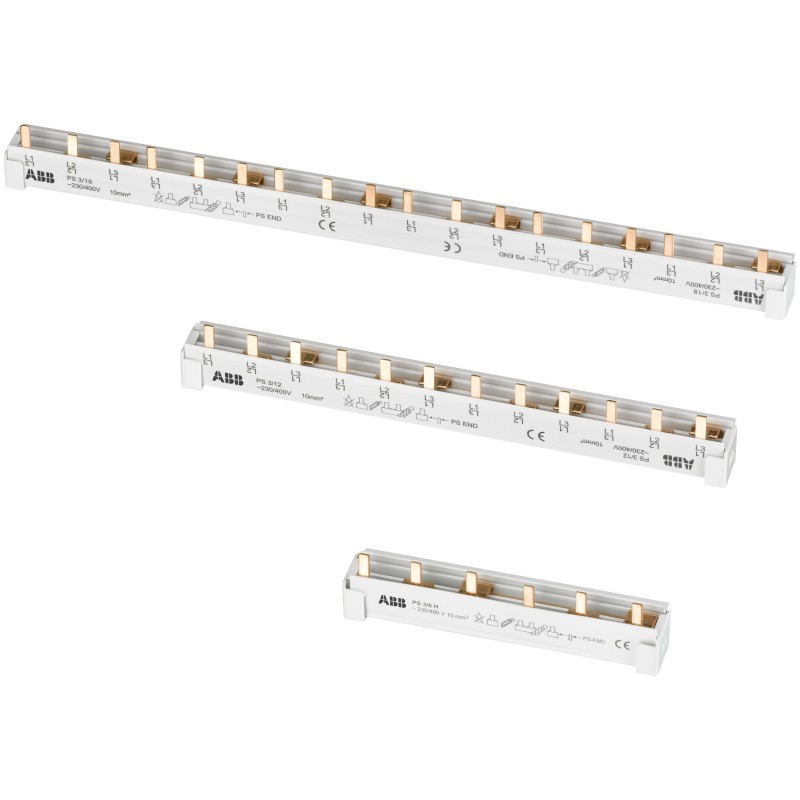

ABB 2CDL240213R1012 2CDL240213R1012 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2CDL240213R1012 ABB PS4/12NA Bar Block

Reference: 2CDL240213R1012

Manufacturer: ABB

Description:

PS4/12NA Bar Block

PS 4/12N A Busbar

Categories:

Low-voltage industrial components > Phase busbar
ABB > Industrial

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

More Info
ETIM
Reviews

Guarantee, repair and return.

Unit Price: 28,86 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 25 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

Technical
Sub-Function	cross wiring for neutral conductor
Suitable For	S200
	F200
	DDA200
Suitable for Product Class	PS4/32-DDA204
Pitch	17.5
Number of Poles	12P
Number of Phases	4-phase
Number of Mountable Devices	3
Number of Terminals (N_term)	12
Accessory Type	Busbar
Connection Type	Pin
Options Provided	NA
Rated Cross-Section	10 mm²
Electrical
Rated Operational Voltage	230 / 400 V AC
	Maximum 690 V
Rated Short-time Withstand Current Low Voltage (I_cw)	25 kA
Rated Uninterrupted Current (I_u)	63 A
Rated Frequency (f)	50 / 60 Hz
	DC
Overvoltage Category	III
Design
RAL Number	RAL 7035 - Light Grey
Color	grey
Material Compliance
RoHS Declaration	9AKK108468A1264
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date	20230517
REACH Declaration	9AKK107492A1906
REACH Information	False - does not contain substances > 0.1 mass percentage
REACH Date	20251028
Conflict Minerals Reporting Template (CMRT)	9AKK108468A3363
SCIP	af3c6049-b65e-44ae-90c0-ab4281e14730 Germany
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B	Business To Business
Environmental
Pollution Degree	2
Environmental Information	DIN EN 60068
Dimensions
Width in Number of Modular Spacings	12.0
Product Net Width	19.3 mm
Product Net Height	30.5 mm
Product Net Depth / Length	212 mm
Product Net Weight	0.105 kg
Ordering
Package Level 1 Units	carton 30 piece
Package Level 1 Gross Weight	3.31 kg
E-Number (Finland)	3210196
E-Number (Norway)	1665945
Certificates and Declarations
Declaration of Conformity - CE	9AKK108469A0841
Declaration of Conformity - UKCA	9AKK108469A0914
Installation
Instructions and Manuals	2CSC400002D0208
Mounting Position	any
Popular Downloads
Data Sheet, Technical Information	9AKK106930A8017
External Classifications and Standards
ETIM 9	EC000215 - Phase busbar
ETIM 10	EC000215 - Phase busbar
UNSPSC	39121117
eClass	V11.0 : 27371306
IDEA Granular Category Code (IGCC)	4378 >> Phase busbar
Object Classification Code	W
Standards	IEC/EN 60947-1

ETIM for 2CDL240213R1012 Low-voltage industrial controls and switchgear (EC000215)

Feature nameNumber of phases (EF000351)

Feature value4

Feature nameNumber of poles (EF001391)

Feature value12

Feature nameSuitable for number of devices (EF007241)

Feature value3

Feature nameModule width (EF007504)

Feature value17.5 mm

Feature nameCross section (EF000649)

Feature value10 mm²

Feature nameLength (EF001438)

Feature value212 mm

Feature nameWidth in number of modular spacings (EF002950)

Feature value12.0

Feature nameRated permanent current Iu (EF001389)

Feature value63 A

Feature nameType of electric connection (EF003961)

Feature valuePin

Feature nameInsulated (EF000019)

Feature valueYes

Feature nameMax. rated operation voltage Ue (EF007357)

Feature value690 V

Feature nameRated short-time withstand current lcw (EF007050)

Feature value25 kA

Feature nameSuitable for devices with N-conductor (EF007218)

Feature valueYes

Feature nameSuitable for devices with auxiliary switch (EF007217)

Feature valueNo

Feature nameColour (EF000007)

Feature valueGrey
