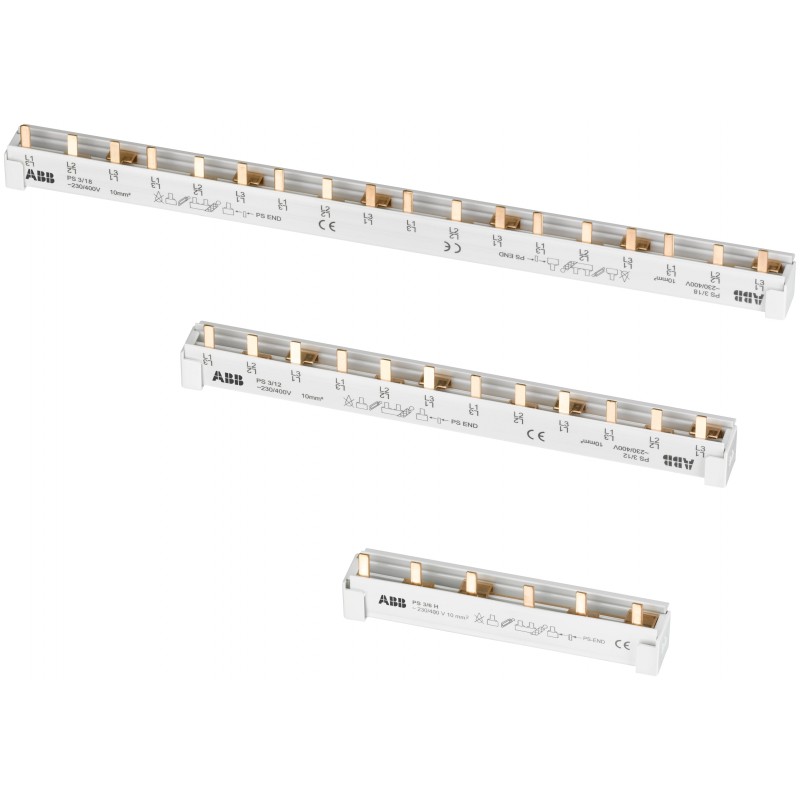

2CDL240114R1648 ABB PS4/48/16NH Bar Block
2CDL240114R1648
ABB
PS4/48/16NH Bar Block
PS 4/48/16NH A Busbar
Industrial
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Technical | |
|---|---|
| Sub-Function | cross wiring for neutral conductor |
| Suitable For | S200 |
| F200 | |
| DDA200 | |
| Suitable for Product Class | 2-pole devices + auxiliary contact |
| Pitch | 17.5 |
| Number of Poles | 48P |
| Number of Phases | 4-phase |
| Number of Mountable Devices | 12 |
| Number of Terminals (Nterm) | 48 |
| Accessory Type | Busbar |
| Connection Type | Pin |
| Options Provided | NHA |
| Rated Cross-Section | 16 mm² |
| Electrical | |
| Rated Operational Voltage | 230 / 400 V AC |
| Maximum 690 V | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 25 kA |
| Rated Uninterrupted Current (Iu) | 80 A |
| Rated Frequency (f) | 50 / 60 Hz |
| DC | |
| Overvoltage Category | III |
| Design | |
| RAL Number | RAL 7035 - Light Grey |
| Color | grey |
| Material Compliance | |
| RoHS Declaration | 9AKK108468A1264 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20230517 |
| REACH Declaration | 9AKK107492A1906 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20251028 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Pollution Degree | 2 |
| Environmental Information | DIN EN 60068 |
| Dimensions | |
| Width in Number of Modular Spacings | 60.0 |
| Product Net Width | 20.4 mm |
| Product Net Height | 30.5 mm |
| Product Net Depth / Length | 1047 mm |
| Product Net Weight | 0.763 kg |
| Ordering | |
| Package Level 1 Units | carton 10 piece |
| Package Level 1 Gross Weight | 7.84 kg |
| E-Number (Finland) | 3210197 |
| E-Number (Norway) | 1665948 |
| E-Number (Sweden) | 2100335 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK108469A0841 |
| Declaration of Conformity - UKCA | 9AKK108469A0914 |
| Installation | |
| Instructions and Manuals | 2CSC400002D0208 |
| Mounting Position | any |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK106930A8017 |
| External Classifications and Standards | |
| ETIM 9 | EC000215 - Phase busbar |
| ETIM 10 | EC000215 - Phase busbar |
| UNSPSC | 39121117 |
| eClass | V11.0 : 27371306 |
| IDEA Granular Category Code (IGCC) | 4378 >> Phase busbar |
| Object Classification Code | W |
| Standards | IEC/EN 60947-1 |
