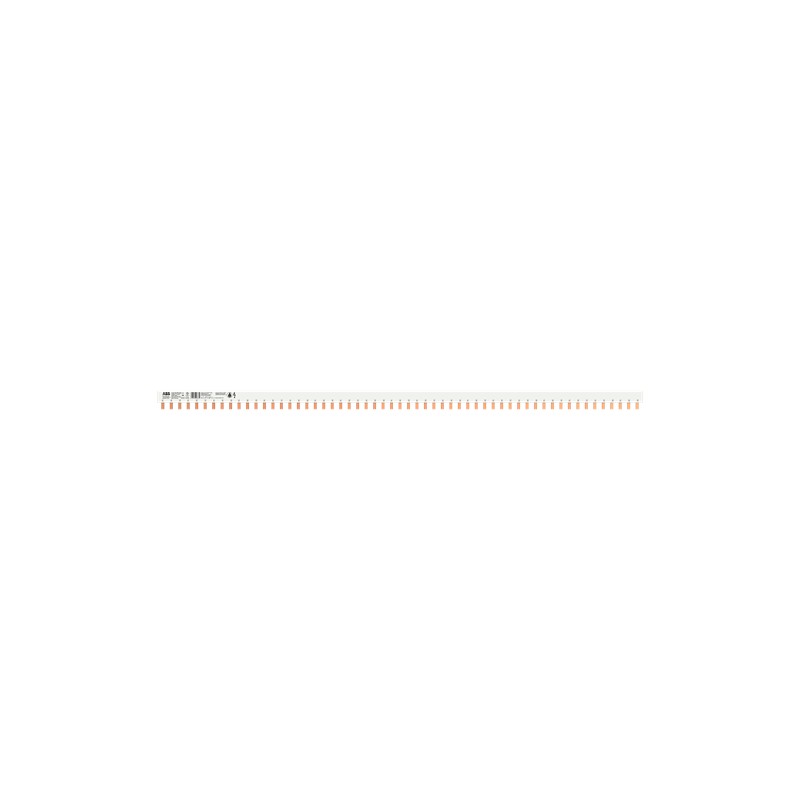

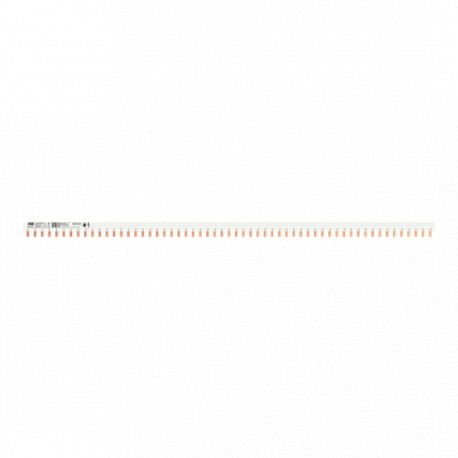

2CDL230508R5718 ABB PS Bar Block 3/57/18 CB

Code: 2CDL230508R5718

Manufacturer: ABB

Description:

PS Bar Block 3/57/18 CB
PS 3/57/18 CB Busbar 3Ph., 57Pins, 18qmm

Categories:

  • Low-voltage industrial components > Phase busbar
  • ABB > Industrial

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 73,92 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Technical
Sub-FunctioncULus
Suitable for Product ClassMCBs (UL 1077)
fuse disconnector E90
Number of Poles57P
Number of Phases3-phase
Number of Mountable Devices19
Number of Terminals (Nterm)57
Accessory TypeBusbar
Connection TypePin
Options ProvidedCB
Rated Cross-Section18 mm²
Electrical
Rated Operational Voltage690 V AC/DC
Maximum 600 V
Rated Short-time Withstand Current Low Voltage (Icw)10 kA
Rated Uninterrupted Current (Iu)80 A
Rated Frequency (f)50 / 60 Hz
DC
Overvoltage CategoryIII
Design
RAL NumberRAL 7035 - Light Grey
Colorgrey
Technical UL/CSA
Maximum Continuous Operating Voltage UL/CSA (MCOV)600 volt AC / DC
Material Compliance
RoHS Declaration9AKK108468A1264
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20230517
REACH Declaration9AKK107492A1906
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240821
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Business
Environmental
Pollution Degree2
Environmental InformationDIN EN 60068
Dimensions
Width in Number of Modular Spacings57.0
Product Net Width21 mm
Product Net Height37 mm
Product Net Depth / Length1005 mm
Product Net Weight0.835 kg
Ordering
Package Level 1 Unitscarton 10 piece
Package Level 1 Gross Weight8.62 kg
E-Number (Finland)3212125
Replaced Product ID (OLD)2CDL230111R1660
Certificates and Declarations
Declaration of Conformity - CE9AKK108469A0843
Declaration of Conformity - UKCA9AKK108469A0846
Installation
Mounting Positionany
Popular Downloads
External Classifications and Standards
ETIM 9EC000215 - Phase busbar
ETIM 10EC000215 - Phase busbar
UNSPSC39121117
eClassV11.0 : 27371306
IDEA Granular Category Code (IGCC)4378 >> Phase busbar
Object Classification CodeW
StandardsUL 508
UL 1077
IEC/EN 60947-1

ETIM for 2CDL230508R5718 Low-voltage industrial controls and switchgear (EC000215)

Feature nameNumber of phases (EF000351)
Feature value3
Feature nameNumber of poles (EF001391)
Feature value57
Feature nameSuitable for number of devices (EF007241)
Feature value19
Feature nameCross section (EF000649)
Feature value18 mm²
Feature nameLength (EF001438)
Feature value1005 mm
Feature nameWidth in number of modular spacings (EF002950)
Feature value57.0
Feature nameRated permanent current Iu (EF001389)
Feature value80 A
Feature nameType of electric connection (EF003961)
Feature valuePin
Feature nameInsulated (EF000019)
Feature valueYes
Feature nameMax. rated operation voltage Ue (EF007357)
Feature value600 V
Feature nameRated short-time withstand current lcw (EF007050)
Feature value10 kA
Feature nameSuitable for devices with N-conductor (EF007218)
Feature valueNo
Feature nameSuitable for devices with auxiliary switch (EF007217)
Feature valueNo
Feature nameColour (EF000007)
Feature valueGrey
