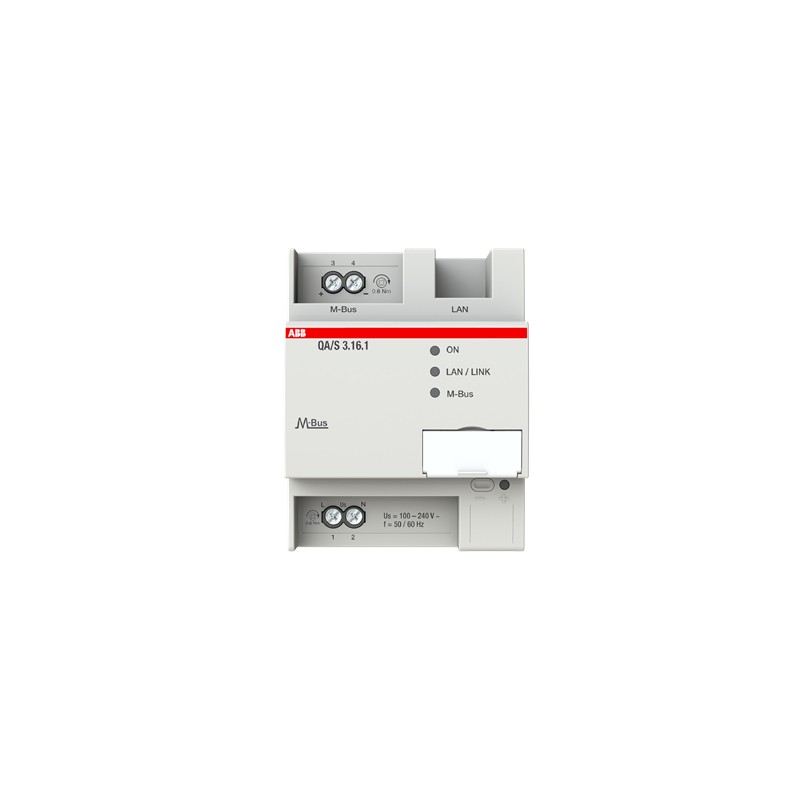

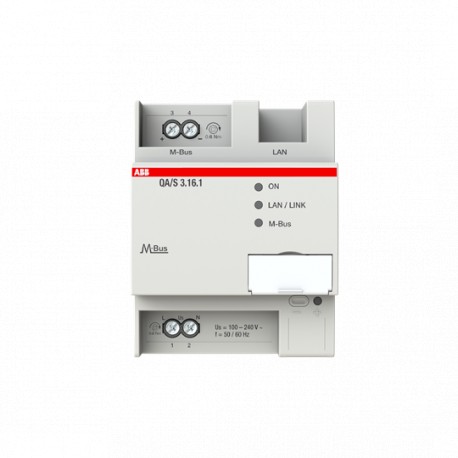

2CDG110226R0011 ABB EQMatic M-Bus 16 cont. QA/S3.16.1
2CDG110226R0011
ABB
EQMatic M-Bus 16 cont. QA/S3.16.1
QA/S3.16.1 Energy Analyzer, M-Bus, 16 Devices, MDRC
Installation bus systems > Energy management for bus system
Other modular devices
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Related products
▲Best sellers
▲More info
▲| Technical | |
|---|---|
| Model Number | Other |
| Maximum Number of Switching Outputs | 0 |
| Compatible Bus Systems | m-Bus |
| Product Range | KNX |
| Connection Type | Direct |
| Manual Operation | No |
| Number of Batteries | 0 |
| Application Function | Building Management |
| Electrical | |
| Voltage Range | 110 ... 230 V AC |
| Auxiliary Voltage AC/DC | 230 V AC |
| Power Loss | 3 W |
| Design | |
| Color | light grey |
| Material Compliance | |
| RoHS Declaration | 2CDK512092D2701 |
| RoHS Information | Following EU Directive 2011/65/EU |
| RoHS Date | 20170712 |
| REACH Declaration | 9AKK107492A1906 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240123 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Degree of Protection | IP20 |
| Dimensions | |
| Width in Number of Modular Spacings | 4.0 |
| Product Net Width | 72 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 64.5 mm |
| Product Net Weight | 0.15 kg |
| Built-In Depth (t2) | 64.5 mm |
| Dimension Diagram | 2CDC072033F0015 |
| Engineering | |
| EPLAN Data | 9AAF632778_EPLAN |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.19 kg |
| E-Number (Finland) | 2815588 |
| E-Number (Norway) | 4544762 |
| E-Number (Sweden) | 0900156 |
| E-Number (Switzerland) | 405810205 |
| Certificates and Declarations | |
| Cyber Security Software Support Period | 2 year |
| Declaration of Conformity - CE | 2CDK512092D2701 |
| Installation | |
| Instructions and Manuals | 2CDG941193P0001 |
| Mounting Type | DIN-Rail |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CDC512091D0201 |
| External Classifications and Standards | |
| ETIM 9 | EC001102 - Energy management for bus system |
| ETIM 10 | EC001102 - Energy management for bus system |
| eClass | V11.0 : 27143126 |
| Object Classification Code | A |
| Feature Name | Feature Value |
|---|---|
| Bus system KNX (EF001499) | No |
| Bus system KNX-RF (Radio Frequency) (EF008855) | No |
| Bus system radio frequency (EF001500) | No |
| Bus system LON (EF003831) | No |
| Bus system Powernet (EF001501) | No |
| Other bus systems (EF003811) | Other |
| Radio frequency bidirectional (EF009466) | No |
| Model (EF000010) | Other |
| Connection type (EF000124) | Direct |
| Reactive power (EF001531) | No |
| Approved according to PTB (EF001533) | No |
| S0 impulse interface (EF001530) | None |
| Tariff switch (EF001529) | No |
| Min. depth of built-in installation box (EF012278) | 64.5 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF PROTECTION & SAFETY EN .pdf | 25 Mbytes |
|
| 2CDG110226R0011 2CDG110226R0011 EN_2CDG110226R0011.pdf | 82 Kbytes |
|
