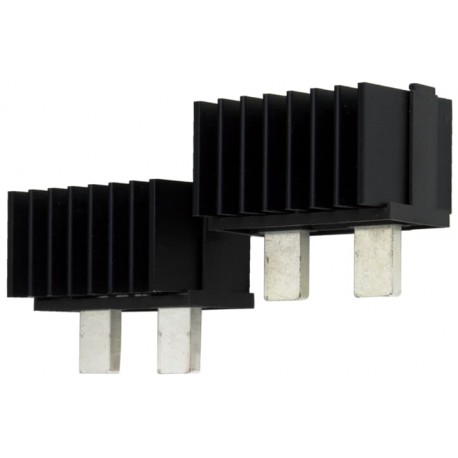

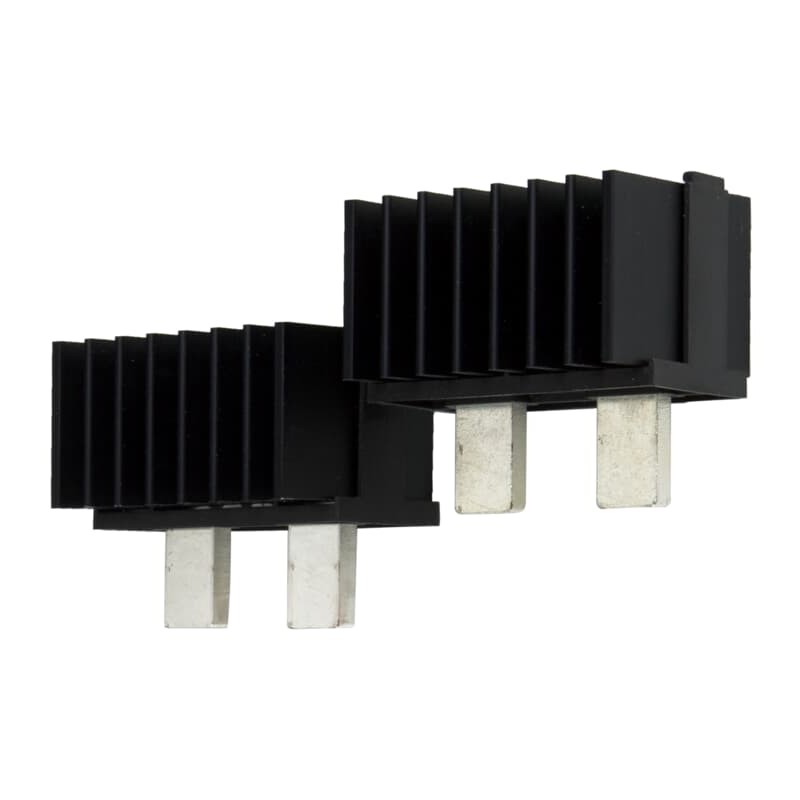

2CCS800900R0562 ABB Bar block S802-LINK125
2CCS800900R0562
ABB
2
Bar block S802-LINK125
S802-LINK125 Pole connector
Industrial
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Technical | |
|---|---|
| Suitable For | S800PV |
| Rated Operational Current (Ie) | 125 A |
| Model Number | Other |
| Tightening Torque | 3.5 N·m |
| Recommended Screw Driver | Pozidriv 2 |
| Terminal Type | Screw Terminals |
| Electrical | |
| Rated Insulation Voltage (Ui) | 1200 V DC |
| Rated Current (In) | 125 A |
| Rated Frequency (f) | 50...60 Hz |
| Material Compliance | |
| RoHS Declaration | 9AKK108466A0881 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20211021 |
| REACH Declaration | 9AKK108470A9089 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20250313 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +60 °C |
| Storage -40 ... +70 °C | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Environmental Information | 2CCY413207D0203 |
| Dimensions | |
| Product Net Width | 23.5 mm |
| Product Net Height | 49.5 mm |
| Product Net Depth / Length | 69.7 mm |
| Product Net Weight | 149 g |
| Ordering | |
| Package Level 1 Units | bag 2 piece |
| Package Level 1 Gross Weight | 320 g |
| Certificates and Declarations | |
| Installation | |
| Instructions and Manuals | 9AKK106930A3418 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CCC413003C0208 |
| External Classifications and Standards | |
| ETIM 9 | EC001522 - Busbar |
| ETIM 10 | EC001522 - Busbar |
| UNSPSC | 39121117 |
| eClass | V11.0 : 27370303 |
| IDEA Granular Category Code (IGCC) | 4375 >> Buss bar |
| Object Classification Code | F |
| Standards | IEC 60439-2 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF MINIATURE CIRCUIT BREAKERS EN .pdf | 37 Mbytes |
|
| 2CCS800900R0562 EN_2CCS800900R0562.pdf | 86 Kbytes |
|
