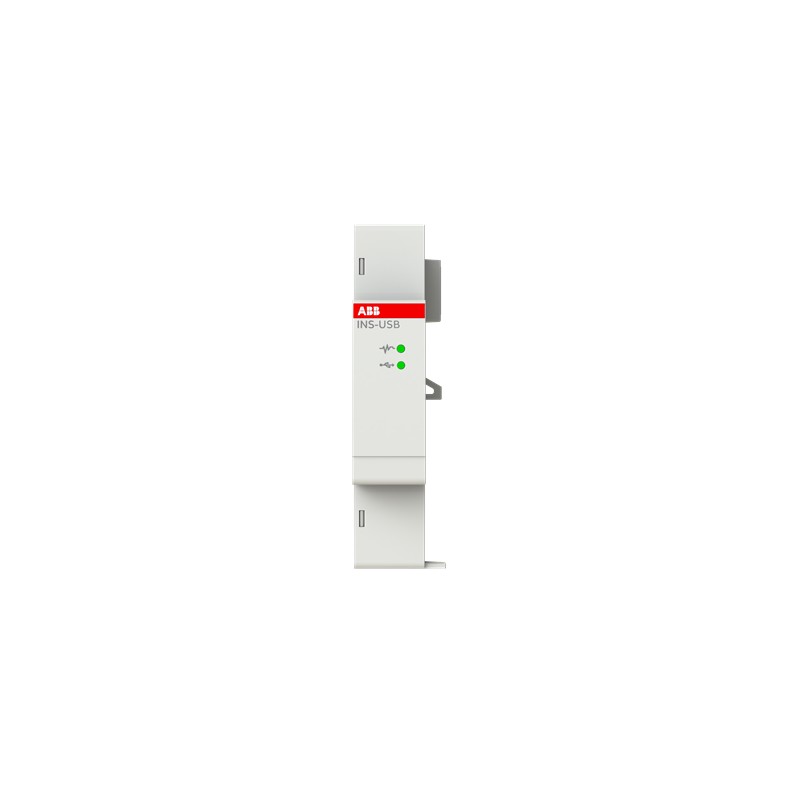

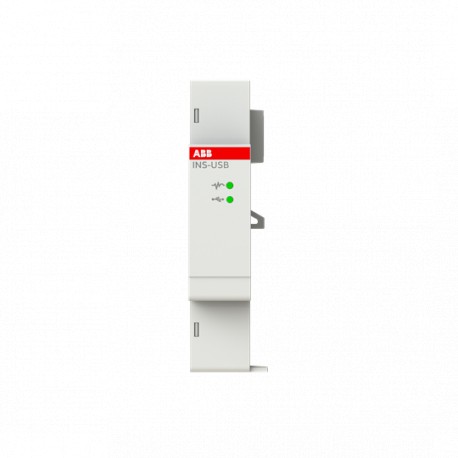

2CCG001351R0001 ABB SCU200 INS-USB Module
2CCG001351R0001
ABB
SCU200 INS-USB Module
USB COMMUNICATION MODULE SCU200
Low-voltage switchgear and control gear > Energy management controller
Other modular devices
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 46.25 % |
| Improved Energy Efficiency for Customers | Process Efficiency - Product improves/optimizes process |
| Process Efficiency - Product contribute to making customer’s operations more resilient and reliable | |
| Digital Efficiency - Product is digitally-supported to optimize usage and eventually optimize customer asset | |
| Extended Product Lifetime | Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services |
| Offered with Takeback Services | Take Back for Recycling |
| End Of Life Disassembling Instructions | 9AKK108470A1391 |
| Environmental Product Declaration - EPD | 9AKK108470A0919 |
| Technical | |
| Application | Power quality |
| Product Compatibility | SCU200 |
| Rated Operational Current AC-15 (Ie) | 0.7 A |
| Communication Interface | InSiteModularBus |
| Communication | USB 1.1 (max speed 12Mbps) |
| Technical Information | USB Module enables easy integration with popular utility meters such as P1, HAN, and Linky using the USB protocol. The collected data can be viewed on the SCU200's main web server and used for basic data export or advanced features like full energy monitoring, management of tariffs, and setting alarms. |
| Connection Mode and Capacity | up to 2 downstream devices communicating over USB protocol |
| Electrical | |
| Supply Voltage | 24 +/-10% V DC |
| Power Consumption (@Pcons) | 0.003 kW |
| Material Compliance | |
| RoHS Declaration | 9AKK108469A4367 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... 60 °C |
| Degree of Protection | IP20 |
| Maximum Operating Altitude Permissible | 2000 m |
| Dimensions | |
| Product Net Width | 17.4 mm |
| Product Net Height | 87 mm |
| Product Net Depth / Length | 64.9 mm |
| Product Net Weight | 46 g |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 47 g |
| E-Number (Finland) | 6719030 |
| Certificates and Declarations | |
| Declaration | CE |
| UKCA | |
| REACH | |
| RoHS | |
| Declaration of Conformity - CE | 9AKK108469A4367 |
| Installation | |
| Mounting Type | DIN-Rail |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK108467A9555 |
| External Classifications and Standards | |
| ETIM 9 | EC002758 - Energy management controller |
| ETIM 10 | EC002758 - Energy management controller |
| Standards | EN 61010-1 |
| IEC 61010-1 | |
| EN IEC 61326-1 | |
