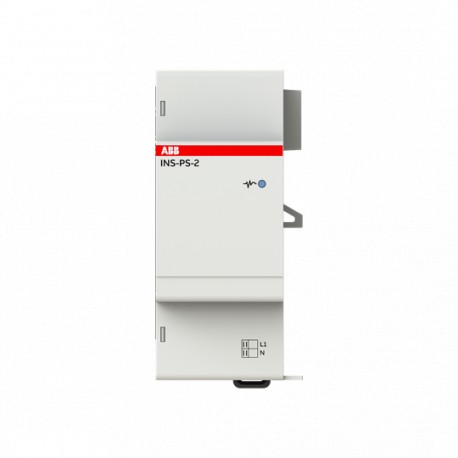

2CCG001172R0001 ABB SCU200 INS-PS-2 Module
2CCG001172R0001
ABB
SCU200 INS-PS-2 Module
POWER SUPPLY MODULE SCU200
Low-voltage switchgear and control gear > Energy management controller
Other modular devices
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 58.28 % |
| Improved Energy Efficiency for Customers | Process Efficiency - Product improves/optimizes process |
| Process Efficiency - Product contribute to making customer’s operations more resilient and reliable | |
| Digital Efficiency - Product is digitally-supported to optimize usage and eventually optimize customer asset | |
| Extended Product Lifetime | Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services |
| Offered with Takeback Services | Take Back for Recycling |
| End Of Life Disassembling Instructions | 9AKK108470A2190 |
| Environmental Product Declaration - EPD | 9AKK108470A0917 |
| Technical | |
| Application | Power Supply |
| Product Compatibility | SCU200 |
| Rated Operational Current AC-15 (Ie) | 0.7 A |
| Communication Interface | InSiteModularBus |
| Connection Type | Screwless |
| Technical Information | Power Supply for InSite Energy management solutions, upto 30W |
| Electrical | |
| Supply Voltage | 240 V |
| Frequency (f) | 50/60 Hz |
| Power Consumption (@Pcons) | 0 kW |
| Material Compliance | |
| RoHS Declaration | 9AKK108469A4369 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20240404 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... 60 °C |
| Degree of Protection | IP20 |
| Maximum Operating Altitude Permissible | 2000 m |
| Dimensions | |
| Product Net Width | 35.8 mm |
| Product Net Height | 87 mm |
| Product Net Depth / Length | 64.9 mm |
| Product Net Weight | 110 g |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 111 g |
| E-Number (Finland) | 6719078 |
| Certificates and Declarations | |
| Declaration | CE |
| UKCA | |
| REACH | |
| RoHS | |
| Declaration of Conformity - CE | 9AKK108469A4369 |
| Installation | |
| Mounting Type | DIN-Rail |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK108468A6887 |
| External Classifications and Standards | |
| ETIM 9 | EC002758 - Energy management controller |
| ETIM 10 | EC002758 - Energy management controller |
| Standards | IEC 61010-1 |
| IEC 61326-1 | |
