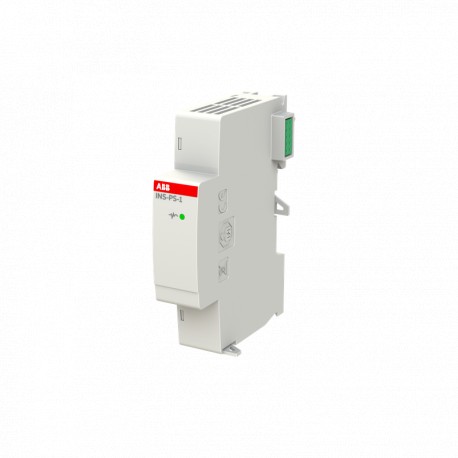

2CCG001160R0001 ABB SCU200 INS-PS-1 Module
2CCG001160R0001
ABB
SCU200 INS-PS-1 Module
INS-PS-1 InSite pro M compact - Power supply module - 15W
Low-voltage switchgear and control gear > Energy management controller
Other modular devices
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲- Extended Product Type:
- INS-PS-1
- Product ID:
- 2CCG001160R0001
- EAN:
- 7612271516406
- Catalog Description:
- INS-PS-1 Power supply module
- Long Description:
- INS-PS-1 InSite pro M compact - Power supply module - 15W
Technical
- Standards:
- IEC 61010-1
IEC 61326-4
- Product Compatibility:
- SCU 200
- Supply Voltage:
- 110-350 Dc V
100-240 Ac+/-10% V
- Rated Current (In):
- 0.18 A
- Frequency (f):
- 50 - 60 Hz
- Communication Interface:
- InSite modular bus
- Mounting Type:
- DIN-Rail
- Number of Batteries:
- 0
Material Compliance
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Environmental
- Ambient Air Temperature:
- Operation -25 ... 60 °C
- Degree of Protection:
- IP20
- Maximum Operating Altitude Permissible:
- 2000 m
Dimensions
- Product Net Width:
- 17.5mm
- Product Net Height:
- 87mm
- Product Net Depth / Length:
- 65mm
- Product Net Weight:
- 77g
Ordering
- Package Level 1 Units:
- box 1 piece
- Package Level 1 Gross Weight:
- 122 g
- E-Number (Finland):
- 6719028
Certificates and Declarations
- Declaration of Conformity - CE:
- 9AKK108468A4473
Classifications
- ETIM 8:
- EC002758 - Energy management controller
- ETIM 9:
- EC002758 - Energy management controller
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- CN8:
- 90303900
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF PROTECTION & SAFETY EN .pdf | 25 Mbytes |
|
| 2CCG001160R0001 EN_2CCG001160R0001.pdf | 206 Kbytes |
|
