ABBIndustrial2CCF019049R0001 ABB Int. Limiter S803HV-SCL100-SR

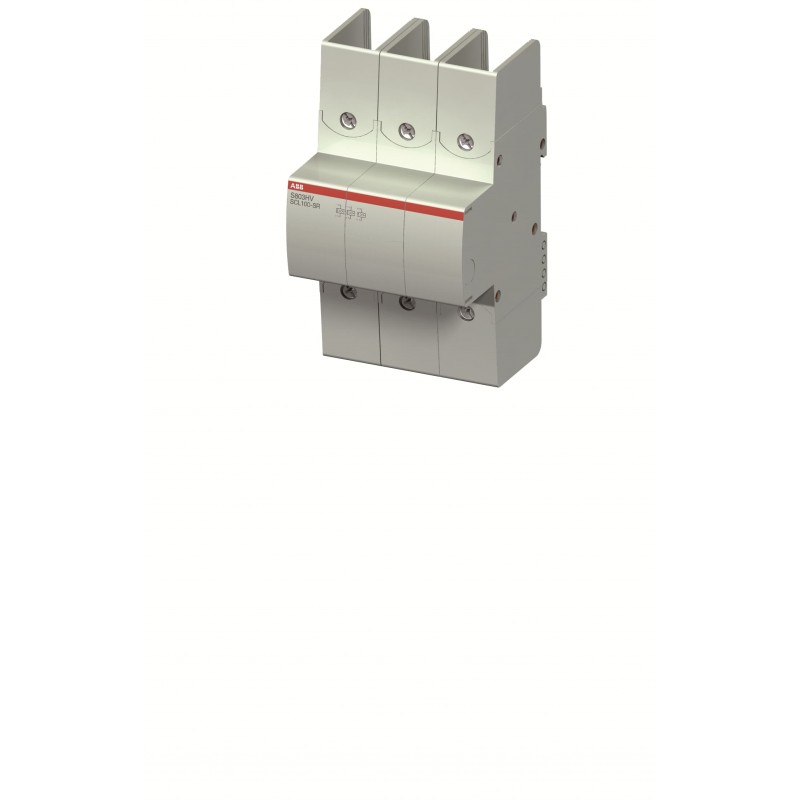

ABB 2CCF019049R0001 2CCF019049R0001 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2CCF019049R0001 ABB Int. Limiter S803HV-SCL100-SR

Reference: 2CCF019049R0001

Manufacturer: ABB

Description:

Int. Limiter S803HV-SCL100-SR
S803HV-SCL100-SR

Categories:

  • Low-voltage industrial components > Current limiter
  • ABB > Industrial

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 787,14 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Technical
Suitable ForS800HV
Rated Operational Current (Ie)100 A
Rated Service Short-Circuit Breaking Capacity (Ics)(580 / 1000 V AC) 10 kA
Apparent Power OutputSecondary 100000 V·A
Number of Poles3P
Tightening Torque3.5 N·m
Recommended Screw DriverPozidriv 2
Connecting CapacityFlexible 1 ... 50 mm²
Stranded 1 ... 70 mm²
Terminal TypeScrew Terminals
Electrical
Rated Operational Voltage580/1000 V AC
Rated Insulation Voltage (Ui)1000 V AC
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Conditional Short-Circuit Current (Inc)15 kA
Rated Uninterrupted Current (Iu)100 A
Rated Frequency (f)50...60 Hz
Power LossTotal 23.4 W
at Rated Operating Conditions per Pole 7.8 W
Design
Housing MaterialInsulation group I, RAL 7035
Material Compliance
RoHS Declaration9AKK107680A3903
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20190320
REACH Declaration9AKK108470A9089
REACH InformationTrue - contains substances > 0.1 mass percentage
REACH Date20250313
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Business
Environmental
Ambient Air TemperatureOperation -25 ... +60 °C
Storage -40 ... +70 °C
Degree of Protectionacc. to IEC 60529 IP20
Environmental Information2CCY413207D0203
Dimensions
Product Net Width81 mm
Product Net Height142 mm
Product Net Depth / Length82.5 mm
Product Net Weight770 g
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight810 g
Certificates and Declarations
Declaration of Conformity - CE2CCC413015D0601
Installation
Instructions and Manuals9AKK106930A3418
Mounting TypeDIN-Rail
Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting PositionAny
Popular Downloads
Data Sheet, Technical Information2CCC413003C0208
External Classifications and Standards
ETIM 9EC000239 - Current limiter
ETIM 10EC000239 - Current limiter
eClassV11.0 : 27370416
Object Classification CodeF
StandardsIEC/EN 60947-2

ETIM for 2CCF019049R0001 Low-voltage industrial controls and switchgear (EC000239)

Feature nameMounting method (EF000003)
Feature valueDIN rail
Feature nameConditioned rated short-circuit current Iq (EF001444)
Feature value15 kA
Feature nameRated permanent current Iu (EF001389)
Feature value100 A
Feature nameShort-circuit current limiter (EF007333)
Feature valueYes
