ABBIndustrial2CCF019027R0001 ABB Int.aut. S802HV-K40 2p 16A

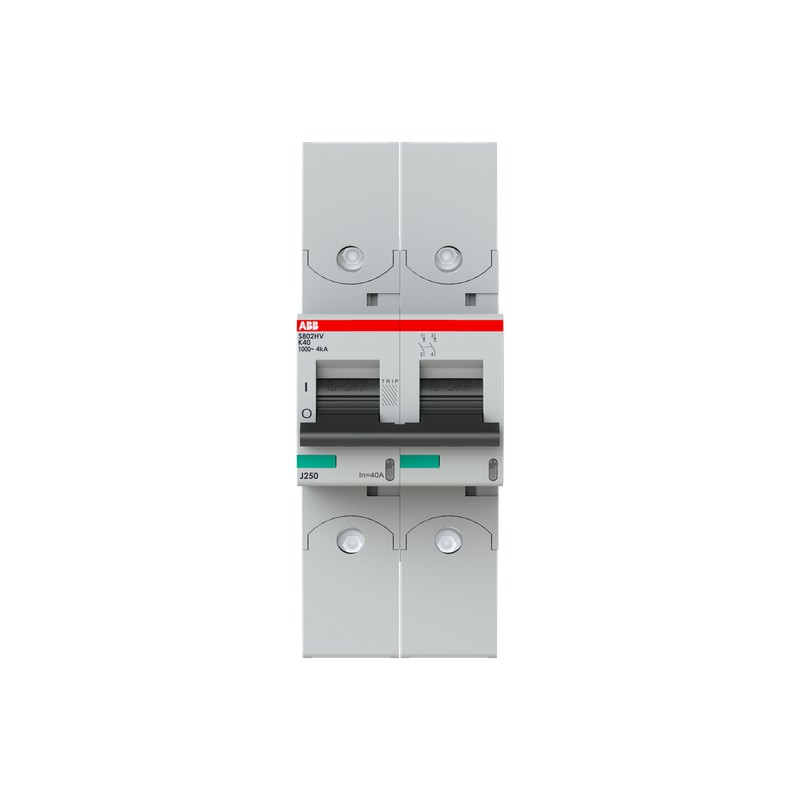

ABB 2CCF019027R0001 2CCF019027R0001 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2CCF019027R0001 ABB Int.aut. S802HV-K40 2p 16A

Reference: 2CCF019027R0001

Manufacturer: ABB

Description:

Int.aut. S802HV-K40 2p 16A
S802HV-K40 High Performance MCB

Categories:

  • Circuit breakers and fuses > Miniature circuit breaker (MCB)
  • ABB > Industrial

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 500,01 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Extended Product Type:
    S802HV-K40
  • Product ID:
    2CCF019027R0001
  • EAN:
    7612271436766
  • Catalog Description:
    S802HV-K40 High Performance MCB
  • Long Description:
    The S802HV-K40 is a 2-pole High Performance Circuit breaker with K-characteristic, with cage terminal, long separating plates and a rated current of 40 A. It is a current limiting device with a maximum breaking capacity of 4kA at 580/1000V. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S802HV-K40 complies with IEC/EN 60947-2 and allows the use for industrial applications. It can be used worldwide. The extensive range of accessory makes the use of S802HV-K40 more comfortable. Due to the fast arc extinction of S802HV-K40 your application will be secured.

Technical

  • Standards:
    IEC/EN 60947-2
  • Number of Poles:
    2
  • Number of Protected Poles:
    2
  • Tripping Characteristic:
    K
  • Rated Current (In):
    40 A
  • Rated Operational Voltage:
    580/1000 V AC
  • Power Loss:
    7.4 W
    at Rated Operating Conditions per Pole 3.7 W
  • Rated Insulation Voltage (Ui):
    1000 V AC
  • Rated Frequency (f):
    50...60 Hz
  • Rated Short-Circuit Capacity (Icn):
    (400 V) 2.5 kA
    (230 V) 2.5 kA
  • Rated Ultimate Short-Circuit Breaking Capacity (Icu):
    (580 / 1000 V AC) 4 kA
  • Rated Service Short-Circuit Breaking Capacity (Ics):
    (580 / 1000 V AC) 2.5 kA
  • Energy Limiting Class:
    3
  • Overvoltage Category:
    III
  • Pollution Degree:
    2
  • Rated Impulse Withstand Voltage (Uimp):
    8 kV
  • Housing Material:
    Insulation group I, RAL 7035
  • Actuator Marking:
    I / O
  • Contact Position Indication:
    ON / OFF / TRIP
  • Degree of Protection:
    IP20
  • Remarks:
    Connection from top and bottom
    Connecting with CU only
    IP40 in enclosure with cover
    Cage terminal with captive screw
  • Terminal Type:
    Screw Terminals
  • Connecting Capacity:
    Rigid 0 ... 50 mm²
    Flexible 0 ... 70 mm²
  • Tightening Torque:
    3.5 N·m
  • Recommended Screw Driver:
    Pozidriv 2
  • Mounting on DIN Rail:
    TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
    TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
  • Mounting Position:
    Any
  • Built-In Depth (t2):
    82.5 mm

Environmental

  • Ambient Air Temperature:
    Operation -25...60 °C
  • Resistance to Shock acc. to IEC 60068-2-27:
    5 g
    30 ms
  • Resistance to Vibrations acc. to IEC 60068-2-6:
    2 - 13.2 Hz / 1mm
    13.2 - 100Hz / 0.7g
    with load 100% x Ie
  • Environmental Conditions:
    Damp Heat Cyclic acc. to IEC 60068-2-30 12+12 cycle
    Damp Heat Cyclic acc. to IEC 60068-2-30 55°C @ 90-96%
    Damp Heat Cyclic acc. to IEC 60068-2-30 25°C @ 90-100%
    Dry Heat Test B acc. to IEC 60068-2-2 16 hour @ 55 °C
    Dry Heat Test B acc. to IEC 60068-2-2 2 hour @ 70 °C
  • RoHS Status:
    Following EU Directive 2011/65/EU

Dimensions

  • Product Net Width:
    54mm
  • Product Net Depth / Length:
    82.5mm
  • Product Net Height:
    142mm
  • Product Net Weight:
    490g

Container Information

  • Package Level 1 Units:
    box 1 piece
  • Package Level 1 Width:
    152 mm
  • Package Level 1 Depth / Length:
    60 mm
  • Package Level 1 Height:
    99 mm
  • Package Level 1 Gross Weight:
    580 g
  • Package Level 1 EAN:
    7612271436766

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85362020

Certificates and Declarations (Document Number)

Popular Downloads

Classifications

  • Object Classification Code:
    F
  • ETIM 6:
    EC000042 - Miniature circuit breaker (MCB)
  • ETIM 7:
    EC000042 - Miniature circuit breaker (MCB)

ETIM for 2CCF019027R0001 Circuit breakers and fuses (EC000042)

Feature nameBuilt-in depth (EF000218)
Feature value82.5 mm
Feature nameRelease characteristic (EF000889)
Feature valueK
Feature nameNumber of poles (total) (EF008618)
Feature value2
Feature nameNumber of protected poles (EF005548)
Feature value2
Feature nameRated current (EF000227)
Feature value40 A
Feature nameRated insulation voltage Ui (EF001366)
Feature value1000 V
Feature nameRated impulse withstand voltage Uimp (EF011980)
Feature value8 kV
Feature nameVoltage type (EF000187)
Feature valueAC
Feature nameFrequency (EF000416)
Feature value50 Hz
Feature nameCurrent limiting class (EF002568)
Feature value3
Feature nameFlush-mounted installation (EF007517)
Feature valueNo
Feature nameConcurrently switching neutral conductor (EF005997)
Feature valueNo
Feature nameOver voltage category (EF002569)
Feature value3
Feature namePollution degree (EF002570)
Feature value2
Feature nameAdditional equipment possible (EF008148)
Feature valueYes
Feature nameWidth in number of modular spacings (EF002950)
Feature value3
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameAmbient temperature during operating (EF007515)
Feature value-25 °C
Feature nameConnectable conductor cross section multi-wired (EF007343)
Feature value0 mm²
Feature nameConnectable conductor cross section solid-core (EF007337)
Feature value0 mm²
Feature nameExplosion-proof (EF004663)
Feature valueNo

DATASHEET - PDF

Title
Size
Type
2CCF019027R0001 2CCF019027R0001 EN_2CCF019027R0001.pdf
101 Kbytes
PDF MINIATURE CIRCUIT BREAKERS EN
37 Mbytes
