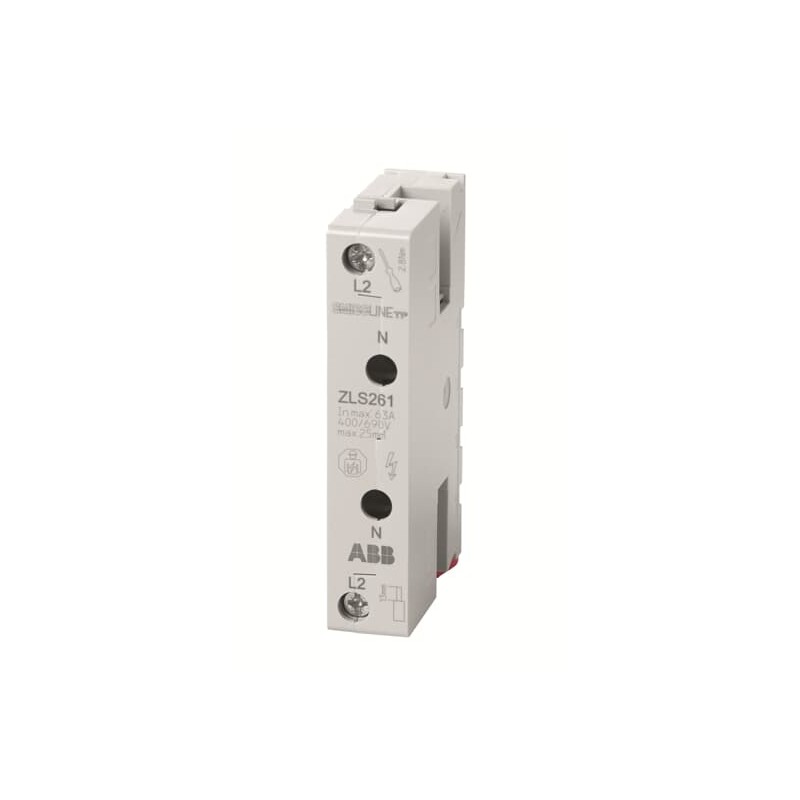

2CCA205306R0001 ABB Incoming terminal block with L1 N 63 A
2CCA205306R0001
ABB
Incoming terminal block with L1 N 63 A
ZLS261 Incoming terminal block
Industrial
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Often bought together
▲Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| EcoSolutions Profile | 9AKK108470A4407 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 85.28 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| Sustainable Material Content in Packaging (wt. %) | 0 % |
| FSC Mix Cardboard - 73.5 % | |
| FSC Mix Cardboard - 25.61 % | |
| FSC Mix Paper - 0.16 % | |
| Improved Energy Efficiency for Customers | Process Efficiency - Product improves/optimizes process |
| End Of Life Disassembling Instructions | 9AKK108470A2006 |
| Environmental Product Declaration - EPD | 9AKK108470A0225 |
| Technical | |
| Type of Residual Current | Standard Version |
| Model Number | Flat |
| Number of Poles | 2P |
| Electrical | |
| Rated Voltage (Ur) | 230/400 V |
| Rated Operational Voltage | 690 / 1000 V AC/DC |
| Rated Current (In) | 63 A |
| Frequency (f) | 50/60 Hz |
| Design | |
| Surface Finishing | Tinned |
| Material Compliance | |
| RoHS Declaration | 9AKK107991A9646 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20210407 |
| REACH Declaration | 9AKK108467A9561 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20230417 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Environmental Information | 9AKK108467A9561 |
| Dimensions | |
| Product Net Width | 18 mm |
| Product Net Height | 50 mm |
| Product Net Depth / Length | 87 mm |
| Product Net Weight | 90 g |
| Dimension Diagram | 9AKK107492A6192 |
| Engineering | |
| EPLAN Data | 9AAF617140_EPLAN |
| Ordering | |
| Package Level 1 Units | carton 1 piece |
| Package Level 1 Gross Weight | 124 g |
| E-Number (Norway) | 1623598 |
| E-Number (Sweden) | 2100355 |
| E-Number (Switzerland) | 809997018 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK107991A9646 |
| Installation | |
| Instructions and Manuals | 2CCC451038M0108 |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107492A6192 |
| External Classifications and Standards | |
| ETIM 9 | EC001522 - Busbar |
| ETIM 10 | EC001522 - Busbar |
| UNSPSC | 39121410 |
| eClass | V11.0 : 27370303 |
| IDEA Granular Category Code (IGCC) | 4547 >> Terminal blocks |
| Object Classification Code | W |
| Standards | IEC/EN 61439-6 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF MINIATURE CIRCUIT BREAKERS EN .pdf | 37 Mbytes |
|
| 2CCA205306R0001 2CCA205306R0001 EN_2CCA205306R0001.pdf | 90 Kbytes |
|
