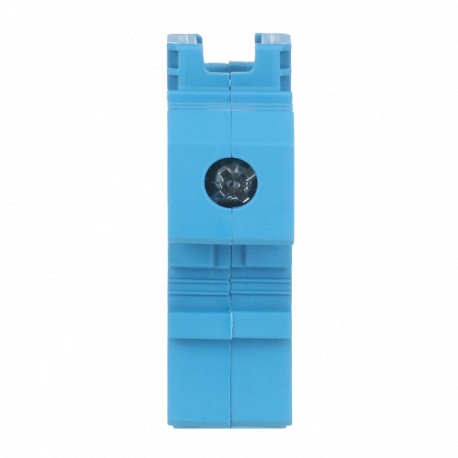

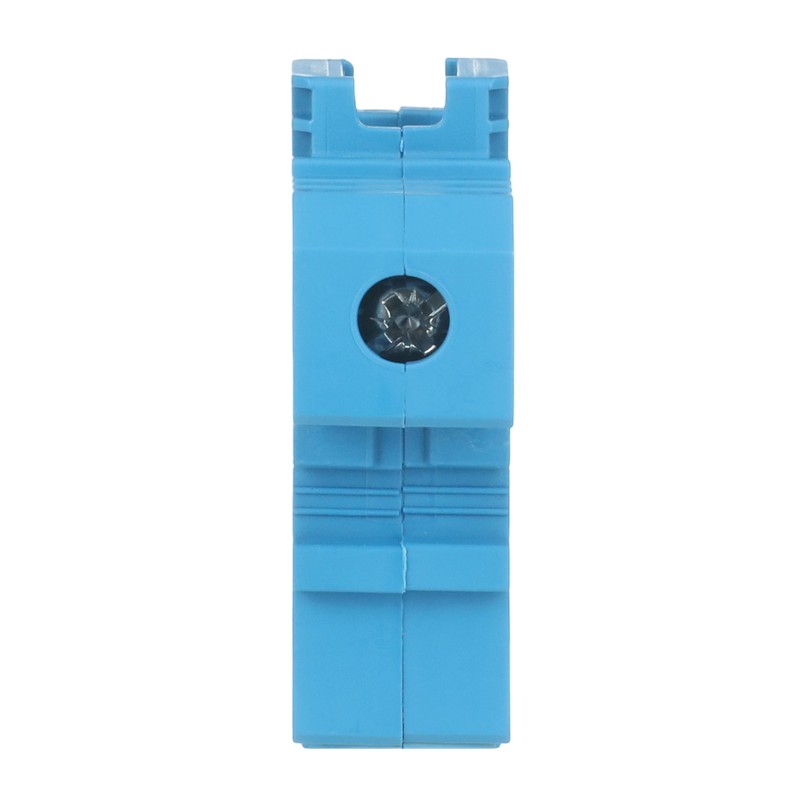

2CCA183470R0001 ABB ZLS913 Neutral Terminal 35mm2 (1ud)
2CCA183470R0001
ABB
ZLS913 Neutral Terminal 35mm2 (1ud)
ZLS913 Terminal for additional socket
Low-voltage industrial components > Busbar
Industrial
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Technical | |
|---|---|
| Model Number | Flat |
| Electrical | |
| Rated Operational Voltage | 690 V AC |
| 1000 V DC | |
| Rated Current (In) | 100 A |
| Design | |
| Surface Finishing | Tinned |
| Material Compliance | |
| RoHS Declaration | 9AKK107991A9646 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20210407 |
| REACH Declaration | 9AKK108467A9561 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20230417 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Environmental Information | 9AKK108467A9561 |
| Dimensions | |
| Product Net Width | 35 mm |
| Product Net Height | 46 mm |
| Product Net Depth / Length | 47 mm |
| Product Net Weight | 30 g |
| Dimension Diagram | 9AKK107492A6192 |
| Engineering | |
| EPLAN Data | 9AAF617140_EPLAN |
| Ordering | |
| Package Level 1 Units | carton 1 piece |
| Package Level 1 Gross Weight | 36 g |
| E-Number (Norway) | 1623724 |
| E-Number (Sweden) | 2100083 |
| E-Number (Switzerland) | 809997275 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK107991A9646 |
| Installation | |
| Instructions and Manuals | 9AKK107680A2315 |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107492A6192 |
| External Classifications and Standards | |
| ETIM 9 | EC001522 - Busbar |
| ETIM 10 | EC001522 - Busbar |
| UNSPSC | 39121432 |
| eClass | V11.0 : 27370303 |
| IDEA Granular Category Code (IGCC) | 4604 >> Busbar terminal |
| Object Classification Code | W |
| Standards | IEC/EN 61439-6 |
| Feature Name | Feature Value |
|---|---|
| Rated current In (EF008250) | 100 A |
| Model (EF000010) | Flat |
| Length (EF001438) | 47 mm |
| Width (EF000008) | 35 mm |
| Height (EF000040) | 46 mm |
| Flexible (EF000083) | Yes |
| Surface protection (EF000139) | Tinned |
