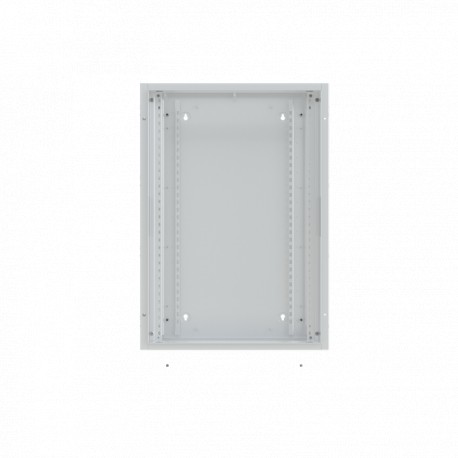

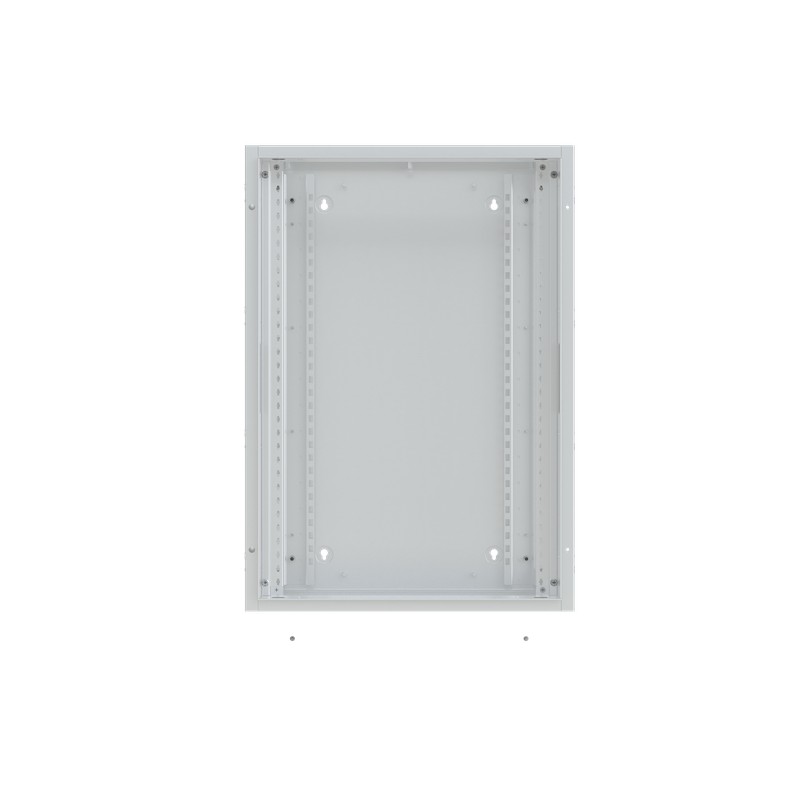

ABB 1SZE550800B0100 1SZE550800B0100 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SZE550800B0100 ABB SpEeM Arm: A600 H800 Monobloc Structure

Reference: 1SZE550800B0100

Manufacturer: ABB

Description:

SpEeM Arm: A600 H800 Monobloc Structure

SpEeM Arm: A600 H800 monoblock structure

Cabinet, Rows: 5, 849 mm x 612 mm x 250 mm, Grounded (Class I), IP55

Categories:

Distribution boards > Empty cabinet
ABB > Automation and Control enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

More Info
ETIM
PDF
Reviews

Guarantee, repair and return.

Unit Price: 538,47 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 7-8 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

Technical
Number of Flange Openings	4
Number of Rows	5
Cover Plate Type	Optional
Door Type	Single
Number of Batteries	0
Impact Resistance Rating	IK08
Electrical
Rated Current (I_n)	800 A
Power Loss	Δt = 25K - Enclosures 51 W
	Δt = 30K - Enclosures 72 W
	Δt = 35K - Enclosures 95 W
	Δt = 40K - Enclosures 120 W
Design
Surface Finishing	Powder coating
Housing Material	Steel
RAL Number	RAL 7035 - Light Grey
Color	Grey
Number of Modules	120
Material Compliance
RoHS Declaration	9AKK108468A9942
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date	20231210
REACH Declaration	2CPC100005X0201
REACH Information	False - does not contain substances > 0.1 mass percentage
REACH Date	20221108
Conflict Minerals Reporting Template (CMRT)	9AKK108468A3363
WEEE Category	Product Not in WEEE Scope
Environmental
Degree of Protection	IP55
Protection Class	Grounded (Class I)
Dimensions
Width in Number of Modular Spacings	24
Product Net Width	612 mm
Product Net Height	849 mm
Product Net Depth / Length	250 mm
Product Net Weight	17.688 kg
Built-In Depth (t₂)	230 mm
Thickness	Cabinet Plate 1.5 mm
	Door Plate 1.5 mm
Engineering
Building Information Modeling – BIM	9AKK107680A9001
Ordering
Package Level 1 Units	box 1 piece
Package Level 1 Gross Weight	20.1 kg
Certificates and Declarations
Declaration of Conformity - CE	9AKK108468A9942
Installation
Mounting Type	Surface mounting
Popular Downloads
External Classifications and Standards
ETIM 9	EC000058 - Empty cabinet
ETIM 10	EC000058 - Empty cabinet
eClass	V11.0 : 27142408
Object Classification Code	U

ETIM for 1SZE550800B0100 Distribution boards (EC000058)

Feature nameMounting method (EF000003)

Feature valueSurface mounted

Feature nameType of covering (EF000339)

Feature valueOptional

Feature nameCover model (EF009212)

Feature valueNone

Feature nameType of door (EF004464)

Feature valueSingle

Feature nameTransparent cover/door (EF006244)

Feature valueNo

Feature nameWith lock (EF006306)

Feature valueNo

Feature nameNominal current (In) (EF008873)

Feature value800 A

Feature nameHeight (EF000040)

Feature value849 mm

Feature nameWidth (EF000008)

Feature value612 mm

Feature nameDepth (EF000049)

Feature value250 mm

Feature nameBuilt-in depth (EF000218)

Feature value230 mm

Feature nameInner depth (EF001131)

Feature value170 mm

Feature nameMaterial plate thickness cabinet (EF009170)

Feature value1.5 mm

Feature nameMaterial plate thickness door/cover (EF009171)

Feature value1.5 mm

Feature nameColour (EF000007)

Feature valueGrey

Feature nameRAL-number (EF000116)

Feature value7035

Feature nameNumber of modules (EF004427)

Feature value120

Feature nameNumber of rows (EF000266)

Feature value5

Feature nameWidth in number of modular spacings (EF002950)

Feature value24

Feature nameNumber of openings for flange plates (EF009554)

Feature value4

Feature nameExtension possible (EF001088)

Feature valueYes

Feature nameHousing material (EF001596)

Feature valueSteel

Feature nameSurface protection (EF000139)

Feature valuePowder coated

Feature nameWith mounting plate (EF000118)

Feature valueNo

Feature nameSuitable for outdoor use (EF003532)

Feature valueNo

Feature nameSuitable for lightning protection (EF007800)

Feature valueYes

Feature nameDegree of protection (IP) (EF005474)

Feature valueIP55

Feature nameProtection class according to IEC 61140 (EF000004)

Feature valueI

Feature nameImpact strength (EF004293)

Feature valueIK08

Feature nameCircuit integrity (EF001613)

Feature valueNone

Feature nameCover with overpressure release (EF015940)

Feature valueNo
