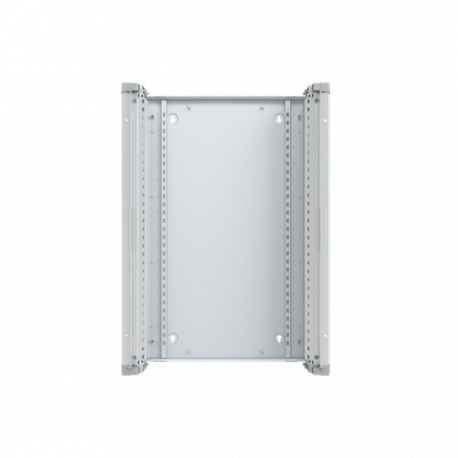

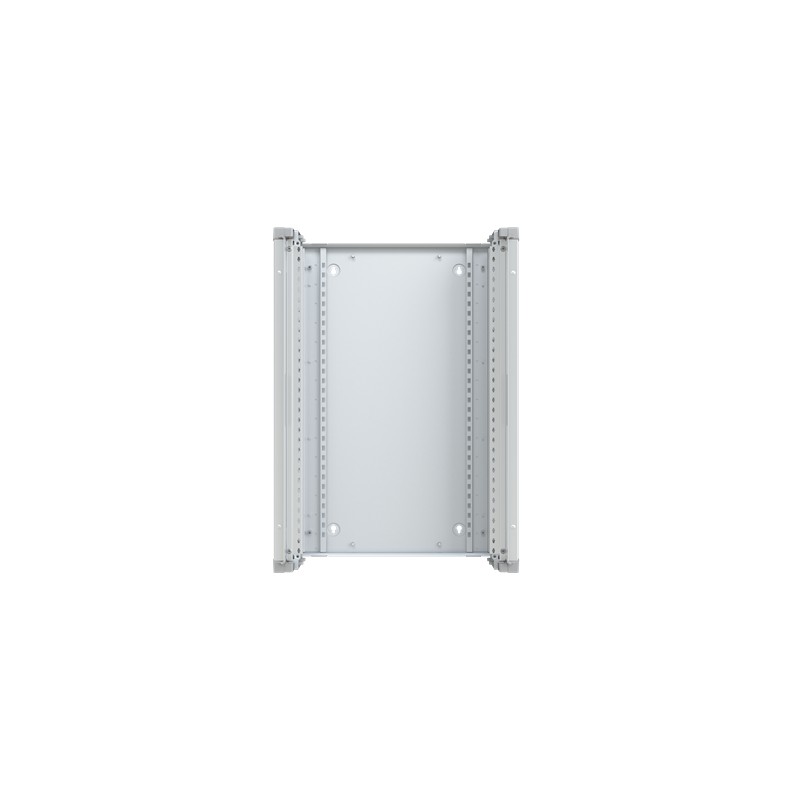

1SZE430800B0100 ABB SpEeL Arm: Bottom+Sides A600 H800
1SZE430800B0100
ABB
SpEeL Arm: Bottom+Sides A600 H800
SpEeL Arm: A600 H800 Side+Bottom
Cabinet, 849 mm x 600 mm x 250 mm
Cabinet enclosures > Side/back panel (switchgear cabinet)
Automation and Control enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Technical | |
|---|---|
| Number of Batteries | 0 |
| Electrical | |
| Power Loss | Δt = 25K - Enclosures 51 W |
| Δt = 30K - Enclosures 72 W | |
| Δt = 35K - Enclosures 95 W | |
| Δt = 40K - Enclosures 120 W | |
| Design | |
| Surface Finishing | Powder coating |
| Material | Steel |
| RAL Number | RAL 7035 - Light Grey |
| Color | Grey |
| Material Compliance | |
| RoHS Declaration | 9AKK108468A9942 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20231210 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20221108 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Dimensions | |
| Product Net Width | 600 mm |
| Product Net Height | 849 mm |
| Product Net Depth / Length | 250 mm |
| Product Net Weight | 17.312 kg |
| Engineering | |
| Building Information Modeling – BIM | 9AKK107680A9002 |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 18.817 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK108468A9942 |
| Installation | |
| Popular Downloads | |
| External Classifications and Standards | |
| ETIM 9 | EC002524 - Side-/back panel (enclosure/cabinet) |
| ETIM 10 | EC002524 - Side-/back panel (enclosure/cabinet) |
| eClass | V11.0 : 27182101 |
| Object Classification Code | U |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE ABB GENERAL ENCLOSURES 2024 EN.pdf | 138 Mbytes |
|
| PDF CATALOGUE ABB IS2 ENCLOSURES 2024 EN.pdf | 45 Mbytes |
|
| PDF CATALOGUE ABB IS2 ENCLOSURES EN.pdf | 32 Mbytes |
|
| 1SZE430800B0100 1SZE430800B0100 EN_1SZE430800B0100.pdf | 322 Kbytes |
|
