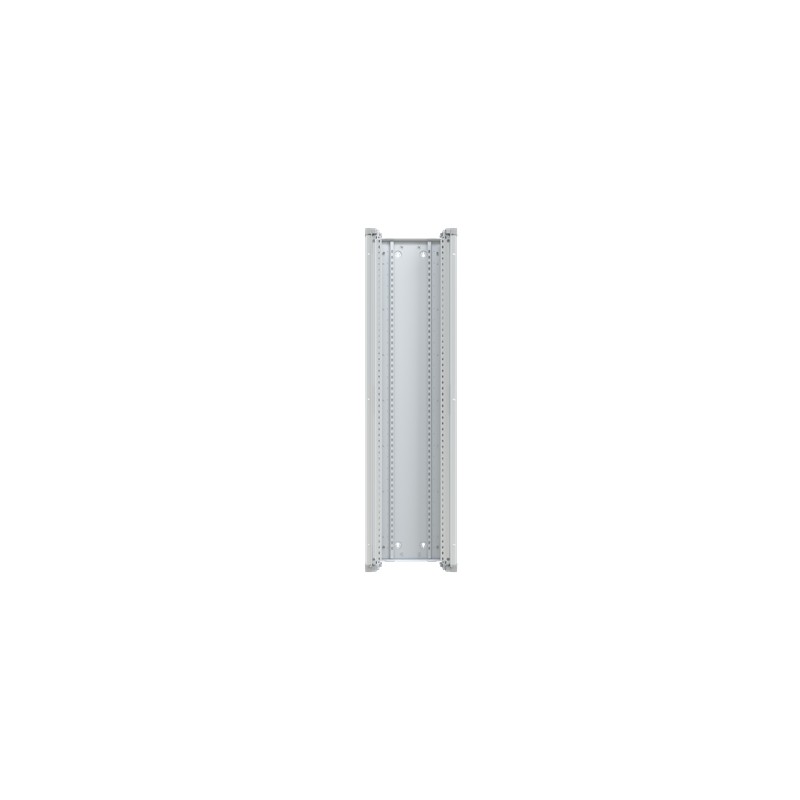

ABB 1SZE430800B0050 1SZE430800B0050 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

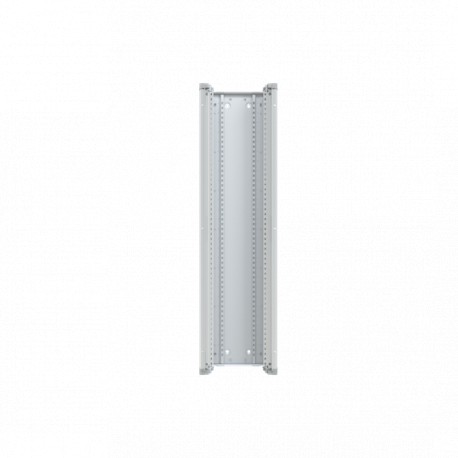

1SZE430800B0050 ABB SpEeL Arm: Bottom+Sides A400 H1400

Reference: 1SZE430800B0050

Manufacturer: ABB

Description:

SpEeL Arm: Bottom+Sides A400 H1400
Q843B414 Cabinet, 1449 mm x 384 mm x 250 mm

Categories:

  • Cabinet enclosures > Side/back panel (switchgear cabinet)
  • ABB > Automation and Control enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 315,30 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 7-8 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Extended Product Type:
    Q843B414
  • Product ID:
    1SZE430800B0050
  • EAN:
    5411815219054
  • Catalog Description:
    Q843B414 Cabinet, 1449 mm x 384 mm x 250 mm
  • Long Description:
    Floor standing cabinet, Type System pro E energy L, Basic structure, Mountingtype: Wallhanging, for indoor installation, Flatpack, Protection form I (Earthed), Protectklass IP43 (with door) IP30, without door, Acc.Norm: IEC 61439-1, IEC 61439-2, IEC 61439-3; IEC62208, IK08 for housing, IK07 for glass-door and knock-out, powdercoated RAL 7035, Sheet steel material, Door needs to be added seperataly, Door can be mounted Left or Right, Door opening 135°, Backplate sheet steel, Top and Bottom need to be added sepretely, Cable entry by flange of big Cable entry, dimensions in mm (H x W x D) 1400 x 400 (384) x 250, No.Mod.DIN 108 (H=150 mm), prepared for extention side-by-side, prepared for interrior fitting System pro E energy Combi (up to 800A)

Technical

  • Power Loss:
    Δt = 25K 45 W
    Δt = 30K 65 W
    Δt = 35K 86 W
    Δt = 40K 107 W
  • Material:
    Steel
  • RAL Number:
    RAL 7035 - Light Grey
  • Color:
    Grey
  • Number of Batteries:
    0

Environmental

Dimensions

  • Product Net Width:
    384mm
  • Product Net Height:
    1449mm
  • Product Net Depth / Length:
    250mm
  • Product Net Weight:
    15.807kg

Ordering

  • Minimum Order Quantity:
    1 piece
  • Package Level 1 Units:
    box 1 piece
  • Package Level 1 Gross Weight:
    17.37 kg
  • Customs Tariff Number:
    85381000
  • Country of Origin:
    Bulgaria (BG)

Certificates and Declarations

Popular Downloads

Classifications

  • ETIM 8:
    EC002524 - Side-/back panel (enclosure/cabinet)
  • ETIM 9:
    EC002524 - Side-/back panel (enclosure/cabinet)
  • WEEE Category:
    Product Not in WEEE Scope
  • WEEE B2C / B2B:
    Business To Consumer
  • CN8:
    85381000
  • eClass:
    V11.0 : 27182101
  • Object Classification Code:
    U
