1SVR508180R0100 ABB Temp. Alter. pumps 24-48VDC/24-240VAC
1SVR508180R0100
ABB
Temp. Alter. pumps 24-48VDC/24-240VAC

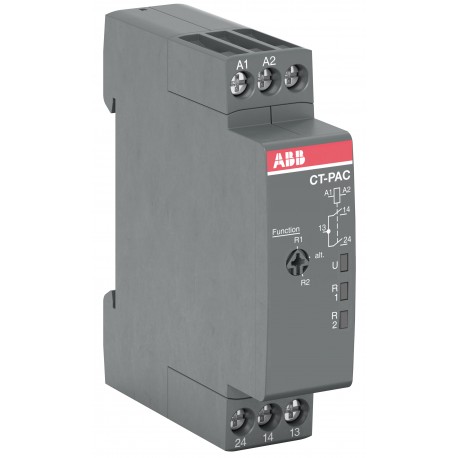

CT-PAC.22 Time relay, Alternating 2 n/o, 24-48VDC/24-240VAC
Relays > Timer relay
Electronic relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| EAN | 4013614555664 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CDC110004C0210_01 |
| Instructions and Manuals | 1SVC500020M1001 |
| 1SVC500020M0001 | |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| EPLAN Data | 9AAC405924_EPLAN |
| Dimensions | |
| Product Net Width | 17.5 mm |
| Product Net Height | 70 mm |
| Product Net Depth / Length | 63 mm |
| Product Net Weight | 0.059 kg |
| Technical | |
| Timer Relay Type | Alternating without Time Delay |
| Rated Control Supply Voltage (Us) | 24 ... 240 V AC |
| 24 ... 48 V DC | |
| Rated Operational Voltage | Auxiliary Circuit 250 V |
| Rated Frequency (f) | 50 / 60 Hz |
| DC | |
| Output | 2 N/O Contacts |
| Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 4 A |
| Rated Operational Current AC-15 (Ie) | (230 V) 3 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 4 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A |
| Minimum Switching Capacity | 12 V |
| 100 mA | |
| Rated Impulse Withstand Voltage (Uimp) | Input Circuit 4 kV |
| Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 300 V |
| Output Circuit 1 / Output Circuit 2 300 V | |
| Degree of Protection | Housing IP50 |
| Terminals IP20 | |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Short-Circuit Protective Devices | Output Circuit NC - F Type Fuses 6 A |
| Output Circuit NO - F Type Fuses 10 A | |
| Connecting Capacity | Flexible 1x 0.5 ... 2.5 mm² |
| Flexible 2x 0.5 ... 1.5 mm² | |
| Rigid 1x 0.5 ... 4 mm² | |
| Rigid 2x 0.5 ... 1.5 mm² | |
| Tightening Torque | 0.5 ... 0.8 N·m |
| Wire Stripping Length | 7 mm |
| Recommended Screw Driver | 0.8 x 4 |
| Pozidriv 1 | |
| Mounting Position | 1 ... 6 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| Standards | IEC/EN 60947-5-1 |
| CAN/CSA C22.2 No.14 | |
| UL 508 | |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | Output Circuit 300 V AC |
| Contact Rating UL/CSA | B300 |
| Connecting Capacity UL/CSA | Flexible 1x 18-14 AWG |
| Flexible 2x 18-16 AWG | |
| Rigid 1x 20-12 AWG | |
| Rigid 2x 20-16 AWG | |
| Tightening Torque UL/CSA | 4.43 ... 7.08 in·lb |
| Pilot Duty UL/CSA | B300 |
| Flammability According to UL94 | V-2 |
| Environmental | |
| Ambient Air Temperature | Operation -20 ... +60 °C |
| Storage -40 ... +85 °C | |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SVD981001-4501 |
| RoHS Declaration | 1SVD981001-4401 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006536 |
| Certificates and Declarations | |
| CQC Certificate | CQC2019010303150608 |
| cULus Certificate | cULus_20031209-E140448 |
| Declaration of Conformity - CCC | 2020980303000209 |
| Declaration of Conformity - CE | 1SVD981076-00 |
| Declaration of Conformity - UKCA | 1SVD981076-10 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 89 mm |
| Package Level 1 Depth / Length | 20 mm |
| Package Level 1 Height | 65 mm |
| Package Level 1 Gross Weight | 0.071 kg |
| Package Level 1 EAN | 4013614555664 |
| Package Level 2 EAN | 4013614580475 |
| External Classifications and Standards | |
| Object Classification Code | K |
| ETIM 7 | EC001439 - Timer relay |
| ETIM 8 | EC001439 - Timer relay |
| ETIM 9 | EC001439 - Timer relay |
| eClass | V11.0 : 27371605 |
| UNSPSC | 39121519 |
| E-Number (Norway) | 4189329 |
| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Screw connection |
| Function delay-on energization (EF003374) | No |
| Function delay on de-energization (EF003401) | No |
| Function floating contact on energization (EF003378) | No |
| Function floating contact on de-energization (EF003402) | No |
| Function star-delta (EF003380) | No |
| Function pulse shaping (EF003403) | No |
| Function flashing, starting with pause, fixed time (EF003363) | No |
| Function flashing, starting with pulse, fixed time (EF003364) | No |
| Clock function, starting with pause, variable (EF003365) | No |
| Clock function, starting with pulse, variable (EF003366) | No |
| Remote operation possible (EF003361) | No |
| Suitable as remote control (EF003362) | No |
| Pluggable on auxiliary contact block (EF006952) | No |
| Rated control supply voltage AC 50 Hz (EF003978) | 24 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 24 V |
| Rated control supply voltage DC (EF003980) | 24 V |
| Voltage type for actuating (EF008242) | AC/DC |
| Nominal current (EF000001) | 4 A |
| Number of outputs, undelayed, normally closed contact (EF006835) | 0 |
| Number of outputs, undelayed, normally open contact (EF006836) | 2 |
| Number of outputs, undelayed, change-over contact (EF006837) | 0 |
| Number of outputs, delayed, normally closed contact (EF006838) | 0 |
| Number of outputs, delayed, normally open contact (EF006839) | 2 |
| Number of outputs, delayed, change-over contact (EF006840) | 0 |
| Outputs, reversible delayed/undelayed (EF006988) | No |
| With semiconductor output (EF003373) | No |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | Yes |
| Width (EF000008) | 17.5 mm |
| Height (EF000040) | 70 mm |
| Depth (EF000049) | 63 mm |
