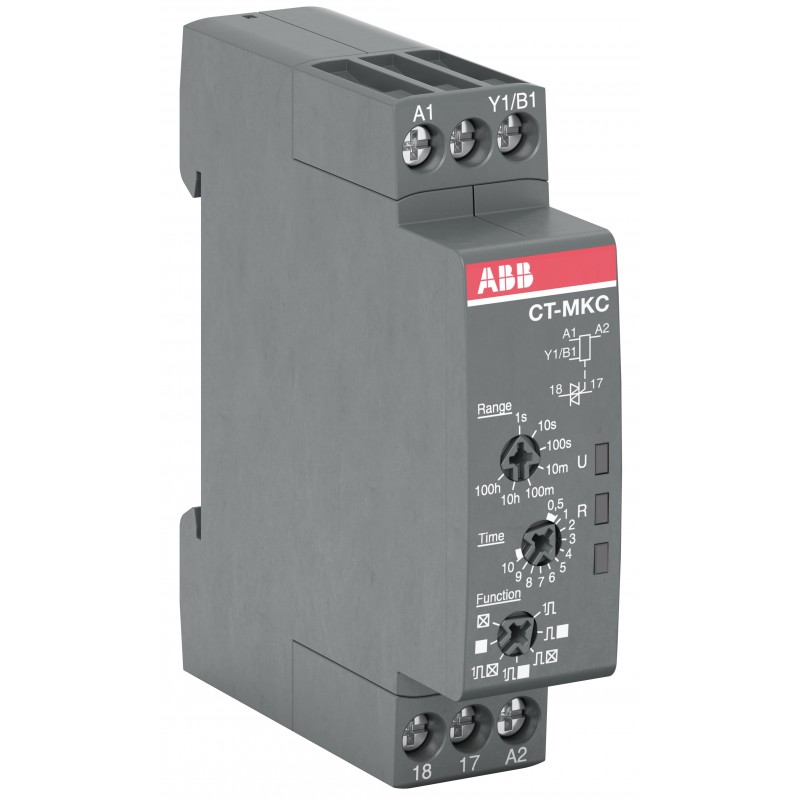

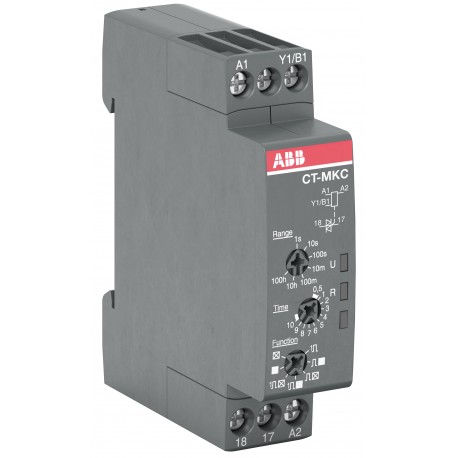

1SVR508010R1300 ABB Multifunctional temp.relay 12-240VAC/DC
1SVR508010R1300
ABB
Multifunctional temp.relay 12-240VAC/DC
CT-MKC.31 Time relay, Multifunctional solid-state, 12-240VAC/DC
Relays > Timer relay
Electronic relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| EAN | 4013614555626 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CDC110004C0210_01 |
| Instructions and Manuals | 1SVC500020M1001 |
| 1SVC500020M0001 | |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| EPLAN Data | 9AAC405924_EPLAN |
| Dimensions | |
| Product Net Width | 17.5 mm |
| Product Net Height | 70 mm |
| Product Net Depth / Length | 63 mm |
| Product Net Weight | 0.053 kg |
| Technical | |
| Timer Relay Type | Flasher Starting with OFF |
| Flasher Starting with ON | |
| Impulse OFF | |
| Impulse ON | |
| OFF-Delay | |
| ON-Delay | |
| Pulse Former | |
| Time Range | 0.05 s ... 100 h |
| Rated Control Supply Voltage (Us) | 12 ... 240 V AC/DC |
| Rated Operational Voltage | Auxiliary Circuit 250 V |
| Rated Frequency (f) | 50 / 60 Hz |
| DC | |
| Output | Solid-State |
| Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 1 A |
| Rated Operational Current AC-15 (Ie) | (230 V) 0.2 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 1 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 1 A |
| Rated Impulse Withstand Voltage (Uimp) | Input Circuit 4 kV |
| Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 300 V |
| Degree of Protection | Housing IP50 |
| Terminals IP20 | |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Short-Circuit Protective Devices | Output Circuit NC - F Type Fuses 6 A |
| Connecting Capacity | Flexible 1x 0.5 ... 2.5 mm² |
| Flexible 2x 0.5 ... 1.5 mm² | |
| Rigid 1x 0.5 ... 4 mm² | |
| Rigid 2x 0.5 ... 1.5 mm² | |
| Tightening Torque | 0.5 ... 0.8 N·m |
| Wire Stripping Length | 7 mm |
| Recommended Screw Driver | 0.8 x 4 |
| Pozidriv 1 | |
| Mounting Position | 1 ... 6 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| Standards | CAN/CSA C22.2 No.14 |
| IEC/EN 63000 | |
| IEC/EN 61812-1 | |
| UL 60947-5-1 | |
| Technical UL/CSA | |
| Connecting Capacity UL/CSA | Flexible 1x 18-14 AWG |
| Flexible 2x 18-16 AWG | |
| Rigid 1x 20-12 AWG | |
| Rigid 2x 20-16 AWG | |
| Tightening Torque UL/CSA | 4.43 ... 7.08 in·lb |
| Flammability According to UL94 | V-2 |
| Environmental | |
| Ambient Air Temperature | Operation -20 ... +60 °C |
| Storage -40 ... +85 °C | |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SVD981001-4501 |
| RoHS Declaration | 1SVD981001-4401 |
| SCIP | f76cf63a-cf5f-4cbe-8e7c-8464385d68b4 Germany |
| Simplified SCIP | 06d52cca-07e8-4843-ba4a-03b7d2e11d7c Germany |
| 1e05673f-896f-42d5-b20a-f0051a53ff63 Belgium | |
| 23418e32-0e12-4f34-941a-68480653db04 Germany | |
| 291819ff-8411-46f0-b230-8406273b2284 Hungary | |
| 3ad6bbcc-61b4-4afa-ac05-62676d1d5895 Croatia | |
| 48b655ff-4883-41e4-a683-068498cf1ed1 Hungary | |
| 48d9d0ae-71b1-418f-8124-e28a0d37088d Portugal | |
| 4d380e22-b907-43df-ac49-fe75e1084ffc Greece | |
| 8c51bf89-756e-4bf5-8093-d02602b4992e Poland | |
| 8ef4725c-5786-4f41-87b0-aefe77247bc1 France | |
| 9f8be636-b608-463b-85fe-2ee623371501 Netherlands | |
| a4ef6ffd-20a6-4ef1-8376-9a0165480906 Germany | |
| a74911b1-7752-4911-a27c-790d7502543b France | |
| b3363491-8e5d-40e2-b74f-499fb3dabdaf Denmark | |
| b3d68678-c317-45f6-9d4b-c79c6f5ca53a Belgium | |
| b86788f4-5048-4ce9-b03f-c04da83bf69e Norway | |
| bc9f8d7a-f0b0-499f-ae79-bc3e1e647162 Bulgaria | |
| bdc706fb-9557-4d11-85b6-a4dd5a80f478 Spain | |
| c5183471-42e7-498f-bd08-306821836994 Sweden | |
| c6933d30-a632-40ce-a3dd-6104980d77ec Sweden | |
| c7b67daa-c816-4e4f-8b05-95a15ebeea20 Poland | |
| cb192b23-583d-49e8-bfeb-4bd8d5ded7f8 Finland | |
| dbad125b-aeb4-43d3-8789-3d8f372feafc Italy | |
| df11ddeb-8c94-4a81-9f6f-32769662f6d5 Czech Republic | |
| e419fab5-d588-448e-b8a6-aef3d2d9a48b Poland | |
| e4e8998c-a4db-4886-a143-90d50f4bb703 Germany | |
| e9677c38-57a9-45eb-a666-fde2c4fac72f Estonia | |
| Toxic Substances Control Act - TSCA | 2CMT2023-006536 |
| Certificates and Declarations | |
| CCC Certificate | CCC_2019010303150608 |
| CQC Certificate | CQC2019010303150608 |
| cULus Certificate | cULus_20031209-E140448 |
| Declaration of Conformity - CCC | 2020980303000209 |
| Declaration of Conformity - CE | 1SVD981068 |
| Declaration of Conformity - UKCA | 1SVD981068-10 |
| DNV GL Certificate | DNV_GL_TAA00002TS |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 89 mm |
| Package Level 1 Depth / Length | 20 mm |
| Package Level 1 Height | 65 mm |
| Package Level 1 Gross Weight | 0.065 kg |
| Package Level 1 EAN | 4013614555626 |
| Package Level 2 EAN | 4013614580451 |
| External Classifications and Standards | |
| Object Classification Code | K |
| ETIM 7 | EC001439 - Timer relay |
| ETIM 8 | EC001439 - Timer relay |
| ETIM 9 | EC001439 - Timer relay |
| eClass | V11.0 : 27371605 |
| UNSPSC | 39121519 |
| E-Number (Finland) | 2712893 |
| E-Number (Norway) | 4189315 |
| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Screw connection |
| Function delay-on energization (EF003374) | Yes |
| Function delay on de-energization (EF003401) | Yes |
| Function floating contact on energization (EF003378) | Yes |
| Function floating contact on de-energization (EF003402) | Yes |
| Function star-delta (EF003380) | No |
| Function pulse shaping (EF003403) | Yes |
| Function flashing, starting with pause, fixed time (EF003363) | Yes |
| Function flashing, starting with pulse, fixed time (EF003364) | Yes |
| Clock function, starting with pause, variable (EF003365) | No |
| Clock function, starting with pulse, variable (EF003366) | No |
| Remote operation possible (EF003361) | No |
| Suitable as remote control (EF003362) | No |
| Pluggable on auxiliary contact block (EF006952) | No |
| Rated control supply voltage AC 50 Hz (EF003978) | 12 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 12 V |
| Rated control supply voltage DC (EF003980) | 12 V |
| Voltage type for actuating (EF008242) | AC/DC |
| Nominal current (EF000001) | 1 A |
| Time range (EF003384) | 0.05 s |
| Number of outputs, undelayed, normally closed contact (EF006835) | 0 |
| Number of outputs, undelayed, normally open contact (EF006836) | 0 |
| Number of outputs, undelayed, change-over contact (EF006837) | 0 |
| Number of outputs, delayed, normally closed contact (EF006838) | 0 |
| Number of outputs, delayed, normally open contact (EF006839) | 0 |
| Number of outputs, delayed, change-over contact (EF006840) | 0 |
| Outputs, reversible delayed/undelayed (EF006988) | No |
| With semiconductor output (EF003373) | Yes |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | Yes |
| Width (EF000008) | 17.5 mm |
| Height (EF000040) | 70 mm |
| Depth (EF000049) | 63 mm |
