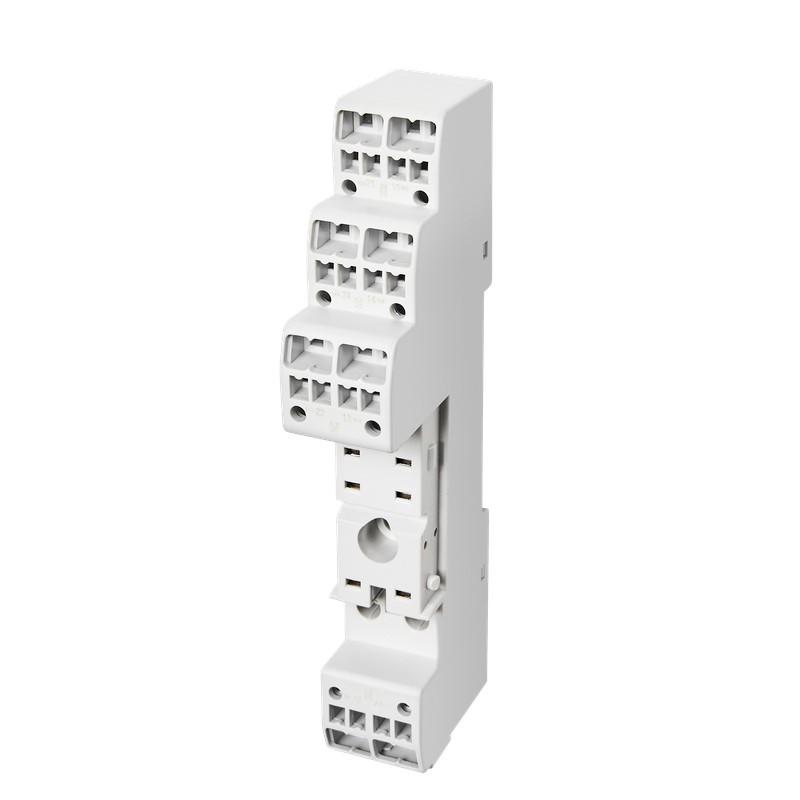

1SVR405650R0310 ABB Base for 1 or 2 Push-in contacts
1SVR405650R0310
ABB
10
Base for 1 or 2 Push-in contacts
CR-PLP Push-in socket for 1c/o or 2c/o CR-P relays
Electronic relays
* Brand new product in its original packaging covered by the warranties and certifications provided by ABB
More info
▲- Extended Product Type:
- CR-PLP
- Product ID:
- 1SVR405650R0310
- EAN:
- 4053546062113
- Catalog Description:
- CR-PLP Push-in socket for 1c/o or 2c/o CR-P relays
- Long Description:
- The CR-PLP socket is from the CR-P (pcb) relay range. The logical socket with safety isolation is suitable for CR-P relays with 1 or 2 c/o (SPDT) output contacts. The socket has push-in connection terminals. Pluggable function modules, holder and marker are available as accessories.
Ordering
- EAN:
- 4053546062113
- Minimum Order Quantity:
- 10 piece
- Customs Tariff Number:
- 85366990
Popular Downloads
- Data Sheet, Technical Information:
- 2CDC110004C0210_05
- Instructions and Manuals:
- 1SVC405650M9040
- CAD Dimensional Drawing:
- 2CDC001079B0201
Dimensions
- Product Net Width:
- 15.8mm
- Product Net Height:
- 98.4mm
- Product Net Depth / Length:
- 42.5mm
- Product Net Weight:
- 0.036kg
Technical
- Function:
- Accessory for interface relays CR-P
- Sub-Function:
- Socket for PCB relays
- Sub-Function 2:
- Standard socket for pcb relay 1 c/o or 2 c/o
- Rated Operational Voltage:
- 250 V
- Output Signal:
- 250 V / 10 A
- Terminal Type:
- Push-in Spring Terminals
- Rated Insulation Voltage (Ui):
- 2000 V
- Wire Stripping Length:
- 10 mm
- Recommended Screw Driver:
- 2.5
- Mounting Position:
- 1
- Standards:
- CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61984
UL 508
Technical UL/CSA
- Connecting Capacity Main Circuit UL/CSA:
- Flexible with Ferrule 2x 20-17 AWG
Rigid 2x 20-16 AWG
Stranded 2 x 20-16 AWG
- Flammability According to UL94:
- V-0
Environmental
- Ambient Air Temperature:
- Operation -40 ... +70 °C
Storage -40 ... +70 °C
- Maximum Operating Altitude Permissible:
- 2000 m
- RoHS Status:
- Following EU Directive 2011/65/EU
Certificates and Declarations
- CSA Certificate:
- CSA_262671_2785566
- cURus Certificate:
- cURus508_E244328
- Declaration of Conformity - CE:
- 1SVD982020-0001
- Declaration of Conformity - UKCA:
- 1SVD982020-1000
Container Information
- Package Level 1 Units:
- 10 piece
- Package Level 1 Width:
- 102 mm
- Package Level 1 Depth / Length:
- 163 mm
- Package Level 1 Height:
- 50 mm
- Package Level 1 Gross Weight:
- 0.401 kg
- Package Level 1 EAN:
- 4053546062120
Classifications
- Object Classification Code:
- K
- ETIM 7:
- EC001456 - Relay socket
- ETIM 8:
- EC001456 - Relay socket
- ETIM 9:
- EC001456 - Relay socket
- eClass:
- V11.0 : 27371603
- UNSPSC:
- 39122335
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALO ELECTRONIC RELAYS EN.pdf | 90 Mbytes |
|
| 1SVR405650R0310 EN_1SVR405650R0310.pdf | 313 Kbytes |
|
