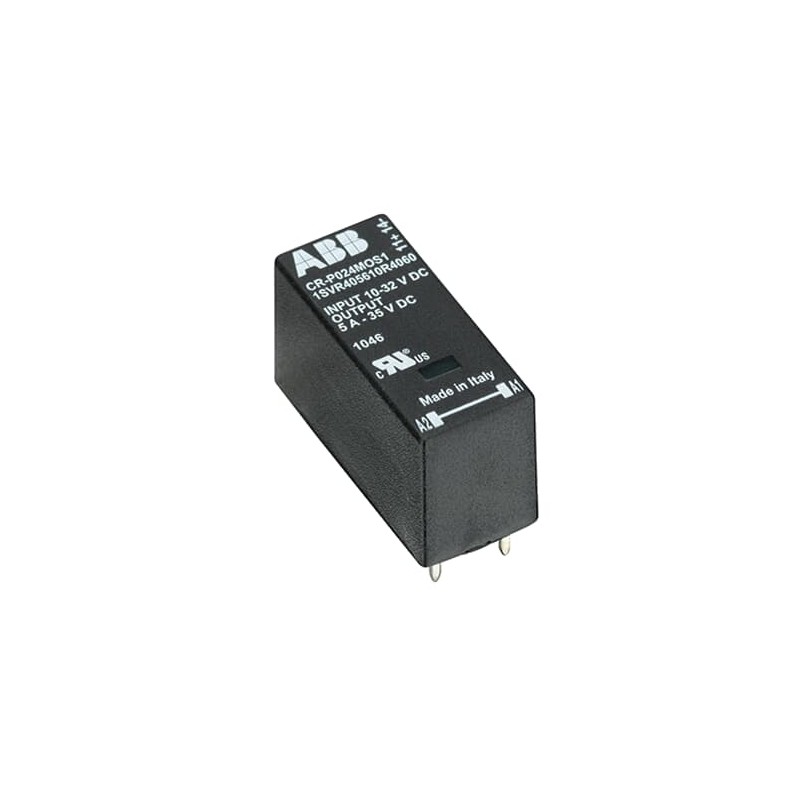

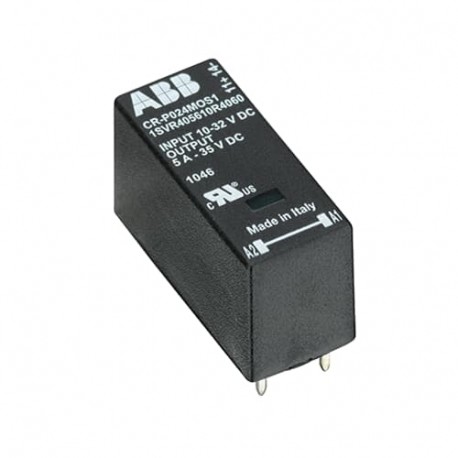

1SVR405610R4060 ABB CR-P024MOS1 PLUG-IN OPTOCOUPLER
1SVR405610R4060
ABB
CR-P024MOS1 PLUG-IN OPTOCOUPLER
CR-P024MOS1 Interface Opto Input= 24 V DC, Output= 5 A/24 V DC
Relays > Optocoupler
Electronic relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| EAN | 4013614509421 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85369095 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CDC110004C0210_05 |
| Instructions and Manuals | 1SVC405600M9000 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| EPLAN Data | 9AAC132576_EPLAN |
| Dimensions | |
| Product Net Width | 12.7 mm |
| Product Net Height | 15.7 mm |
| Product Net Depth / Length | 29 mm |
| Product Net Weight | 0.011 kg |
| Technical | |
| Function | Pluggable pcb optocoupler CR-P |
| Rated Control Supply Voltage (Us) | 10 ... 32 V DC |
| Output | MOSFET |
| Output Signal | 35VDC / 5A |
| Degree of Protection | IP67 |
| Standards | IEC/EN 62314 |
| Environmental | |
| Ambient Air Temperature | Operation -20 ... +50 °C |
| Storage -20 ... +70 °C | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SVD981001-4501 |
| RoHS Declaration | 1SVD981001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006536 |
| Certificates and Declarations | |
| cUR Certificate | cUR_E244330 |
| Declaration of Conformity - CE | 1SVD982057-0000 |
| UR Certificate | UR_E244330 |
| Container Information | |
| Package Level 1 Units | box 10 piece |
| Package Level 1 Width | 316.7 mm |
| Package Level 1 Depth / Length | 15.3 mm |
| Package Level 1 Height | 23.4 mm |
| Package Level 1 Gross Weight | 0.13 kg |
| Package Level 1 EAN | 4013614509353 |
| External Classifications and Standards | |
| ETIM 7 | EC001504 - Optocoupler |
| ETIM 8 | EC001504 - Optocoupler |
| ETIM 9 | EC001504 - Optocoupler |
| eClass | V11.0 : 27371604 |
| UNSPSC | 32111705 |
