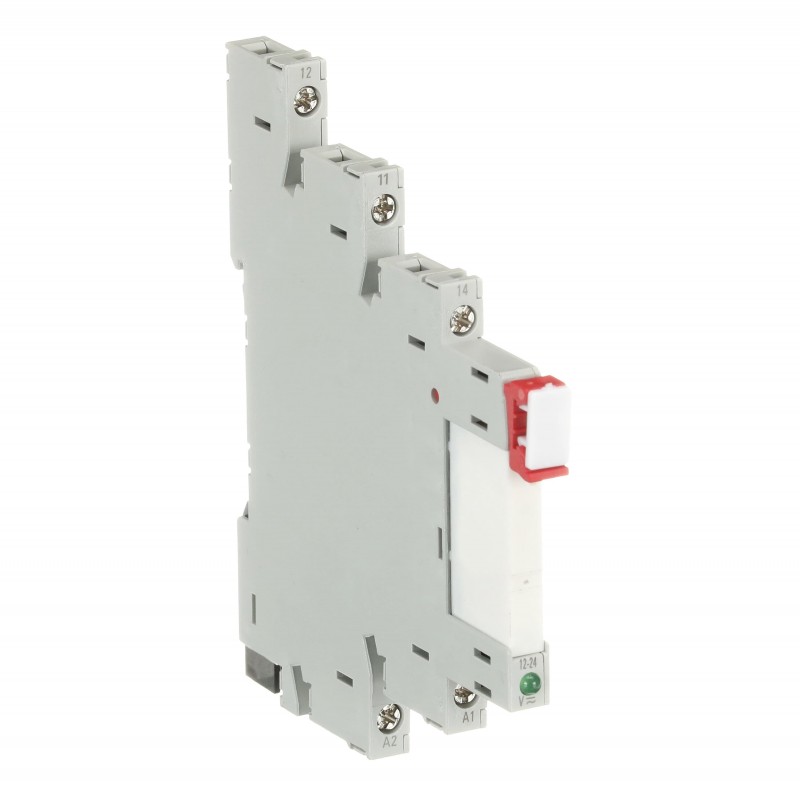

1SVR405541R3120 ABB Relay terminal CR-S024VADC1CRGS
1SVR405541R3120
ABB
Relay terminal CR-S024VADC1CRGS
CR-S024VADC1CRGS Interface relay cpl. 1c/o, A1-A2=24VAC/DC, Output=6A/250VAC
Relays > Switching relay
Electronic relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| EAN | 4013614499296 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CDC110004C0210_05 |
| Instructions and Manuals | 2CDC117022D0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| EPLAN Data | 9AAC179468_EPLAN |
| Dimensions | |
| Product Net Width | 6.3 mm |
| Product Net Height | 76.4 mm |
| Product Net Depth / Length | 88.5 mm |
| Product Net Weight | 0.03 kg |
| Technical | |
| Function | Fully assembled interface relay CR-S |
| Sub-Function | Relay with gold-plated contacts |
| Rated Control Supply Voltage (Us) | 24 V AC/DC |
| Output | 1 C/O (SPDT) Contact |
| Output Signal | 250 V / 6 A |
| Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 6 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 6 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 1 A |
| Degree of Protection | Terminals IP20 |
| Connecting Capacity | Flexible 2.5 mm² |
| Rigid 2.5 mm² | |
| Tightening Torque | 0.5 N·m |
| Wire Stripping Length | 7 mm |
| Mounting on DIN Rail | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.14 |
| IEC/EN 63000 | |
| IEC/EN 61810-1 | |
| IEC/EN 61984 | |
| UL 508 | |
| Technical UL/CSA | |
| Connecting Capacity UL/CSA | Flexible 14 AWG |
| Rigid 14 AWG | |
| Tightening Torque UL/CSA | 4.42 in·lb |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... +70 °C |
| Storage 0 ... +40 °C | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SVD981001-4501 |
| RoHS Declaration | 1SVD981001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006536 |
| Certificates and Declarations | |
| CSA Certificate | CSA_262671-2785865 |
| cURus Certificate | cURus508_E244328 |
| Declaration of Conformity - CE | 1SVD982017-0001 |
| Declaration of Conformity - UKCA | 1SVD982017-1000 |
| Container Information | |
| Package Level 1 Units | box 10 piece |
| Package Level 1 Width | 93 mm |
| Package Level 1 Depth / Length | 66 mm |
| Package Level 1 Height | 81 mm |
| Package Level 1 Gross Weight | 0.32 kg |
| Package Level 1 EAN | 4013614486661 |
| External Classifications and Standards | |
| Object Classification Code | K |
| ETIM 7 | EC001437 - Switching relay |
| ETIM 8 | EC001437 - Switching relay |
| ETIM 9 | EC001437 - Switching relay |
| eClass | V11.0 : 27371601 |
| UNSPSC | 39122331 |
| E-Number (Finland) | 2712371 |
| E-Number (Sweden) | 4001401 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF ABB Time Relays CT-C CT-S CT-D 2024 EN.pdf | 47 Mbytes |
|
