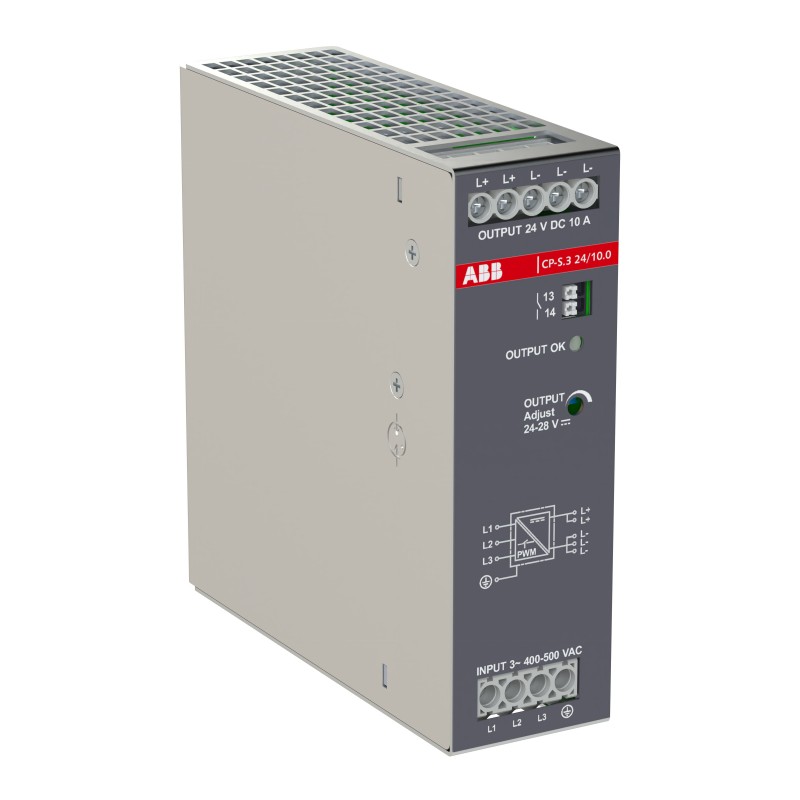

1SVR340667R1000 ABB CP-S.3 24/10.0 Power supply t
1SVR340667R1000
ABB
CP-S.3 24/10.0 Power supply t
CP-S.3 24/10.0 Power supply In:3x400-500VAC Out:DC 24V/10A
Low-voltage industrial components > DC-power supply
Electronic relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85044095 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SAC200439H0001 |
| Instructions and Manuals | 1SVC340560M0000 |
| Dimension Diagram | 2CDC271003V0021 |
| Wiring Diagram | 2CDC272014F0b04 |
| Dimensions | |
| Product Net Width | 40 mm |
| Product Net Height | 129.4 mm |
| Product Net Depth / Length | 126.8 mm |
| Product Net Weight | 0.85 kg |
| Container Information | |
| Package Level 1 Width | 72 mm |
| Package Level 1 Depth / Length | 155 mm |
| Package Level 1 Height | 169 mm |
| Package Level 1 Gross Weight | 0.98 kg |
| Package Level 1 EAN | 4053546170238 |
| Package Level 1 Units | box 1 piece |
| Package Level 2 Width | 400 mm |
| Package Level 2 Depth / Length | 600 mm |
| Package Level 2 Height | 190 mm |
| Package Level 2 Gross Weight | 19.62 kg |
| Package Level 2 Units | carton 19 piece |
| Technical | |
| Function | Switch mode power supply |
| Number of Phases | 3-phase |
| Rated Input Voltage (UIN) | 3x 400 ... 500 V AC |
| Input Voltage (Uin) | 3 ~ 320 ... 575 V AC |
| Rated Frequency (f) | 50/60 Hz |
| Rated Frequency Limits | 45 ... 66 Hz |
| Characteristic of Output | U/I characteristic curve with power reserve |
| Rated Output Power | 240 W |
| Output Power | 240 W |
| Rated Output Voltage | 24 V DC |
| Output Voltage (Uout) | 24 V DC |
| Rated Output Current | 10 A |
| -25 °C ... +60 °C 10 A | |
| Output Current | 10 A |
| Output Current Maximum (Iout) | 15 A |
| Rated Impulse Withstand Voltage (Uimp) | Input Circuit / Output Circuit 8 kV |
| Input Circuit / PE 6 kV | |
| Input Circuit / Relay Contact 8 kV | |
| Output Circuit / PE 0.8 kV | |
| Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 600 V |
| Input Circuit / PE 300 V | |
| Input Circuit / Relay Contact 600 V | |
| Output Circuit / PE 50 V | |
| Degree of Protection | Housing IP20 |
| Terminals IP20 | |
| Pollution Degree | 2 |
| Connecting Capacity Input Circuit | Flexible with Ferrule 0.5 ... 4.0 mm² |
| Flexible 0.5 ... 4.0 mm² | |
| Rigid 0.5 ... 4 mm² | |
| Connecting Capacity Output Circuit | Flexible with Ferrule 0.5 ... 4.0 mm² |
| Flexible 0.5 ... 4.0 mm² | |
| Rigid 0.5 ... 4 mm² | |
| Tightening Torque | Input Circuit 0.79 N·m |
| Output Circuit 0.56 N·m | |
| Wire Stripping Length | 9 mm |
| Input Circuit 9 mm | |
| Output Circuit 9 mm | |
| Recommended Screw Driver | PH1 |
| 0.8 x 4 | |
| Input Circuit / Output Circuit PH1 | |
| Input Circuit / Output Circuit 0.8 x 4 | |
| Minimum Mounting Distance | Other Device Same Type, Horizontal 25 mm |
| Other Device Same Type, Vertical 50 mm | |
| Mounting Position | 1 ... 5 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Standards | IEC/EN 61010-1 |
| IEC/EN 61010-2-201 | |
| CAN/CSA C22.2 No.61010-1 | |
| IEC/EN 61204-3 | |
| IEC/EN 61000-6-2 | |
| IEC/EN 61000-6-3 | |
| IEC/EN 61000-6-4 | |
| EN 55032 | |
| EN 55011 | |
| CAN/CSA C22.2 No.61010-2-201 | |
| Technical UL/CSA | |
| Connecting Capacity Input Circuit UL/CSA | Flexible with Ferrule 20-12 AWG |
| Flexible 20-12 AWG | |
| Rigid 20-12 AWG | |
| Connecting Capacity Output Circuit UL/CSA | Flexible with Ferrule 20-12 AWG |
| Flexible 20-12 AWG | |
| Rigid 20-12 AWG | |
| Tightening Torque UL/CSA | Input Circuit 7 in·lb |
| Output Circuit 5 in·lb | |
| Electromagnetic Compatibility | |
| Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2 | Level 4 Air Discharge 15 kV |
| Level 4 Contact Discharge 8 kV | |
| Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3 | Level 3 10 V/m |
| Surge Immunity acc. to IEC 61000-4-5 | Level 4 Line-to-Ground 4 kV |
| Level 4 Line-to-Line 2 kV | |
| Electromagnetic Compatibility (EMC) | Immunity - Class B |
| Emission - Class B | |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +70 °C |
| Storage -40 ... +85 °C | |
| Maximum Operating Altitude Permissible | 5000 m |
| Without Derating 2000 m | |
| Resistance to Damp Heat acc. to IEC 60068-2-30 | Test Db: 55°C, 2 cycles |
| Resistance to Vibrations | ±0.15 mm 10 ... 58 Hz |
| 10 Sweep Cycles Each Axis: 2g 58 ... 150 Hz | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SVD982001-4501 |
| RoHS Declaration | 1SVD982001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006535 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| cULus Certificate | cULus61010-1_E174460 |
| cULus121201_E523399 | |
| Declaration of Conformity - CE | 1SVD982044 |
| External Classifications and Standards | |
| Object Classification Code | T |
| ETIM 9 | EC002540 - DC-power supply |
| ETIM 10 | EC002540 - DC-power supply |
| eClass | V11.0 : 27040701 |
| UNSPSC | 39121004 |
| E-Number (Finland) | 2712914 |
| E-Number (Norway) | 6600766 |
