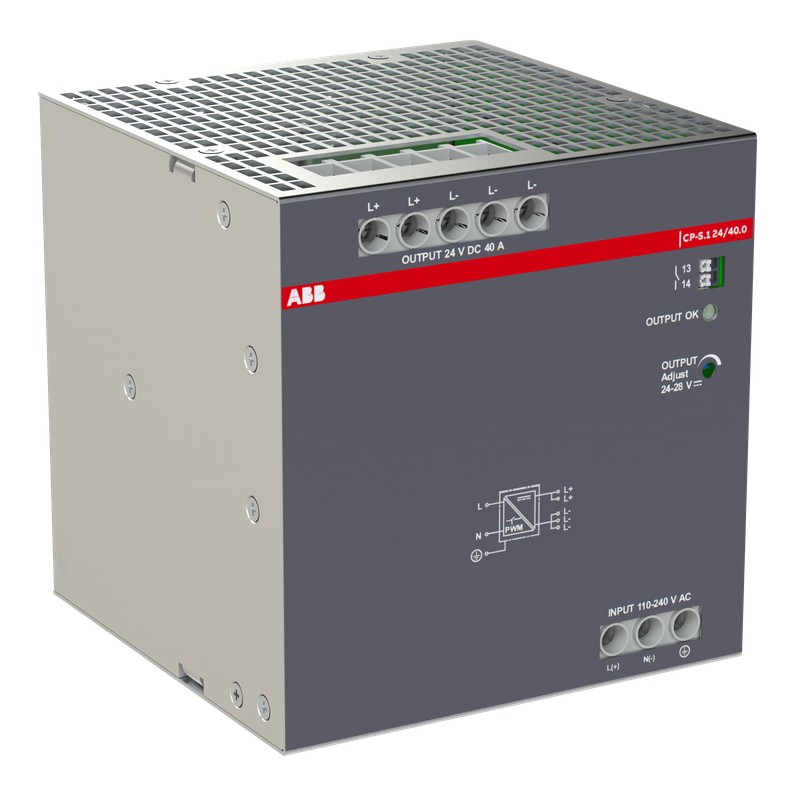

1SVR320861R1000 ABB CP-S.1 24/40.0 Source of alim.24Vdc /40A
1SVR320861R1000
ABB
CP-S.1 24/40.0 Source of alim.24Vdc /40A
CP-S.1 24/40.0 Power supply In:110-240VAC/110-250VDC Out:DC 24V/40A
Low-voltage industrial components > DC-power supply
Electronic relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85044095 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SAC200141H0001 |
| Instructions and Manuals | 1SVC320360M0000 |
| Wiring Diagram | 9AKK107992A8774 |
| Dimensions | |
| Product Net Width | 125 mm |
| Product Net Height | 129.4 mm |
| Product Net Depth / Length | 127 mm |
| Product Net Weight | 2.49 kg |
| Container Information | |
| Package Level 1 Width | 178 mm |
| Package Level 1 Depth / Length | 168 mm |
| Package Level 1 Height | 188 mm |
| Package Level 1 Gross Weight | 2.86 kg |
| Package Level 1 EAN | 4013614561139 |
| Package Level 1 Units | box 1 piece |
| Package Level 2 Width | 350 mm |
| Package Level 2 Depth / Length | 555 mm |
| Package Level 2 Height | 210 mm |
| Package Level 2 Gross Weight | 18.5 kg |
| Package Level 2 Units | carton 6 piece |
| Technical | |
| Function | Switch mode power supply |
| Number of Phases | 1-phase |
| Rated Input Voltage (UIN) | 110 ... 240 V AC |
| 110 ... 250 V DC | |
| Input Voltage (Uin) | 99 ... 264 V AC |
| 99 ... 277 V DC | |
| Typical Input Current | (115 V AC) 9.5 A |
| (230 V AC) 5 A | |
| Hold-up Time | (230 V AC) min. 20 ms |
| Rated Frequency (f) | 50 / 60 Hz |
| DC | |
| Rated Frequency Limits | 45 ... 65 Hz |
| Characteristic of Output | U/I characteristic curve with power reserve |
| Output Power | 960 W |
| Rated Output Voltage | 24 V DC |
| Output Voltage (Uout) | 24 V DC |
| Output Current | 40 A |
| Output Current Maximum (Iout) | 60 A |
| Rated Impulse Withstand Voltage (Uimp) | Input Circuit / Output Circuit 4 kV |
| Input Circuit / PE 4 kV | |
| Input Circuit / Relay Contact 4 kV | |
| Output Circuit / PE 0.8 kV | |
| Output Circuit 0.8 kV | |
| Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 300 V |
| Input Circuit / PE 300 V | |
| Input Circuit / Relay Contact 300 V | |
| Output Circuit / PE 50 V | |
| Degree of Protection | Housing IP20 |
| Terminals IP20 | |
| Pollution Degree | 2 |
| Connecting Capacity Input Circuit | Flexible with Ferrule 0.5 ... 10.0 mm² |
| Flexible 0.5 ... 10.0 mm² | |
| Rigid 0.5 ... 10.0 mm² | |
| Connecting Capacity Output Circuit | Flexible with Ferrule 0.5 ... 10 mm² |
| Flexible 0.5 ... 10.0 mm² | |
| Rigid 0.5 ... 10.0 mm² | |
| Tightening Torque | 2.8 N·m |
| Input Circuit 1.47 N·m | |
| Output Circuit 1.47 N·m | |
| Wire Stripping Length | Auxiliary Circuit 7 mm |
| Input Circuit 10 mm | |
| Output Circuit 10 mm | |
| Recommended Screw Driver | PH2 |
| 1 x 5.5 | |
| Input Circuit / Output Circuit PH2 | |
| Minimum Mounting Distance | Other Device Same Type, Horizontal 25 mm |
| Other Device Same Type, Vertical 50 mm | |
| Mounting Position | 1 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| Technical UL/CSA | |
| Connecting Capacity Input Circuit UL/CSA | Flexible with Ferrule 20-8 AWG |
| Flexible 20-8 AWG | |
| Rigid 20-8 AWG | |
| Connecting Capacity Output Circuit UL/CSA | Flexible with Ferrule 20-8 AWG |
| Flexible 20-8 AWG | |
| Rigid 20-8 AWG | |
| Tightening Torque UL/CSA | Input Circuit 13 in·lb |
| Output Circuit 13 in·lb | |
| Electromagnetic Compatibility | |
| Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2 | Level 4 Air Discharge 15 kV |
| Level 4 Contact Discharge 8 kV | |
| Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3 | Level 3 10 V/m |
| Surge Immunity acc. to IEC 61000-4-5 | Level 4 Line-to-Ground 4 kV |
| Level 4 Line-to-Line 2 kV | |
| Electromagnetic Compatibility (EMC) | Immunity - Class B |
| Emission - Class B | |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +70 °C |
| Storage -40 ... +85 °C | |
| Maximum Operating Altitude Permissible | 5000 m |
| Resistance to Damp Heat acc. to IEC 60068-2-30 | Test Db: 55°C, 2 cycles |
| Resistance to Shock acc. to IEC 60068-2-27 | 30g 3 shocks 6 ms |
| Resistance to Vibrations | ±0.15 mm 10 ... 58 Hz |
| 10 Sweep Cycles Each Axis: 2g 58 ... 150 Hz | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SVD982001-4501 |
| RoHS Declaration | 1SVD982001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 8813066c-d5b7-4c77-a7a3-21675aef727a Germany |
| Simplified SCIP | 0499dcb8-d039-4ae0-af28-93e61c8c5a46 Netherlands |
| 0814bc51-d9ed-4538-aba7-c662c0a50724 Germany | |
| 140e05d1-0b44-4c38-929b-0f9a823a64ee Poland | |
| 184cf0db-6a96-47b6-b74c-a4e5de367fec Czech Republic | |
| 1fe8d86b-a06a-4f43-aa11-e03354fc09fd Germany | |
| 2789a533-a6ae-420d-b00f-90ea2d3b0182 Belgium | |
| 2794299e-df1e-4923-acc7-5030e3919aac Spain | |
| 28492e48-c5cf-40fb-8968-ed8d332f8e21 Norway | |
| 2869396b-8ba5-4cd7-b361-15e254a3b60a Finland | |
| 301bb389-d362-48cd-8e19-05233544efc5 Sweden | |
| 32a555d7-e6f9-4080-803e-2821d0f3b49a Sweden | |
| 469e4d47-2a55-4d05-a2b4-fd02c5ef94ce Hungary | |
| 51ddeb05-125e-4580-8083-a4f30f746dc9 France | |
| 527ebfc2-a851-4eef-9127-fd6c40bb54b9 Belgium | |
| 5b4e7758-f927-4eb7-84b8-a46f7d2f1234 Croatia | |
| 6bde752d-fa75-45ad-b6c9-5a547c4bb365 Hungary | |
| 8b7117d7-a82c-49e5-a11d-984f4617f508 Portugal | |
| 8f7b2cc5-3519-4546-bf97-08c0dd74b2f3 Estonia | |
| b66c890a-f66e-4cd8-b5f8-533f1063f3cb Greece | |
| b706b933-404d-4fc2-b718-58998c0d2e8b Denmark | |
| b7706c17-adc5-4a7e-aef4-960d2a035c96 Poland | |
| be7abafa-215e-464c-88ab-c5b86f7d2885 Bulgaria | |
| cce756a7-68f4-4ea6-8c5e-50bfc0ced45c Germany | |
| cd5d2142-9c5f-4416-a11c-3420b8cf0444 Poland | |
| d20edd36-46ab-4912-b8d6-9d1483d469f4 Italy | |
| da528829-4b26-44dc-8fc6-5570debd7329 Germany | |
| fb8d8208-0b11-43b7-8946-73f425122e70 France | |
| Toxic Substances Control Act - TSCA | 2CMT2023-006535 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| CB Certificate | CB_DE_2-029958-M1 |
| cULus Certificate | cULus61010-1_E174460 |
| cULus121201_E523399 | |
| Declaration of Conformity - CE | 1SVD982043-00 |
| Declaration of Conformity - UKCA | 1SVD982043-10 |
| DNV Certificate | DNV_TAA0000300 |
| SEMI Certificate | 9AKK108470A0207 |
| External Classifications and Standards | |
| Object Classification Code | T |
| ETIM 9 | EC002540 - DC-power supply |
| ETIM 10 | EC002540 - DC-power supply |
| eClass | V11.0 : 27040701 |
| UNSPSC | 39121004 |
| E-Number (Finland) | 2712890 |
| E-Number (Norway) | 6608904 |
| E-Number (Sweden) | 5213658 |
| Feature Name | Feature Value |
|---|---|
| Voltage type (supply voltage) (EF002991) | AC/DC |
| 1st secondary output voltage (EF006792) | 24 V |
| 2nd secondary output voltage (EF006797) | 0 V |
| 3rd secondary output voltage (EF006800) | 0 V |
| Max. output current 1 (EF008284) | 60 A |
| Max. output current 2 (EF008285) | 0 A |
| Max. output current 3 (EF008286) | 0 A |
| Secondary voltage adjustable (EF007002) | No |
| Nominal value output voltage 1 (EF009393) | 24 V |
| Nominal value output voltage 2 (EF009394) | 0 V |
| Nominal value output voltage 3 (EF009395) | 0 V |
| Nominal value output current 1 (EF009396) | 40 A |
| Nominal value output current 2 (EF009397) | 0 A |
| Nominal value output current 3 (EF009398) | 0 A |
| Short-circuit-proof (EF007332) | Yes |
| Rated supply voltage AC 50 Hz (EF007076) | 264 V |
| Rated supply voltage AC 60 Hz (EF007077) | 264 V |
| Rated supply voltage DC (EF007078) | 277 V |
| Output voltage stabilized (EF003092) | Yes |
| Power consumption (EF000346) | 1022 VA |
| Power output (EF003034) | 960 W |
| Stabilized (EF005302) | Yes |
| Type of electric connection (EF003961) | Screw connection |
| Suitable for rail mounting (EF003972) | Yes |
| Wall mounting possible (EF003973) | No |
| Modular version (EF001126) | No |
| Built-in width (EF000846) | 125 mm |
| Built-in height (EF000332) | 129.4 mm |
| Direct mounting possible (EF005689) | No |
| Width (EF000008) | 125 mm |
| Height (EF000040) | 129.4 mm |
| Depth (EF000049) | 127 mm |
| Suitable for safety functions (EF001597) | No |
| SIL according to IEC 61508 (EF009889) | None |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Degree of protection (IP) (EF005474) | IP20 |
| Degree of protection (NEMA) (EF011959) | 1 |
