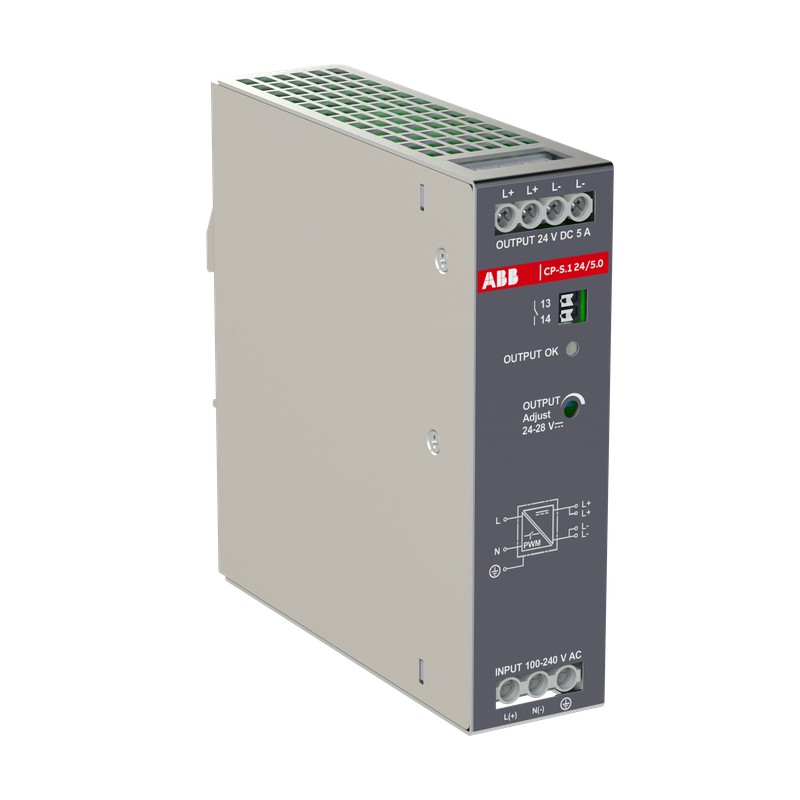

1SVR320561R1000 ABB CP-S.1 24/5.0 Power Supply.24Vdc/5A
1SVR320561R1000
ABB
CP-S.1 24/5.0 Power Supply.24Vdc/5A
CP-S.1 24/5.0 Power supply In:100-240VAC/100-250VDC Out:DC 24V/5A
Low-voltage industrial components > DC-power supply
Electronic relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85044095 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SAC200138H0001 |
| Instructions and Manuals | 1SVC320360M0000 |
| Wiring Diagram | 9AKK107992A8774 |
| Dimensions | |
| Product Net Width | 35.5 mm |
| Product Net Height | 129.4 mm |
| Product Net Depth / Length | 127 mm |
| Product Net Weight | 0.69 kg |
| Container Information | |
| Package Level 1 Width | 64 mm |
| Package Level 1 Depth / Length | 155 mm |
| Package Level 1 Height | 169 mm |
| Package Level 1 Gross Weight | 0.8 kg |
| Package Level 1 EAN | 4013614561108 |
| Package Level 1 Units | box 1 piece |
| Package Level 2 Width | 393 mm |
| Package Level 2 Depth / Length | 600 mm |
| Package Level 2 Height | 190 mm |
| Package Level 2 Gross Weight | 17.5 kg |
| Package Level 2 Units | carton 21 piece |
| Technical | |
| Function | Switch mode power supply |
| Number of Phases | 1-phase |
| Rated Input Voltage (UIN) | 100 ... 240 V AC |
| 100 ... 250 V DC | |
| Input Voltage (Uin) | 85 ... 264 V AC |
| 90 ... 277 V DC | |
| Typical Input Current | (115 V AC) 1.24 A |
| (230 V AC) 0.67 A | |
| Hold-up Time | (230 V AC) min. 20 ms |
| Rated Frequency (f) | 50 / 60 Hz |
| DC | |
| Rated Frequency Limits | 45 ... 65 Hz |
| Characteristic of Output | U/I characteristic curve with power reserve |
| Rated Output Power | 120 W |
| Output Power | 120 W |
| Rated Output Voltage | 24 V DC |
| Output Voltage (Uout) | 24 V DC |
| Output Current | 5 A |
| Output Current Maximum (Iout) | 7.5 A |
| Rated Impulse Withstand Voltage (Uimp) | Input Circuit / Output Circuit 4 kV |
| Input Circuit / PE 4 kV | |
| Input Circuit / Relay Contact 4 kV | |
| Output Circuit / PE 0.8 kV | |
| Output Circuit 0.8 kV | |
| Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 300 V |
| Input Circuit / PE 300 V | |
| Input Circuit / Relay Contact 300 V | |
| Output Circuit / PE 50 V | |
| Degree of Protection | Housing IP20 |
| Terminals IP20 | |
| Pollution Degree | 2 |
| Connecting Capacity Input Circuit | Flexible with Ferrule 0.5 ... 4.0 mm² |
| Flexible 0.5 ... 4.0 mm² | |
| Rigid 0.5 ... 4 mm² | |
| Connecting Capacity Output Circuit | Flexible with Ferrule 0.5 ... 4.0 mm² |
| Flexible 0.5 ... 4.0 mm² | |
| Rigid 0.5 ... 4 mm² | |
| Tightening Torque | Input Circuit 0.5 N·m |
| Output Circuit 1.13 N·m | |
| Wire Stripping Length | Auxiliary Circuit 7 mm |
| Input Circuit 9 mm | |
| Output Circuit 9 mm | |
| Recommended Screw Driver | PH1 |
| 0.8 x 4 | |
| Input Circuit / Output Circuit PH1 | |
| Minimum Mounting Distance | Other Device Same Type, Horizontal 30 mm |
| Other Device Same Type, Vertical 50 mm | |
| Mounting Position | 1 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| Technical UL/CSA | |
| Connecting Capacity Input Circuit UL/CSA | Flexible with Ferrule 20-12 AWG |
| Flexible 20-12 AWG | |
| Rigid 20-12 AWG | |
| Connecting Capacity Output Circuit UL/CSA | Flexible with Ferrule 20-12 AWG |
| Flexible 20-12 AWG | |
| Rigid 20-12 AWG | |
| Tightening Torque UL/CSA | Input Circuit 4.4 in·lb |
| Output Circuit 4.4 in·lb | |
| Electromagnetic Compatibility | |
| Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2 | Level 4 Air Discharge 15 kV |
| Level 4 Contact Discharge 8 kV | |
| Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3 | Level 3 10 V/m |
| Surge Immunity acc. to IEC 61000-4-5 | Level 4 Line-to-Ground 4 kV |
| Level 4 Line-to-Line 2 kV | |
| Electromagnetic Compatibility (EMC) | Immunity - Class B |
| Emission - Class B | |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +70 °C |
| Storage -40 ... +85 °C | |
| Maximum Operating Altitude Permissible | 5000 m |
| Resistance to Damp Heat acc. to IEC 60068-2-30 | Test Db: 55°C, 2 cycles |
| Resistance to Shock acc. to IEC 60068-2-27 | 30g 3 shocks 6 ms |
| Resistance to Vibrations | ±0.15 mm 10 ... 58 Hz |
| 10 Sweep Cycles Each Axis: 2g 58 ... 150 Hz | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SVD982001-4501 |
| RoHS Declaration | 1SVD982001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 8bd8349c-f365-42fd-a562-b0751a6f1ad4 Germany |
| Simplified SCIP | 0232669e-3d6c-4fd0-a729-6d7545ed3b94 Greece |
| 0ba681f5-dfd7-4ad4-9448-f85e41b38282 Portugal | |
| 295cfd4a-5f91-4813-b0bb-095a43fa8c86 Spain | |
| 43cba478-0098-45bf-8eb7-8c55315409fd Italy | |
| 50c86865-2701-4c23-9f3d-5a1f16141b95 France | |
| 6e4c12b6-466d-4e7b-98df-a83e1f1616bd Poland | |
| 6ed35396-3e0a-4452-9225-4cc0453e2dd7 Bulgaria | |
| 723609e7-7d78-403d-a39d-859b768defb4 Germany | |
| 7250de46-6d86-4345-94f3-a0531d7438c1 Denmark | |
| 75690a43-948a-4de6-a841-c220d36da681 Finland | |
| 7cc40fcf-72f8-46e9-8743-bb349b17a932 Germany | |
| 7cf3823b-ec73-42a2-9787-a81f2467df1d Poland | |
| 7f035a61-0957-4db1-b935-8b2ee42e31c1 Hungary | |
| 94ce00a8-5e90-4cba-88a0-2a4d9fe51d87 Estonia | |
| 9ade70c3-273a-4961-9ce2-b48cabd6d455 Sweden | |
| 9ff3f566-d4d9-45c8-910a-16486106dd0e Czech Republic | |
| a2246770-94c5-400f-95ea-785f924b8eb5 Belgium | |
| a2a75472-3dcd-4a8f-aa8f-1e9ade06ee09 Sweden | |
| b149fa4f-9b4e-43b1-8730-cba0d01c7d20 France | |
| b3712880-cae7-49ff-80c5-2b2ae7fa6684 Germany | |
| b5fd023f-1587-4f9e-813a-a20647be1e8e Germany | |
| cebfb3f9-4425-4f72-8e45-c73f22c263cb Norway | |
| e104146d-5794-4aed-9835-a7675c6a19ea Hungary | |
| eb550ecc-4f00-4cec-858b-b6e2b828dda5 Netherlands | |
| eeef3c98-c023-4464-ac33-2ca9541de67d Croatia | |
| f1a5763a-f629-4192-a12d-305aa7a77fa5 Belgium | |
| fabaf4bb-3c1b-4122-ae68-4e7d827aeeb6 Poland | |
| Toxic Substances Control Act - TSCA | 2CMT2023-006535 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| CB Certificate | CB_DE_2-029510 |
| cULus Certificate | cULus61010-1_E174460 |
| cULus121201_E523399 | |
| Declaration of Conformity - CE | 1SVD982043-00 |
| Declaration of Conformity - UKCA | 1SVD982043-10 |
| DNV Certificate | DNV_TAA0000300 |
| SEMI Certificate | 9AKK108470A0203 |
| External Classifications and Standards | |
| Object Classification Code | T |
| ETIM 9 | EC002540 - DC-power supply |
| ETIM 10 | EC002540 - DC-power supply |
| eClass | V11.0 : 27040701 |
| UNSPSC | 39121004 |
| E-Number (Finland) | 2712887 |
| E-Number (Norway) | 6608901 |
| E-Number (Sweden) | 5213655 |
| Feature Name | Feature Value |
|---|---|
| Voltage type (supply voltage) (EF002991) | AC/DC |
| 1st secondary output voltage (EF006792) | 24 V |
| 2nd secondary output voltage (EF006797) | 0 V |
| 3rd secondary output voltage (EF006800) | 0 V |
| Max. output current 1 (EF008284) | 7.5 A |
| Max. output current 2 (EF008285) | 0 A |
| Max. output current 3 (EF008286) | 0 A |
| Secondary voltage adjustable (EF007002) | No |
| Nominal value output voltage 1 (EF009393) | 24 V |
| Nominal value output voltage 2 (EF009394) | 0 V |
| Nominal value output voltage 3 (EF009395) | 0 V |
| Nominal value output current 1 (EF009396) | 5 A |
| Nominal value output current 2 (EF009397) | 0 A |
| Nominal value output current 3 (EF009398) | 0 A |
| Short-circuit-proof (EF007332) | Yes |
| Rated supply voltage AC 50 Hz (EF007076) | 264 V |
| Rated supply voltage AC 60 Hz (EF007077) | 264 V |
| Rated supply voltage DC (EF007078) | 277 V |
| Output voltage stabilized (EF003092) | Yes |
| Power consumption (EF000346) | 132 VA |
| Power output (EF003034) | 120 W |
| Stabilized (EF005302) | Yes |
| Type of electric connection (EF003961) | Screw connection |
| Suitable for rail mounting (EF003972) | Yes |
| Wall mounting possible (EF003973) | No |
| Modular version (EF001126) | No |
| Built-in width (EF000846) | 35.5 mm |
| Built-in height (EF000332) | 129.4 mm |
| Direct mounting possible (EF005689) | No |
| Width (EF000008) | 35.5 mm |
| Height (EF000040) | 129.4 mm |
| Depth (EF000049) | 127 mm |
| Suitable for safety functions (EF001597) | No |
| SIL according to IEC 61508 (EF009889) | None |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Degree of protection (IP) (EF005474) | IP20 |
| Degree of protection (NEMA) (EF011959) | 1 |
