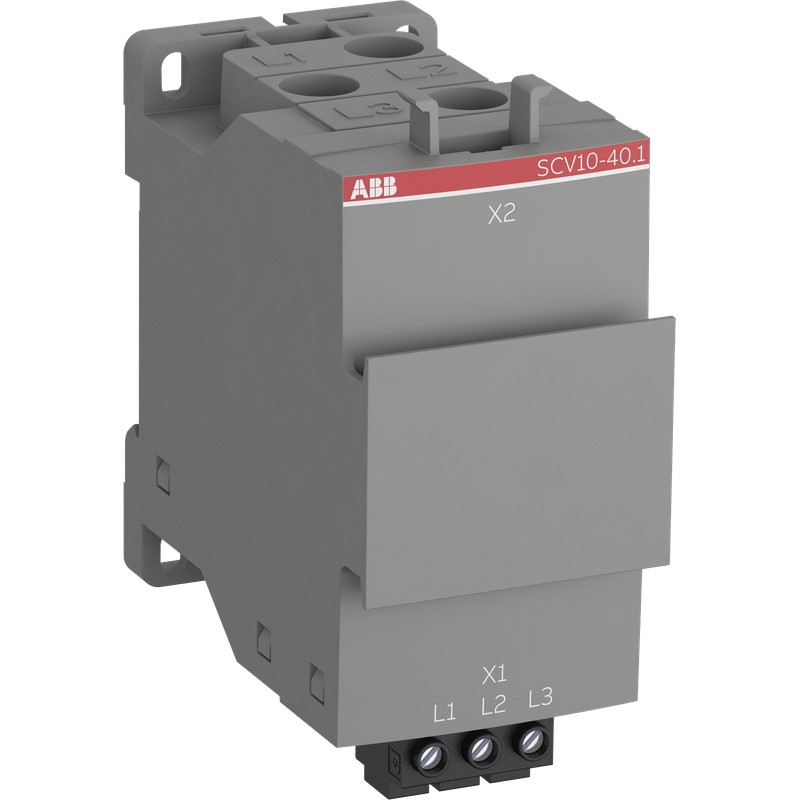

1SVM320010R0000 ABB SCV10-40 Current Voltage sensor
1SVM320010R0000
ABB
SCV10-40 Current - Voltage sensor
SCV10-40 Current - Voltagesensor 40 A, 690 V AC
Low-voltage industrial components > Accessories/spare parts for low-voltage switch technology
Contactors and overload relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Popular Downloads | |
| EPLAN Data | 9AAF605146_EPLAN |
| Data Sheet, Technical Information | 2CDC100017M0201 |
| Instructions and Manuals | 1SVC320010M0000 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 45 mm |
| Product Net Depth / Length | 80 mm |
| Product Net Height | 82 mm |
| Product Net Weight | 0.23 kg |
| Technical | |
| Number of Poles | 3P |
| Standards | IEC/EN 60947-4-1 |
| IEC/EN 60947-1 | |
| Rated Operational Voltage | 690 V AC |
| 400 V AC | |
| 480 V AC | |
| 277 V AC | |
| Rated Frequency (f) | Main Circuit 50 Hz |
| Main Circuit 60 Hz | |
| Rated Operational Current (Ie) | 40 A |
| Power Loss | Approximately 0.48 W |
| Connecting Capacity | 1x 0.2-2.5 mm² |
| Wire Stripping Length | 8 mm |
| Degree of Protection | IP20 |
| Tightening Torque | 0.5 ... 0.6 N·m |
| Terminal Type | Screw Terminals |
| Suitable For | 1SVM120012R0000 |
| Product Name | Current - Voltagesensor |
| Technical UL/CSA | |
| Connecting Capacity UL/CSA | 24 ... 12 AWG |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +60 °C |
| Storage -40 ... +70 °C | |
| Pollution Degree | 3 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 1SVD981001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| cULus Certificate | E48139 |
| Declaration of Conformity - CE | 1SVD981074-00 |
| UL Certificate | E48139 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 130 mm |
| Package Level 1 Depth / Length | 50 mm |
| Package Level 1 Height | 124 mm |
| Package Level 1 Gross Weight | 0.275 kg |
| Package Level 1 EAN | 4053546041828 |
| External Classifications and Standards | |
| Object Classification Code | B |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 39121552 |
| IDEA Granular Category Code (IGCC) | 4776 >> Electronic motor control and protection device |
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Communication and measuring function |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
Datasheet - PDF
