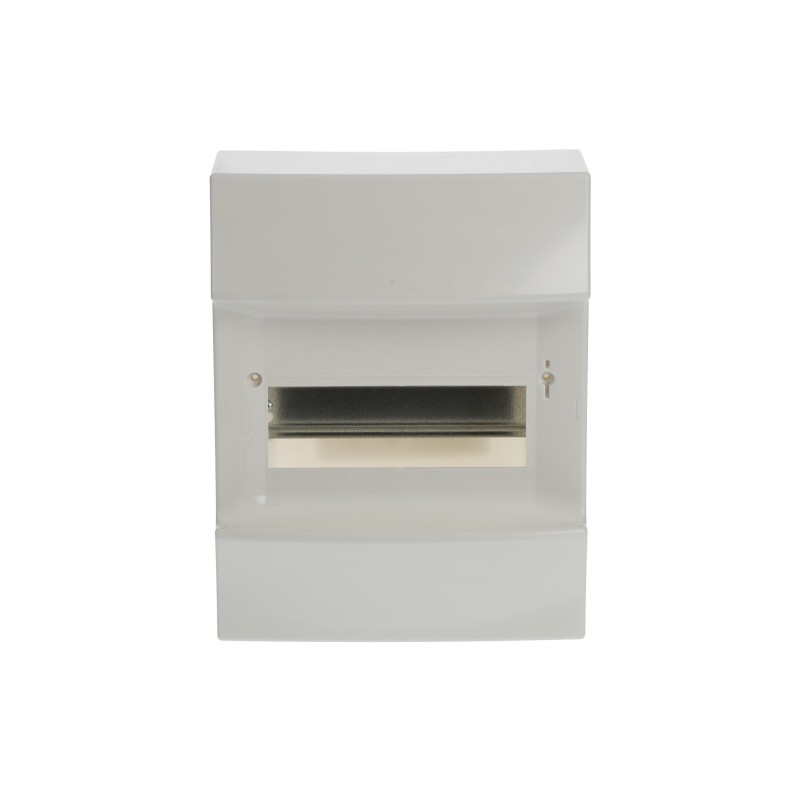

1SPE007717F0300 41P08X10 ABB MISTRAL41W, 8M WITHOUT DOOR
1SPE007717F0300
41P08X10
ABB
MISTRAL41W, 8M WITHOUT DOOR
Consumer unit MISTRAL41W, Surface mounting, 8 modules, 1 row(s), IP30, Door: Without Door, Dimensions: 262 mm x 207 mm x 119 mm
Boxes and cabinets
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Technical | |
|---|---|
| Number of Line Terminals | 0 |
| Number of Rows | 1 |
| Closure Type | Snap Function |
| Configuration Type | Assembled with DIN-rail |
| Cover Plate Type | None |
| Door Type | Without Door |
| DIN Place Units | 8 |
| Terminal Type | No Terminals |
| Electrical | |
| Power Loss | 17.7 W |
| Design | |
| Enclosure Material | Thermoplastic |
| Housing Material | Plastic |
| Transparent Door | No |
| Cover Style | with Notch |
| RAL Number | RAL 9016 - Traffic White |
| Color | White |
| Number of Modules | 8 |
| Material Compliance | |
| RoHS Declaration | 9AKK108468A2419 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20221015 |
| REACH Declaration | 9AKK108469A7731 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Ambient Air Temperature | Around the Enclosure -15 ... 60 °C |
| Degree of Protection | IP30 |
| Protection Class | Isolated (Class II) |
| Environmental Information | 9AJK000330 |
| Dimensions | |
| Width in Number of Modular Spacings | 8 |
| Product Net Width | 207 mm |
| Product Net Height | 262 mm |
| Product Net Depth / Length | 119 mm |
| Product Net Weight | 0.637 kg |
| Built-In Depth (t2) | 74 mm |
| Engineering | |
| Building Information Modeling – BIM | 9AKK107046A8396 |
| Ordering | |
| Package Level 1 Units | box 7 piece |
| Package Level 1 Gross Weight | 4.455 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK108468A2419 |
| Installation | |
| Instructions and Manuals | 1SPC8010I5M0201 |
| Mounting Type | Surface mounting |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SLC801013D0201 |
| External Classifications and Standards | |
| ETIM 9 | EC000214 - Small distribution board |
| ETIM 10 | EC000214 - Small distribution board |
| eClass | V11.0 : 27142409 |
| Object Classification Code | Not applicable |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB ELECTRICAL CONSUMER EN.pdf | 14 Mbytes |
|
