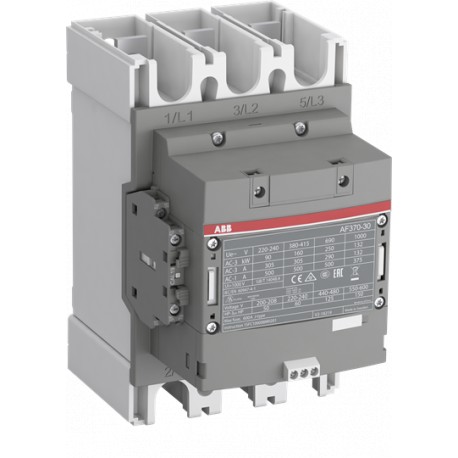

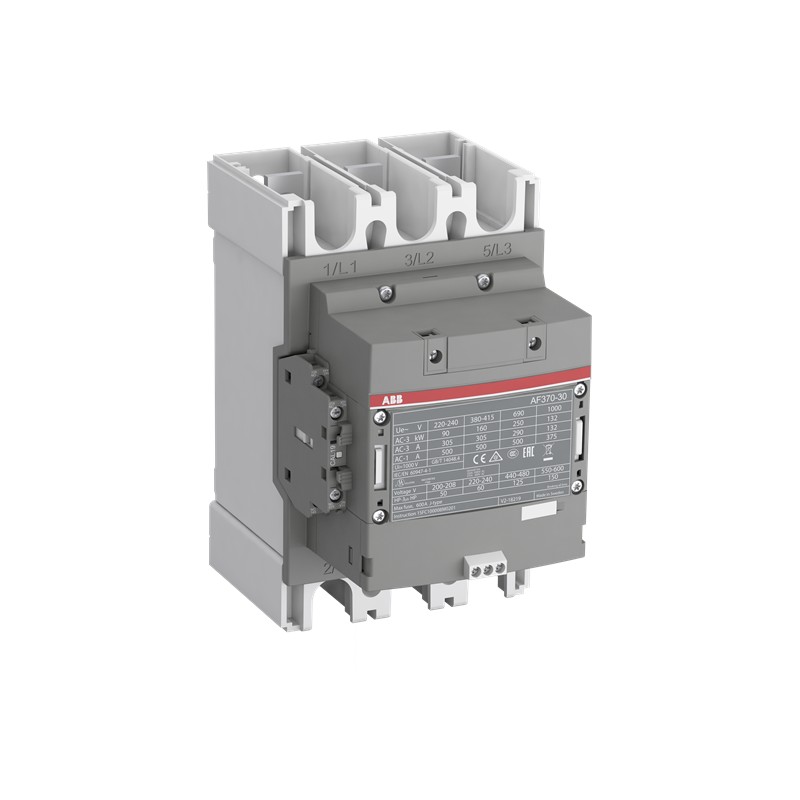

1SFL607002R3311 ABB AF370-30-11-33 Contactor
1SFL607002R3311
ABB
AF370-30-11-33 Contactor
Low-voltage industrial components > Power contactor, AC switching
Contactors and overload relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Popular Downloads | |
| EPLAN Data | 9AAC175204_EPLAN |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Data Sheet, Technical Information (Part 2) | 1SAC200017M0002 |
| Instructions and Manuals | 1SFC100008M0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Depth / Length | 195.5 mm |
| Product Net Height | 225 mm |
| Product Net Weight | 3.9 kg |
| Technical | |
| Number of Main Contacts NO | 3 |
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Auxiliary Contacts NC | 1 |
| Number of Poles | 3P |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Frequency (f) | Main Circuit 60 Hz |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 600 A |
| Rated Operational Current AC-1 (Ie) | (1000 V) 60 °C 350 A |
| (1000 V) 70 °C 290 A | |
| (690 V) 40 °C 600 A | |
| (690 V) 70 °C 400 A | |
| Rated Operational Current AC-3 (Ie) | (415 V) 55 °C 370 A |
| (440 V) 55 °C 370 A | |
| (500 V) 55 °C 350 A | |
| (690 V) 55 °C 315 A | |
| (1000 V) 55 °C 141 A | |
| (380 / 400 V) 55 °C 370 A | |
| (220 / 230 / 240 V) 55 °C 370 A | |
| Rated Operational Power AC-3 (Pe) | (415 V) 200 kW |
| (440 V) 200 kW | |
| (500 V) 250 kW | |
| (690 V) 315 kW | |
| (1000 V) 200 kW | |
| (380 / 400 V) 200 kW | |
| (220 / 230 / 240 V) 110 kW | |
| Rated Breaking Capacity AC-3 | 8 x Ie AC-3 |
| Rated Making Capacity AC-3 | 10 x Ie AC-3 |
| Short-Circuit Protective Devices | gG Type Fuses 630 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 2960 A |
| at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 600 A | |
| at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 1208 A | |
| at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 3700 A | |
| at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 1709 A | |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V |
| acc. to UL/CSA 1000 V | |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Maximum Electrical Switching Frequency | (AC-1) 300 cycles per hour |
| (AC-2 / AC-4) 150 cycles per hour | |
| (AC-3) 300 cycles per hour | |
| Mechanical Durability | 5 million |
| Maximum Mechanical Switching Frequency | 300 cycles per hour |
| Coil Operating Limits | (acc. to IEC 60947-4-1) Uc (at θ ≤ 70 °C) |
| Rated Control Circuit Voltage (Uc) | 50 Hz 100 ... 250 V |
| 60 Hz 100 ... 250 V | |
| DC Operation 100 ... 250 V | |
| Coil Consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 17.5 V·A |
| Holding at Max. Rated Control Circuit Voltage 60 Hz 17.5 V·A | |
| Pull-in at Max. Rated Control Circuit Voltage 50 Hz 385 V·A | |
| Pull-in at Max. Rated Control Circuit Voltage 60 Hz 385 V·A | |
| Pull-in at Max. Rated Control Circuit Voltage DC 410 W | |
| Power Loss | at Rated Operating Conditions per Pole 27 W |
| Operate Time | Between Coil De-energization and NO Contact Opening 37 ... 47 ms |
| Between Coil Energization and NO Contact Closing 25 ... 55 ms | |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP40 |
| Terminal Type | Main Circuit: Bars |
| Product Name | Block Contactor |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | Main Circuit 1000 V |
| General Use Rating UL/CSA | (1000 V AC) 520 A |
| Horsepower Rating UL/CSA | (200 ... 208 V AC) Three Phase 50 Hp |
| (200 V AC) Three Phase 125 hp | |
| (208 V AC) Three Phase 125 hp | |
| (220 ... 240 V AC) Three Phase 60 Hp | |
| (220 ... 240 V AC) Three Phase 150 hp | |
| (440 ... 480 V AC) Three Phase 125 Hp | |
| (440 ... 480 V AC) Three Phase 300 hp | |
| (550 ... 600 V AC) Three Phase 150 Hp | |
| (550 ... 600 V AC) Three Phase 350 hp | |
| Environmental | |
| Ambient Air Temperature | Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 55 °C |
| Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C | |
| Close to Contactor for Storage -40 ... 70 °C | |
| Maximum Operating Altitude Permissible | Without Derating 3000 m |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ABB EcoSolutions | |
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | Non-hazardous waste is sent to a landfill, where there is no alternative option available within 100km of a facility |
| End Of Life Disassembling Instructions | 1SFC100112M0002 |
| Environmental Product Declaration - EPD | 1SFC100104D0201 |
| Improved Energy Efficiency for Customers | Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 76.3 % |
| Sustainable Material Content in Product (wt. %) | Recycled Metal - 33 % |
| Certificates and Declarations | |
| A2L Certificate – UL | 9AKK108468A6695 |
| ABS Certificate | 14-LD1092198-PDA |
| BV Certificate | BV_36353_A0BV |
| CB Certificate | SE-89316 |
| CCS Certificate | GB14T00030 |
| CQC Certificate | CQC2014010304676670 |
| CQC2014010304673866 | |
| Declaration of Conformity - CCC | 2020980304001305 |
| 2020980304001068 | |
| Declaration of Conformity - CE | 2CMT2015-005439 |
| Declaration of Conformity - UKCA | 2CMT2020-006118 |
| DNV Certificate | DNV_E-14043 |
| EAC Certificate | 9AKK107046A8618 |
| GL Certificate | GL_95073-14HH |
| LR Certificate | LR_14_70011(E1) |
| PRS Certificate | TE_2092_880423_16 |
| RINA Certificate | ELE060313XG_002 |
| RMRS Certificate | 9AKK107045A6978 |
| UL Certificate | 20121217-E36588 |
| UL Listing Card | UL_E36588 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 263 mm |
| Package Level 1 Depth / Length | 203 mm |
| Package Level 1 Height | 289 mm |
| Package Level 1 Gross Weight | 4.6 kg |
| Package Level 1 EAN | 7320500504598 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 7 | EC000066 - Power contactor, AC switching |
| ETIM 8 | EC000066 - Power contactor, AC switching |
| ETIM 9 | EC000066 - Power contactor, AC switching |
| eClass | V11.0 : 27371003 |
| UNSPSC | 39121529 |
| IDEA Granular Category Code (IGCC) | 4758 >> Iec Contactors |
| E-Number (Finland) | 3707535 |
| E-Number (Sweden) | 3210543 |
| Feature Name | Feature Value |
|---|---|
| Rated control supply voltage AC 50 Hz (EF003978) | 100 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 100 V |
| Rated control supply voltage DC (EF003980) | 100 V |
| Voltage type for actuating (EF008242) | AC/DC |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 600 A |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 370 A |
| Rated operation power at AC-3, 400 V (EF001364) | 200 kW |
| Rated operation power NEMA (EF011960) | 44.7420 kW |
| Modular version (EF001126) | No |
| Number of auxiliary contacts as normally open contact (EF001376) | 1 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Number of normally open contacts as main contact (EF001374) | 3 |
