1SFL547263R1122 ABB AF265B-40-22-11 24-60V

0/5 - 0 Opiniones

Reference: 1SFL547263R1122

Manufacturer: ABB

Description:

AF265B-40-22-11#24-60V

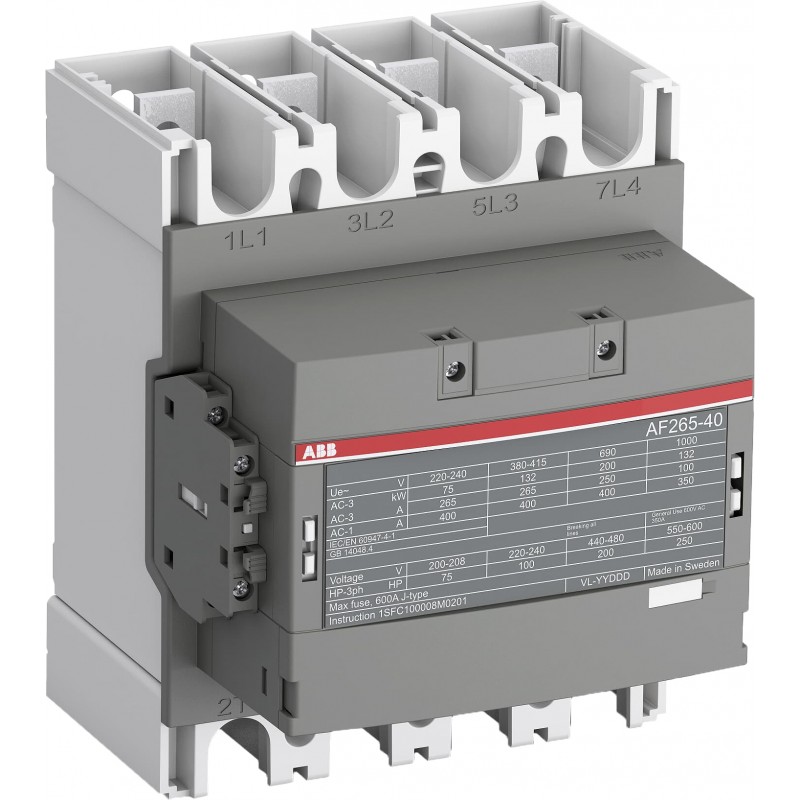

AF265B-40-22-11 Contactor

More details

Categories:

Contactors and overload relays

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Viewed products

Best sellers

▲

More info

▲

Ordering
Minimum Order Quantity	1 piece
Customs Tariff Number	85364900
Popular Downloads
Data Sheet, Technical Information	1SBC100214C0202
Data Sheet, Technical Information (Part 2)	1SAC200017M0002
Instructions and Manuals	1SFC100008M0201
CAD Dimensional Drawing	2CDC001079B0201
Dimensions
Product Net Width	184 mm
Product Net Depth / Length	180 mm
Product Net Height	225 mm
Product Net Weight	5.7 kg
Technical
Number of Main Contacts NO	4
Number of Main Contacts NC	0
Number of Auxiliary Contacts NO	2
Number of Auxiliary Contacts NC	2
Number of Poles	4P
Rated Operational Voltage	Main Circuit 1000 V
Rated Frequency (f)	Main Circuit 50 / 60 Hz
Rated Operational Current AC-1 (I_e)	(1000 V) 40 °C 350 A
	(1000 V) 60 °C 300 A
	(1000 V) 70 °C 240 A
	(690 V) 40 °C 400 A
	(690 V) 60 °C 350 A
	(690 V) 70 °C 290 A
Rated Operational Current AC-3 (I_e)	(415 V) 55 °C 265 A
	(440 V) 55 °C 265 A
	(500 V) 55 °C 250 A
	(690 V) 55 °C 250 A
	(380 / 400 V) 55 °C 265 A
	(220 / 230 / 240 V) 55 °C 265 A
Rated Operational Current DC-1 (I_e)	(100 V) 1 Pole, 40 °C 400 A
	(100 V) 1 Pole, 60 °C 350 A
	(100 V) 1 Pole, 70 °C 290 A
	(110 V) 1-Pole, 40 °C 400 A
	(110 V) 1-Pole, 60 °C 350 A
	(110 V) 1-Pole, 70 °C 290 A
	(110 V) 2 Poles in Series, 40 °C 400 A
	(110 V) 2 Poles in Series, 60 °C 350 A
	(110 V) 2 Poles in Series, 70 °C 290 A
	(110 V) 3 Poles in Series, 40 °C 400 A
	(110 V) 3 Poles in Series, 60 °C 350 A
	(110 V) 3 Poles in Series, 70 °C 290 A
	(175 V) 2 Poles in Series, 40 °C 400 A
	(175 V) 2 Poles in Series, 60 °C 350 A
	(175 V) 2 Poles in Series, 70 °C 290 A
	(200 V) 2 Poles in Series, 40 °C 400 A
	(200 V) 2 Poles in Series, 60 °C 350 A
	(200 V) 2 Poles in Series, 70 °C 290 A
	(220 V) 2 Poles in Series, 40 °C 400 A
	(220 V) 2 Poles in Series, 60 °C 350 A
	(220 V) 2 Poles in Series, 70 °C 290 A
	(220 V) 3 Poles in Series, 40 °C 400 A
	(220 V) 3 Poles in Series, 60 °C 350 A
	(220 V) 3 Poles in Series, 70 °C 290 A
	(260 V) 3 Poles in Series, 40 °C 400 A
	(260 V) 3 Poles in Series, 60 °C 350 A
	(260 V) 3 Poles in Series, 70 °C 290 A
	(300 V) 3 Poles in Series, 40 °C 400 A
	(300 V) 3 Poles in Series, 60 °C 350 A
	(300 V) 3 Poles in Series, 70 °C 290 A
	(340 V) 3 Poles in Series, 40 °C 400 A
	(340 V) 3 Poles in Series, 60 °C 350 A
	(340 V) 3 Poles in Series, 70 °C 290 A
	(350 V) 4 Poles in Series, 40 °C 400 A
	(350 V) 4 Poles in Series, 60 °C 350 A
	(350 V) 4 Poles in Series, 70 °C 290 A
	(400 V) 4 Poles in Series, 40 °C 400 A
	(400 V) 4 Poles in Series, 60 °C 350 A
	(400 V) 4 Poles in Series, 70 °C 290 A
	(440 V) 4 Poles in Series, 40 °C 400 A
	(440 V) 4 Poles in Series, 60 °C 350 A
	(440 V) 4 Poles in Series, 70 °C 290 A
	(72 V) 1-Pole, 40 °C 400 A
	(72 V) 1-Pole, 60 °C 350 A
	(72 V) 1-Pole, 70 °C 290 A
	(72 V) 2 Poles in Series, 40 °C 400 A
	(72 V) 2 Poles in Series, 60 °C 350 A
	(72 V) 2 Poles in Series, 70 °C 290 A
	(72 V) 3 Poles in Series, 40 °C 400 A
	(72 V) 3 Poles in Series, 60 °C 350 A
	(72 V) 3 Poles in Series, 70 °C 290 A
	(90 V) 1 Pole, 40 °C 400 A
	(90 V) 1 Pole, 60 °C 350 A
	(90 V) 1 Pole, 70 °C 290 A
Rated Operational Current DC-3 (I_e)	(110 V) 2 Poles in Series, 40 °C 350 A
	(110 V) 2 Poles in Series, 60 °C 350 A
	(110 V) 2 Poles in Series, 70 °C 290 A
	(110 V) 3 Poles in Series, 40 °C 350 A
	(110 V) 3 Poles in Series, 60 °C 350 A
	(110 V) 3 Poles in Series, 70 °C 290 A
	(220 V) 3 Poles in Series, 40 °C 350 A
	(220 V) 3 Poles in Series, 60 °C 350 A
	(220 V) 3 Poles in Series, 70 °C 290 A
	(72 V) 2 Poles in Series, 40 °C 350 A
	(72 V) 2 Poles in Series, 60 °C 350 A
	(72 V) 2 Poles in Series, 70 °C 290 A
	(72 V) 3 Poles in Series, 40 °C 350 A
	(72 V) 3 Poles in Series, 60 °C 350 A
	(72 V) 3 Poles in Series, 70 °C 290 A
Rated Operational Current DC-5 (I_e)	(110 V) 2 Poles in Series, 40 °C 350 A
	(110 V) 2 Poles in Series, 60 °C 350 A
	(110 V) 2 Poles in Series, 70 °C 290 A
	(110 V) 3 Poles in Series, 40 °C 350 A
	(110 V) 3 Poles in Series, 60 °C 350 A
	(110 V) 3 Poles in Series, 70 °C 290 A
	(220 V) 3 Poles in Series, 40 °C 350 A
	(220 V) 3 Poles in Series, 60 °C 350 A
	(220 V) 3 Poles in Series, 70 °C 290 A
	(72 V) 2 Poles in Series, 40 °C 350 A
	(72 V) 2 Poles in Series, 60 °C 350 A
	(72 V) 2 Poles in Series, 70 °C 290 A
	(72 V) 3 Poles in Series, 40 °C 350 A
	(72 V) 3 Poles in Series, 60 °C 350 A
	(72 V) 3 Poles in Series, 70 °C 290 A
Rated Operational Power AC-3 (P_e)	(415 V) 132 kW
	(380 / 400 V) 132 kW
	(220 / 230 / 240 V) 75 kW
Rated Breaking Capacity AC-3e	8.5 x Ie AC-3e
Rated Making Capacity AC-3	10 x Ie AC-3
Rated Making Capacity AC-3e	12 x Ie AC-3e
Rated Short-time Withstand Current Low Voltage (I_cw)	at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 400 A
	at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 1224 A
	at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 2650 A
	at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 2120 A
	at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 865 A
Rated Insulation Voltage (U_i)	acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V
	acc. to UL/CSA 600 V
Maximum Electrical Switching Frequency	(AC-1) 300 cycles per hour
	(AC-3) 300 cycles per hour
Mechanical Durability	5 million
Maximum Mechanical Switching Frequency	300 cycles per hour
Coil Operating Limits	(acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C)
Rated Control Circuit Voltage (U_c)	50 Hz / 60 Hz 24 ... 60 V
	DC Operation 20 ... 60 V
Coil Consumption	Holding at Max. Rated Control Circuit Voltage 50 Hz 10 V·A
	Holding at Max. Rated Control Circuit Voltage 60 Hz 10 V·A
	Holding at Max. Rated Control Circuit Voltage DC 2.9 V·A
	Holding at Max. Rated Control Circuit Voltage DC 2.9 W
	Pull-in at Max. Rated Control Circuit Voltage 50 Hz 695 V·A
	Pull-in at Max. Rated Control Circuit Voltage 60 Hz 695 V·A
	Pull-in at Max. Rated Control Circuit Voltage DC 980 V·A
	Pull-in at Max. Rated Control Circuit Voltage DC 980 W
Power Loss	32 W
	at Rated Operating Conditions per Pole 32 W
Connecting Capacity Main Circuit	Flexible 2 x 70 ... 185 mm²
	Rigid Cu-Cable 2 x 70 ... 185 mm²
Connecting Capacity Auxiliary Circuit	Flexible with Ferrule 2x 0.75 ... 2.5 mm²
	Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm²
	Flexible 2x0.75 ... 2.5 mm²
	Solid 2 x 1 ... 4 mm²
	Stranded 2 x 1 .... 4 mm²
Connecting Capacity	Flexible 2 x 70 ... 185 mm²
	Rigid Cu-Cable 2 x 70 ... 185 mm²
Degree of Protection	acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP40
	acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
	acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Tightening Torque	Cable Lug 9 N·m
	Main Circuit 22 ... 43 N·m
Terminal Type	Main Circuit: Bars
Product Name	Block Contactor
Technical UL/CSA
Horsepower Rating NEMA	(200 V AC) Three Phase 75 Hp
	(230 V AC) Three Phase 100 Hp
	(460 V AC) Three Phase 200 Hp
	(575 V AC) Three Phase 200 Hp
Maximum Operating Voltage UL/CSA	Main Circuit 600 V
General Use Rating UL/CSA	(1000 V AC) 350 A
Horsepower Rating UL/CSA	(200 ... 208 V AC) Three Phase 40 Hp
	(200 V AC) Three Phase 75 hp
	(208 V AC) Three Phase 75 hp
	(220 ... 240 V AC) Three Phase 40 Hp
	(220 ... 240 V AC) Three Phase 100 hp
	(440 ... 480 V AC) Three Phase 100 Hp
	(440 ... 480 V AC) Three Phase 200 hp
	(550 ... 600 V AC) Three Phase 125 Hp
	(550 ... 600 V AC) Three Phase 250 hp
Environmental
Ambient Air Temperature	Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C
	Close to Contactor for Storage -40 ... 70 °C
Maximum Operating Altitude Permissible	Without Derating 3000 m
Material Compliance
Conflict Minerals Reporting Template (CMRT)	9AKK108467A5658
REACH Declaration	2CMT2021-006202
RoHS Declaration	2CMT2021-006277
Toxic Substances Control Act - TSCA	2CMT2023-006525
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
ABB EcoSolutions
ABB EcoSolutions	Yes
ABB Site Meeting Group Waste To Landfill Target	Non-hazardous waste is sent to a landfill, where there is no alternative option available within 100km of a facility
End Of Life Disassembling Instructions	1SFC100112M0002
Environmental Product Declaration - EPD	1SFC100104D0201
Improved Energy Efficiency for Customers	Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line
Recyclability Rate of the Product acc. to EN45555	Design for Closing Resource Loops - Standard EN45555 - 76.3 %
