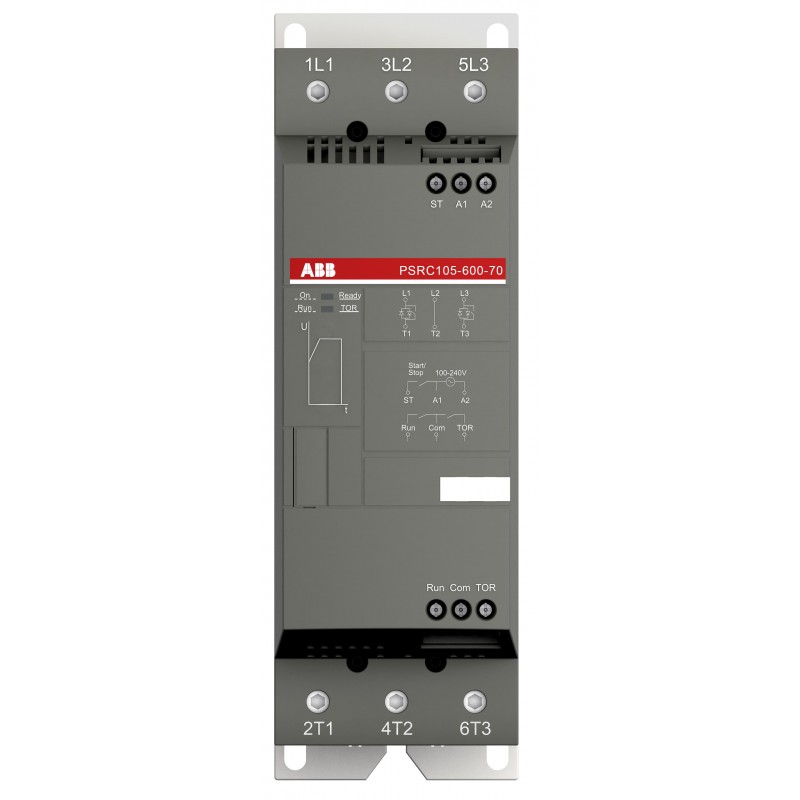

1SFA896215R7000 ABB PSRC105-600-70 SOFT COMPRESSOR ARR.
1SFA896215R7000
ABB
PSRC105-600-70 SOFT COMPRESSOR ARR.
PSRC105-600-70 ARR. SOFT FOR COMPRESSOR
PSRC105-600-70 Softstarter - 105 A - 208 ... 600 V AC
Low-voltage industrial components > Soft starter
Soft Starters
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Related products
▲Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85371091 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SFC132012C0201 |
| Instructions and Manuals | 1SFC132044M0001 |
| Instructions and Manuals (Part 3) | 1SFC132060M0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| EPLAN Data | 9AAC172778_EPLAN |
| Wiring Diagram | N/A |
| Dimensions | |
| Product Net Width | 180 mm |
| Product Net Height | 220 mm |
| Product Net Depth / Length | 70 mm |
| Product Net Weight | 2.1 kg |
| Technical | |
| Rated Operational Voltage | 208 ... 600 V AC |
| Rated Control Supply Voltage (Us) | 100 ... 240 V AC |
| Rated Control Circuit Voltage (Uc) | 24 V DC |
| Rated Frequency (f) | 50/60 Hz |
| Main Circuit 50 / 60 Hz | |
| Rated Operational Power - In-Line Connection (Pe) | (230 V) 30 kW |
| (400 V) 55 kW | |
| (500 V) 55 kW | |
| Rated Operational Current - In-Line Connection (Ie) | 105 A |
| Service Factor Percentage | 100 % |
| Overload Protection | Recommended MS495 80 ... 100 |
| Integrated Electronic Overload | No |
| Starting Capacity at Maximum Rated Current Ie | 4xIe for 6s |
| Ramp Time | Fixed setting |
| Fixed setting | |
| Initial Voltage During Start | Fixed setting |
| Step Down Voltage Special Ramp | Fixed setting |
| Current Limit Function | No |
| Switch for Inside Delta Connection | No |
| Run Signal Relay | Yes |
| By-pass Signal Relay | Yes |
| Fault Signal Relay | No |
| Overload Signal Relay | No |
| Signal Indication Completed Start Ramp (LED) | Green |
| Signal Indication Ready to Start/Standby ON (LED) | Green |
| Signal Indication Running R (LED) | Green |
| Signal Indication Ramping Up/Down (LED) | Green |
| Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time | 10 |
| Communication | FiledBusPlug(Optional) |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10 |
| Terminal Type | Main Circuit: Bars |
| Connecting Capacity Main Circuit | Rigid 1 x 0.75 ... 2.5 mm² |
| Connecting Capacity Supply Circuit | Rigid 2 x 0.75 ... 1.5 |
| Tightening Torque | Control Circuit 0.6 N·m |
| Main Circuit 8 N·m | |
| Supply Circuit 0.6 N·m | |
| Product Main Type | PSRC105 |
| Function | Soft start with voltage ramp |
| Soft stop with voltage ramp | |
| Technical UL/CSA | |
| Horsepower Rating UL/CSA | (200 ... 208 V AC) Three Phase 30 Hp |
| (220 ... 240 V AC) Three Phase 40 Hp | |
| (440 ... 480 V AC) Three Phase 75 Hp | |
| (550 ... 600 V AC) Three Phase 100 Hp | |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V |
| Tightening Torque UL/CSA | Control Circuit 5.3 in·lb |
| Main Circuit 70.8 | |
| Supply Circuit 5.3 in·lb | |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +60 °C |
| Storage -40 ... +70 °C | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006481 |
| RoHS Declaration | 2CMT2022-006500 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 1caf577d-084a-43ed-a6ea-ef420754c09b China |
| Simplified SCIP | be1ef16f-bfa2-486c-b0de-8799aca7c457 Norway |
| 2de54615-09a7-41da-b849-3fc082f51eaf Finland | |
| 40e06c20-0396-49fc-aef0-e7508b1f9f04 France | |
| 916c85ba-551b-4ba1-98d7-d96fdf82c4eb Belgium | |
| 35bb92d4-b0f7-4f57-b703-43e995762dc7 Portugal | |
| 2f4494d4-43a2-42d5-b74a-73a61fcbb3c8 Poland | |
| a8ed8939-a8dc-4c26-9571-5ce03e89c729 Denmark | |
| 92d46254-fb63-4085-9f7f-12d0d8edad79 Germany | |
| 01f9a770-a994-49a4-b084-da16b387f1cb Germany | |
| e9445149-3d32-406e-b2f2-a25a781f3eca Netherlands | |
| 0bcacac1-8e50-48c2-9e82-93ed5964a50c Poland | |
| 43187313-2db0-4d8d-9b8f-615558637b3e Bulgaria | |
| cd34d237-04f2-436e-bad7-330255e424b2 Germany | |
| 709894ec-e748-496a-aa6d-c1133247db45 Germany | |
| c3166b80-03af-45aa-be08-8605f75bdabf Germany | |
| fcf67573-ced7-4a74-b157-e203c31cf0dd Estonia | |
| 57855ce1-4092-4c59-93c3-d6d64cb0e0db Sweden | |
| 4ab3076a-3026-42cb-833d-476408a075f8 Poland | |
| 37d21546-1696-4012-bd32-8eefc2f7c749 France | |
| d741e88f-3e4a-4248-aea8-1524869cf40a Sweden | |
| 6f876fe0-b961-433c-a7b6-26dff87361b6 Hungary | |
| 2dad3729-dfb9-4a90-b1b0-a610508bc5bd Spain | |
| 150aa4c2-09e4-48ed-9fd6-a849f6084946 Belgium | |
| 77d85f98-ec4c-4929-a759-db02b69a0722 Croatia | |
| 567d2833-12b0-497f-bfcf-c4b711adbf09 Czech Republic | |
| c0b1ca98-f5e5-4a94-aa6c-778bb01aa03f Hungary | |
| e01e3274-e1f1-4964-9029-1b7dc891883e Greece | |
| Toxic Substances Control Act - TSCA | 2CMT2023-006524 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| CQC Certificate | CQC2008010304295498 |
| Declaration of Conformity - CCC | 2020980304001090 |
| Declaration of Conformity - CE | 2CMT003878 |
| Container Information | |
| Package Level 1 Width | 195 mm |
| Package Level 1 Depth / Length | 86 mm |
| Package Level 1 Height | 230 mm |
| Package Level 1 Gross Weight | 2.3 kg |
| Package Level 1 EAN | 7320500465592 |
| Package Level 1 Units | box 1 piece |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 7 | EC000640 - Soft starter |
| ETIM 8 | EC000640 - Soft starter |
| ETIM 9 | EC000640 - Soft starter |
| eClass | V11.0 : 27370907 |
| UNSPSC | 39121521 |
| IDEA Granular Category Code (IGCC) | 4740 >> Soft starter |
| Feature Name | Feature Value |
|---|---|
| Rated operation current Ie at 40 °C Tu (EF007039) | 105 A |
| Rated operating voltage Ue (EF002418) | 208 V |
| Rated power three-phase motor, inline, at 230 V (EF007053) | 30 kW |
| Rated power three-phase motor, inline, at 400 V (EF007054) | 55 kW |
| Internal bypass (EF009214) | Yes |
| With display (EF000458) | No |
| Torque control (EF009215) | No |
| Rated surrounding temperature without derating (EF007074) | 40 °C |
| Rated control supply voltage AC 50 Hz (EF003978) | 100 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 100 V |
| Voltage type for actuating (EF008242) | AC |
| Integrated motor overload protection (EF007297) | No |
| Release class (EF006668) | Adjustable |
| Degree of protection (IP) (EF005474) | IP10 |
| Degree of protection (NEMA) (EF011959) | 1 |
