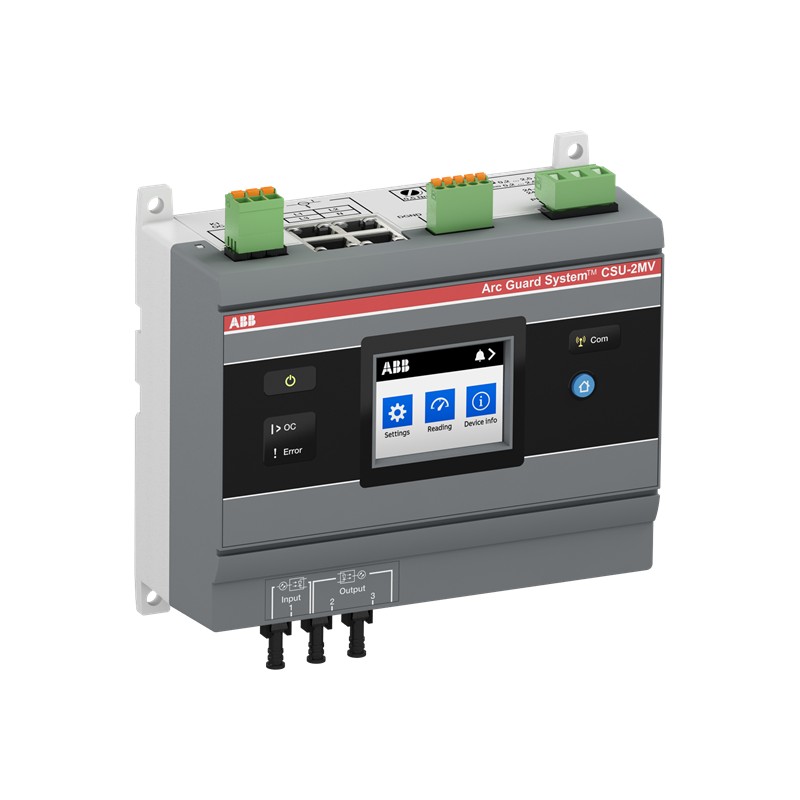

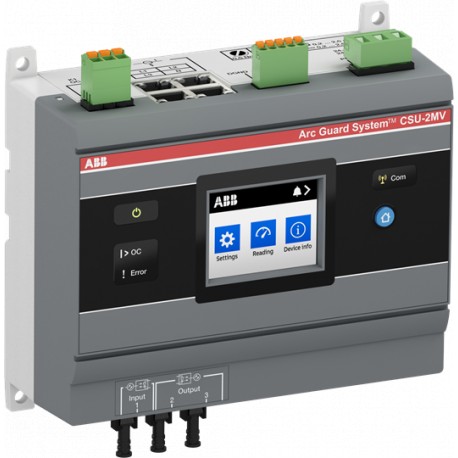

1SFA664002R8001 ABB CSU-2MV CORR MT SENSOR UNIT
1SFA664002R8001
ABB
CSU-2MV CORR MT SENSOR UNIT
CSU-2MV Current Sensing Unit
Relays > Timer relay
Electronic motor protection relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 2AGS2022-006202 |
| RoHS Declaration | 2AGS2022-006277-RoHS |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 2CMT001035D0902a |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +70 °C |
| Storage -25 ... +85 °C | |
| Ordering | |
| EAN | 7320500524930 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Width | 155.5 mm |
| Product Net Height | 141.1 mm |
| Product Net Depth / Length | 63.8 mm |
| Product Net Weight | 0.42 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 203 mm |
| Package Level 1 Height | 126 mm |
| Package Level 1 Depth / Length | 206 mm |
| Package Level 1 Gross Weight | 0.58 kg |
| Package Level 1 EAN | 7320500524930 |
| Additional Information | |
| Product Main Type | TVOC-2 |
| Product Name | Current Sensing Unit |
| Suitable For | TVOC-2 |
| Technical | |
| Mounting Type | Wall mounted or DIN |
| Number of Auxiliary Contacts CO (SPDT) | 1 |
| Rated Operational Voltage | 24 ... 240 V AC |
| 24 ... 250 V DC | |
| Terminal Type | Screw Terminals |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SFC170001C0201 |
| Declaration of Conformity - CE | 1SFC170021D2701 |
| Instructions and Manuals | 1SFC170020M0201 |
| External Classifications and Standards | |
| ETIM 9 | EC001439 - Timer relay |
| ETIM 10 | EC001440 - Current monitoring relay |
| UNSPSC | 39122331 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.0 : 27371605 |
| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Screw connection |
| Function delay-on energization (EF003374) | No |
| Function delay on de-energization (EF003401) | No |
| Function floating contact on energization (EF003378) | No |
| Function floating contact on de-energization (EF003402) | No |
| Function star-delta (EF003380) | No |
| Function pulse shaping (EF003403) | No |
| Remote operation possible (EF003361) | Yes |
| Suitable as remote control (EF003362) | No |
| Pluggable on auxiliary contact block (EF006952) | No |
| Voltage type for actuating (EF008242) | AC/DC |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | Yes |
| Width (EF000008) | 155.5 mm |
| Height (EF000040) | 141.1 mm |
| Depth (EF000049) | 63.8 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MOTOR PROTECTION EN.pdf | 70 Mbytes |
|
