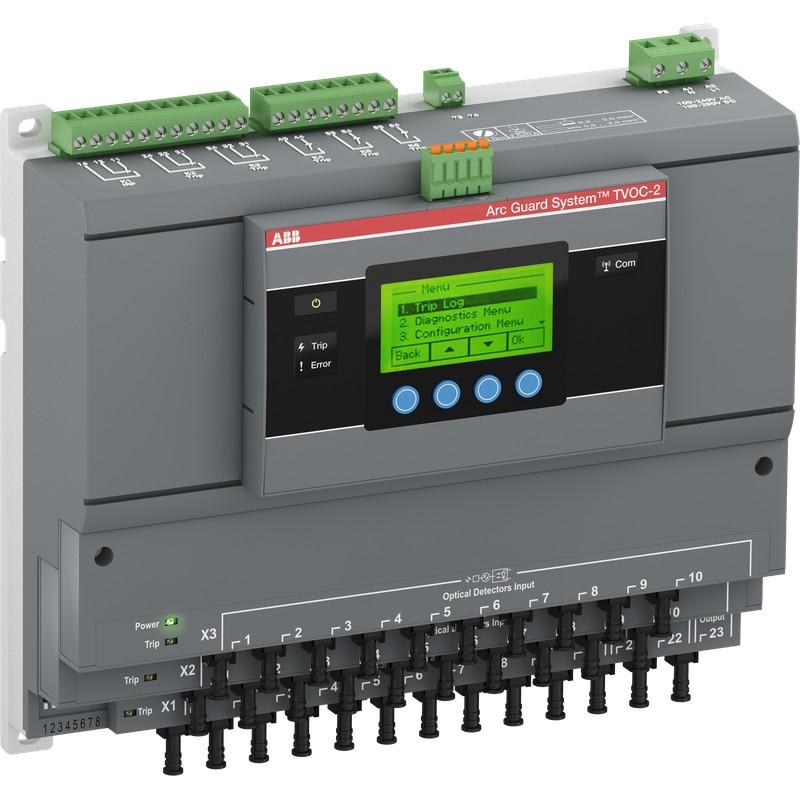

1SFA664001R1004 ABB TVOC-2-48-C MON. MODBUS INTERNAL ARC
1SFA664001R1004
ABB
TVOC-2-48-C MON. MODBUS INTERNAL ARC
TVOC-2-48-C Arc Monitor
Low-voltage industrial components > Arc detection system
Electronic motor protection relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 2AGS2022-006202 |
| RoHS Declaration | 2AGS2022-006277-RoHS |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 2CMT001035D0902a |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +55 °C |
| Storage -25 ... +55 °C | |
| Environmental Information | 1SAC200041H0003 |
| Ordering | |
| E-Number (Finland) | 2712558 |
| E-Number (Norway) | 4116457 |
| E-Number (Sweden) | 2800000 |
| EAN | 7320500511749 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Width | 210 mm |
| Product Net Height | 230 mm |
| Product Net Depth / Length | 80 mm |
| Product Net Weight | 1.2 kg |
| Container Information | |
| Package Level 1 Units | 1 box |
| Package Level 1 Width | 260 mm |
| Package Level 1 Height | 125 mm |
| Package Level 1 Depth / Length | 300 mm |
| Package Level 1 Gross Weight | 1.27 kg |
| Package Level 1 EAN | 7320500511749 |
| Additional Information | |
| Additional Information | ARC MONITOR TVOC-2 |
| Product Main Type | TVOC-2 |
| Product Name | Arc Monitor |
| Suitable For | TVOC-2 |
| Technical | |
| Mounting Type | Wall mounted or DIN |
| Number of Auxiliary Contacts CO (SPDT) | 3 |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 3 |
| Power Loss | 1 W |
| Rated Operational Voltage | 24 ... 48 V DC |
| Terminal Type | Screw Terminals |
| Certificates and Declarations | |
| BV Certificate | 39407_B1 |
| CSA Certificate | UL_20110511-E155370 |
| cULus Certificate | UL_20110511-E155370 |
| Data Sheet, Technical Information | 1SFC170001C0201 |
| Declaration of Conformity - CE | 2CMT005420 |
| DNV Certificate | DNV_E-12926 |
| EAC Certificate | 9AKK106713A1450 |
| UL Certificate | UL_20110511-E155370 |
| Instructions and Manuals | 1SFC170011M0201 |
| Instructions and Manuals (Part 2) | 1SFC170011M0201 |
| External Classifications and Standards | |
| ETIM 9 | EC002911 - Arc detection and mitigation system |
| ETIM 10 | EC002911 - Arc detection and mitigation system |
| IDEA Granular Category Code (IGCC) | 3594 >> Interface module |
| Object Classification Code | B |
| UNSPSC | 32151802 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.0 : 27142214 |
| Feature Name | Feature Value |
|---|---|
| Rated control supply voltage DC (EF003980) | 24 V |
| Voltage type for actuating (EF008242) | DC |
| Mounting method (EF000003) | Surface mounting |
| Type of electric connection (EF003961) | Screw connection |
| Number of inputs (EF000318) | 12 |
| Number of contacts as normally open contact (EF008256) | 3 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as change-over contact (EF008257) | 3 |
| Height (EF000040) | 230 mm |
| Width (EF000008) | 210 mm |
| Depth (EF000049) | 80 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MOTOR PROTECTION EN.pdf | 70 Mbytes |
|
| 1SFA664001R1004 1SFA664001R1004 EN_1SFA664001R1004.pdf | 378 Kbytes |
|
