ABBCommand and signaling1SFA619102R1218 ABB CP3-12C-10

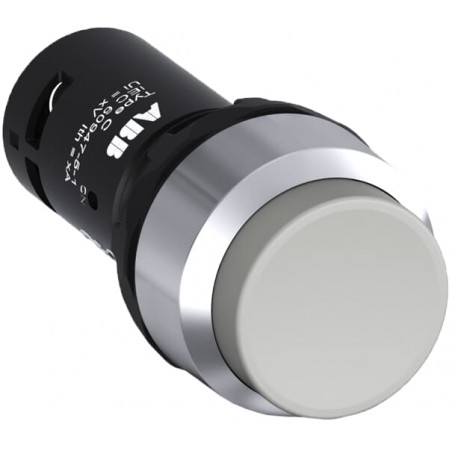

ABB 1SFA619102R1218 1SFA619102R1218 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SFA619102R1218 ABB CP3-12C-10

Reference: 1SFA619102R1218

Manufacturer: ABB

Description:

CP3-12C-10
PUSHBUTTON CP3-12C-10

Categories:

  • ABB > Command and signaling

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

b'

General Information

Extended Product Type:
CP3-12C-10
Product ID:
1SFA619102R1218
ABB Type Designation:
CP3-12C-10
EAN:
7320500552889
Catalog Description:
PUSHBUTTON CP3-12C-10
Long Description:
PUSHBUTTON CP3-12C-10
\n

Ordering

EAN:
7320500552889
Minimum Order Quantity:
10 piece
Customs Tariff Number:
8536501999

Dimensions

Product Net Width:
0.03 m
Product Net Height:
0.03 m
Product Net Depth / Length:
0.06 m
Product Net Weight:
0.018 kg

Container Information

Package Level 1 Units:
bag 10 piece
Package Level 1 Width:
0.1 m
Package Level 1 Height:
0.03 m
Package Level 1 Depth / Length:
0.1 m
Package Level 1 EAN:
7320500474075

Environmental

Ambient Air Temperature:
Operation -25 ... +70 °C

Storage -40 ... +85 °C
RoHS Status:
Following EU Directive 2015/863 July 22, 2019 (RoHS 3)

Additional Information

Actuator Type:
Extended
Bezel Material:
Black Plastic
Block:
1NO
Color:
Clear
Connection Type:
Screw Clamp
Degree of Protection:
Front IP66

Front IP67

Front IP69K

Terminals IP20
Function:
Momentary
Illumination:
Illuminated
Lamp Type:
LED 110-130V AC/DC
Mechanical Durability:
0.5 million
Number of Auxiliary Contacts NC:
0
Number of Auxiliary Contacts NO:
1
Order Multiple:
10 piece
Product Main Type:
CP3
Product Name:
Pushbutton
Product Range:
Compact
Product Type:
CP
Rated Frequency (f):
50 / 60 Hz
Rated Operational Current AC-15 (Ie):
(220 / 240 V) 1 A
Rated Operational Current DC-13 (Ie):
(24 V) 0.3 A

(125 V) 0.2 A
Rated Operational Voltage:
110 ... 130 V AC/DC
RoHS Date:
0626 5

Certificates and Declarations (Document Number)

CCC Certificate:\n2010010305427787
CQC Certificate:\nCQC2003010305054693
cURus Certificate:\nUL_E496500-20171020
Data Sheet, Technical Information:\n1SFC151007C02__
Declaration of Conformity - CCC (CCC):\n2020980305001187
Declaration of Conformity - CE:\n2CMT2015-005451
DNV GL Certificate:\n9AKK107046A3749
Instructions and Manuals:\n1SFC151011M0201
RoHS Information:\n2CMT2015-005451

Classifications

ETIM 4:
EC002024 - Accessories for control circuit devices
ETIM 5:
EC001028 - Push button, complete
ETIM 6:
EC001028 - Push button, complete
ETIM 7:
EC001028 - Push button, complete
Object Classification Code:
S
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
\n
'

DATASHEET - PDF

Title
Size
Type
1SFA619102R1218 1SFA619102R1218 EN_1SFA619102R1218.pdf
158 Kbytes
PDF CATALOG PILOT DEVICES EN
40 Mbytes
