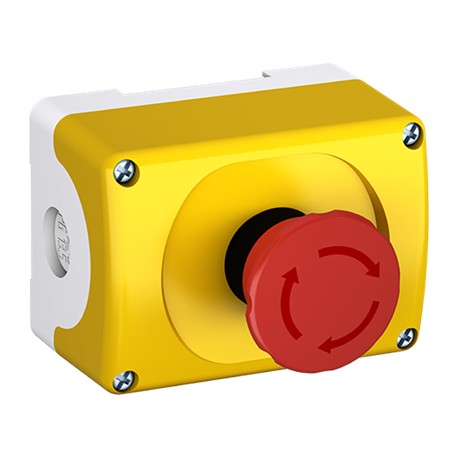

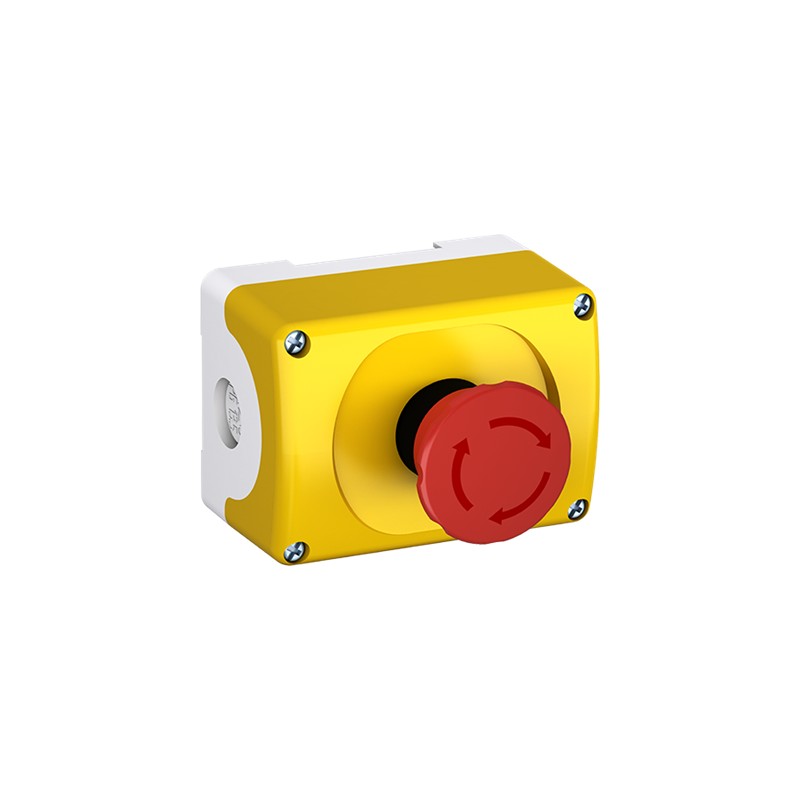

1SFA611821R1042 ABB POS-BOX MEPY1-1042
1SFA611821R1042
ABB
POS-BOX MEPY1-1042
MEPY1-1042 Enclosure
Low-voltage industrial components > Control circuit devices combination in enclosure
Command and signaling
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 8538909999 |
| Product Main Type | MEPY1 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SFC151007C02__ |
| Instructions and Manuals | 1SFC151011M0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 0.101 m |
| Product Net Depth / Length | 0.109 m |
| Product Net Height | 0.075 m |
| Product Net Weight | 0.235 kg |
| Technical | |
| Color | Yellow/Light grey |
| Enclosure Type NEMA | Type1 |
| Type12 | |
| Type13 | |
| Type3R | |
| Type4 | |
| Type4X | |
| Housing Material | Plastic |
| Number of Auxiliary Contacts NC | 2 |
| Rated Operational Voltage | 24 ... 690 V AC/DC |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +70 °C |
| Storage -40 ... +85 °C | |
| Degree of Protection | Front IP66 |
| Housing IP66 | |
| Terminals IP20 | |
| Material | Plastic |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006479 |
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE Category | Product Not in WEEE Scope |
| Certificates and Declarations | |
| CQC Certificate | CQC2005010304154103 |
| cULus Certificate | 9AKK107046A9925 |
| Declaration of Conformity - CCC | 2020980305001528 |
| Declaration of Conformity - CE | 2CMT2015-005444 |
| Declaration of Conformity - UKCA | 2CMT2020-006122 |
| DNV GL Certificate | E-14107 |
| EAC Certificate | EAC RU C-CN.ME77.B.00537/19 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 0.113 m |
| Package Level 1 Depth / Length | 0.129 m |
| Package Level 1 Height | 0.08 m |
| Package Level 1 Gross Weight | 0.355 kg |
| Package Level 1 EAN | 7320500513200 |
| External Classifications and Standards | |
| eClass | V11.0 : 27371216 |
| E-Number (Finland) | 2313729 |
| E-Number (Sweden) | 3705824 |
| ETIM 6 | EC000225 - Control circuit devices combination in enclosure |
| ETIM 7 | EC000225 - Control circuit devices combination in enclosure |
| ETIM 8 | EC000225 - Control circuit devices combination in enclosure |
| ETIM 9 | EC000225 - Control circuit devices combination in enclosure |
| UNSPSC | 39121326 |
| Feature Name | Feature Value |
|---|---|
| Number of command positions (EF001372) | 1 |
| Number of push buttons (EF005558) | 0 |
| Number of indicator lights (EF001965) | 0 |
| Number of key switches (EF005590) | 0 |
| Number of selector switches (EF005567) | 0 |
| Number of mushroom-shaped push-buttons (EF006670) | 0 |
| Suitable for emergency stop (EF001433) | Yes |
| Rated control supply voltage AC 50 Hz (EF003978) | 24 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 24 V |
| Colour housing cover (EF001373) | Yellow |
| Housing material (EF001596) | Plastic |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 2 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Degree of protection (IP) (EF005474) | IP66 |
| Degree of protection (NEMA) (EF011959) | 4X |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PILOT DEVICES EN.pdf | 40 Mbytes |
|
| 1SFA611821R1042 1SFA611821R1042 EN_1SFA611821R1042.pdf | 229 Kbytes |
|
